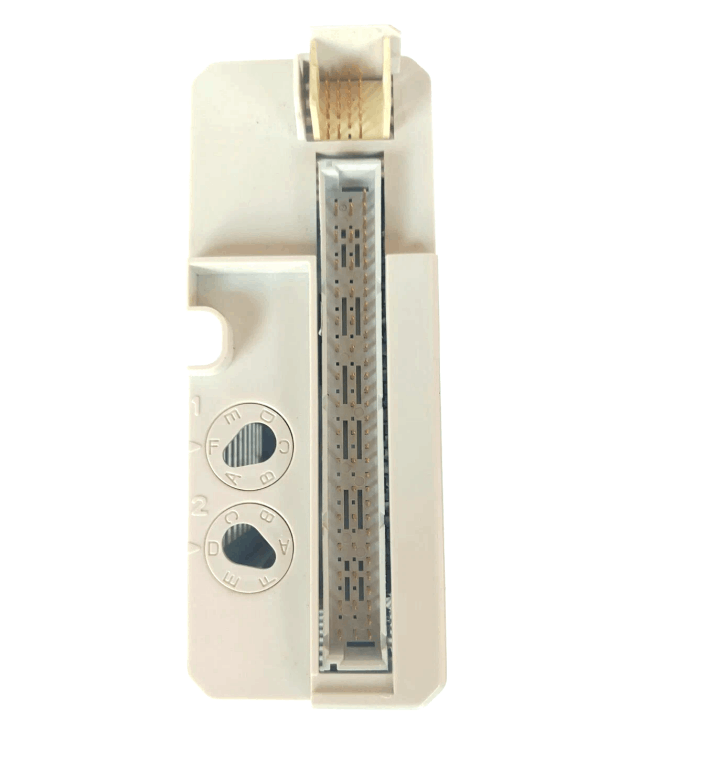

ABB AI880A 3BSE039293R1 Analog Input Module
Item Number:AI880A 3BSE039293R1
Brand: ABB
Lead Time: In stock
Description: Analog Input Module
Payment: T/T
Product Description
ABB AI880A 3BSE039293R1 is an analog input module designed for single and redundant configurations. The module has 8 current input channels with an input resistance of 250 ohms. It can distribute external transmitter power to each channel, providing an easy way to connect 2-wire or 3-wire transmitters, while monitoring the transmitter power supply and limiting the current. All 8 channels are isolated from the module bus as a group, and the module power is provided by the 24V power supply on the module bus. In addition, the module complies with NAMUR recommendation standard NE43 and supports configurable over-range and under-range limits.
Function & Features
- 8 channels for 0...20 mA, 4...20 mA, single ended unipolar inputs
- Single or redundant configuration
- 1 group of 8 channels isolated from ground
- 12 bit resolution
- Loop Supervised DI function
- Configurable alarm limit for field power outputs
- Configurable over/under range for current inputs
- Current limited transmitter supply per channel
Specifications
| Specification | Details |
|---|---|
| Product Model | ABB AI880A 3BSE039293R1 |
| Type | Analog Input Module |
| Signal Specification | 0..20 mA, 4..20 mA |
| Number of Channels | 8 |
| Signal Type | Unipolar Single Ended |
| Resolution | 12 bits |
| Input Impedance | 250 Ω with shunt stick TY801 (at current input) |
| Isolation | Groupwise isolated from ground |
| Power Supply | Powered by 24V on the ModuleBus |
| Compliance | Complies with the NAMUR recommendation NE43 |
| Certification | Certified for SIL3 according to IEC 61508; Certified for Category 4 according to EN 954 - 1 |
