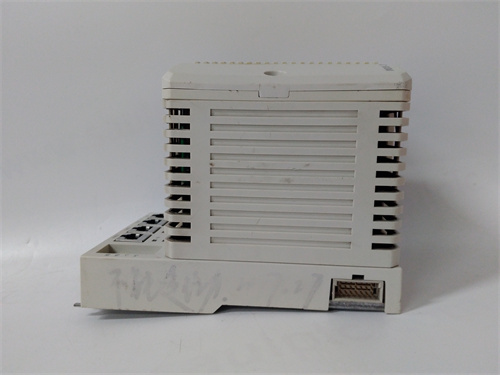

ABB PM864AK01 Product Overview

ABB PM864AK01 is a high-performance industrial automation controller.The following is a detailed introduction to it.

Basic information

Product type and series:PM864AK01 is the core controller unit of ABB AC 800M series,designed for industrial automation,suitable for medium and large industrial applications.

Model:3BSE018161R1

Hardware configuration

Processor:Uses high-performance PowerPC or Intel Xeon processor,with a main frequency of 400MHz or higher.

Memory:Usually equipped with enough RAM to support complex control tasks.Some say that it has built-in 512MB SDRAM and 256MB Flash storage space,and some say that it is equipped with 32M memory capacity.

Interface:Provides multiple Ethernet ports(RJ45),serial ports(RS232,RS485)and CompactFlash interfaces.Among them,the baseboard has two RJ45 Ethernet ports(CN1,CN2)for connecting to the control network,and two RJ45 serial ports(COM3,COM4),one is an RS-232C port with a modem control signal,and the other port is isolated and used to connect the configuration tool.

Functional features

High-performance computing capability:supports complex control logic and real-time data processing.

High reliability:With redundant design and fault self-diagnosis function to ensure the stable operation of the system.In order to improve the reliability of the system,the controller is usually designed with redundant functions to prevent single point failures and ensure continuous operation of the system.

Flexibility:Supports multiple programming languages​​and rich I/O modules to meet different industrial needs.The controller usually supports multiple programming languages​​and development tools,such as LD(ladder diagram),ST(structured text),FBD(function block diagram)under the IEC 61131-3 standard.

Ease of use:Provides an intuitive user interface and rich software functions for easy operation and maintenance.

Real-time control:With real-time control capabilities,it can handle real-time feedback and dynamic control requirements to ensure that the system operates within predetermined parameters.

Communication capability:supports multiple communication protocols,such as Modbus,Profibus,Ethernet,etc.,and can exchange and communicate data with other devices,sensors,actuators and monitoring systems,which helps to simplify the network structure and improve the flexibility of the system.

Data storage and processing:Able to process and store process-related data,such as historical data,event records,etc.,for subsequent analysis and maintenance.

Application areas

Industrial automation:widely used in manufacturing,energy industry,process control and other fields,used in various industrial automation control systems,such as production lines,packaging machinery,printing machinery,etc.

Control system integration:used to build automated production lines and control system integration.

Distributed control system(DCS):In large-scale industrial processes,it can be used in DCS to achieve distributed control and monitoring.

Energy management:In energy production and distribution systems,it can be used for monitoring and control of resources such as electricity,water,and gas.

Building automation:In building automation systems,it can be used to control lighting,air conditioning,security and other equipment.
