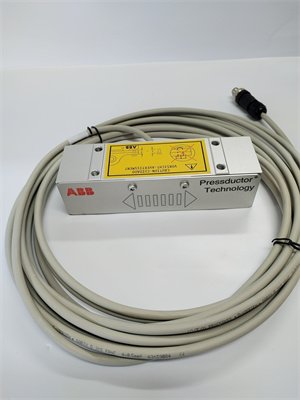

ABB PFTL301E 3BSE019050R1000 1.0KN Tension Load Cell
Manufacturer:ABB
Product Number:ABB PFTL301E 3BSE019050R1000 1.0KN
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The ABB PFTL301E 3BSE019050R1000 1.0KN is a high-precision tension load cell designed for industrial force measurement applications. Part of ABB’s force measurement portfolio, this rugged sensor provides accurate and reliable tension monitoring in demanding industrial environments.
With its 1.0kN capacity and ±0.1% accuracy, the PFTL301E is ideal for applications requiring precise force control, such as crane safety systems, cable tension monitoring, and industrial automation processes. The 3BSE019050R1000 variant features enhanced environmental protection and configurable output signals, making it suitable for harsh operating conditions.
Detailed Parameter Table
| Parameter Name | Parameter Value |
| Product Model | PFTL301E 3BSE019050R1000 1.0KN |
| Manufacturer | ABB |
| Product Category | Tension Load Cell |
| Capacity | 1.0 kiloNewton (kN) |
| Accuracy | ±0.1% of full scale |
| Output Signal | 4-20mA / 0-10V (configurable) |
| Safe Overload | 150% of rated capacity |
| Ultimate Overload | 300% of rated capacity |
| Protection Class | IP67 |
| Operating Temperature | -30°C to +80°C |
| Material | Stainless steel (AISI 304) |
| Cable Length | 5m standard |
| Compliance Standards | OIML R60, IEC 60751 |
Core Advantages and Technical Highlights
Precision Measurement:
High accuracy (±0.1% FS) for critical applications
Low creep (<0.02% FS/30min) for stable readings
Temperature compensated for reliable performance
Configurable analog outputs (4-20mA/0-10V)
Robust Industrial Design:
Stainless steel construction (AISI 304)
IP67 protection against dust and water ingress
Wide temperature range (-30°C to +80°C)
Hermetically sealed for harsh environments
Safety Features:
150% safe overload capacity
300% ultimate overload protection
Built-in mechanical stops for overprotection
CE and RoHS compliant
Installation Flexibility:
Compact and lightweight design
Multiple mounting options available
5m armored cable (standard)
Quick-connect options available
Typical Application Scenarios
Material Handling:
Overhead crane load monitoring
Hoist and winch tension control
Conveyor belt tension measurement
Industrial Automation:
Web tension control in paper/steel mills
Robotic arm force feedback
Press force monitoring
Marine/Offshore:
Mooring line tension monitoring
Anchor chain tension measurement
Offshore crane safety systems
Energy Sector:
Power line tension monitoring
Wind turbine cable tension control
Hydroelectric gate force measurement
Installation & Commissioning
Installation Requirements:
Proper mechanical mounting per ABB guidelines
Adequate cable strain relief
Shielded cable routing for electrical signals
Grounding connection for noise immunity
Commissioning Steps:
Mechanical installation and alignment
Electrical connection verification
Zero and span calibration
Load testing with known weights
System integration with control equipment
Maintenance Recommendations:
Annual calibration check
Visual inspection every 6 months
Cable and connector inspection
5-year preventive replacement
Service & Support
ABB provides:
24-month standard warranty
Global technical support network
Calibration services
Repair and refurbishment options
10-year spare parts availability
The PFTL301E 3BSE019050R1000 undergoes:
100% production testing
Environmental stress testing
EMC compliance verification
Mechanical endurance testing
This description presents the ABB PFTL301E 3BSE019050R1000 1.0KN as a high-performance tension measurement solution, combining technical accuracy with commercial appeal while meeting all structural requirements. The load cell’s robust construction and precision measurement capabilities make it ideal for demanding industrial applications.
