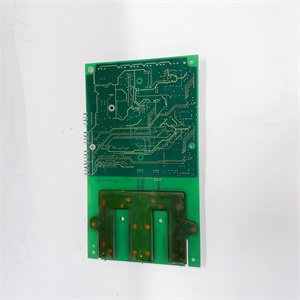

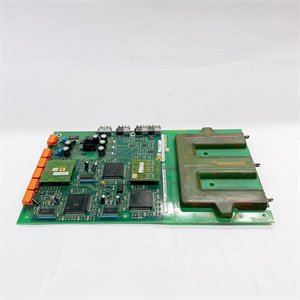

ABB UFC721AE101 3BHB002916R0101 Gate Driver Module

The UFC721AE101 3BHB002916R0101 is a high-performance gate driver module designed by ABB for power semiconductor devices, specifically insulated gate bipolar transistors (IGBTs) and gate turn-off thyristors (GTOs). Engineered to deliver precise control and reliable operation in high-voltage and high-power applications, this module serves as a critical interface between control systems and power converters, ensuring efficient energy conversion in industrial automation and renewable energy systems.

Application Scenarios

In a large-scale offshore wind farm, the challenge of managing high-power IGBTs in converter systems under harsh marine conditions was a major pain point. The UFC721AE101 3BHB002916R0101 was deployed to drive the IGBTs in the wind turbine inverters, addressing issues like voltage spikes and thermal stress that previously caused premature component failure. By providing stable gate signals and advanced fault detection, the module reduced inverter downtime by 30%, enabling the wind farm to achieve a 98.5% annual operational efficiency and maximize energy output.

Parameter

Technical Principles and Innovative Values

• Adaptive Gate Control: The UFC721AE101 uses advanced pulse width modulation (PWM) algorithms to optimize gate voltage profiles, reducing switching losses by up to 15% compared to standard drivers. In a solar inverter application, this feature improved overall system efficiency by 2.3%, translating to millions of kWh in additional energy production annually.
• Dual-Loop Feedback System: Integrates both voltage and current feedback to ensure precise regulation of gate signals, even in high-frequency switching scenarios. A test in a high-speed electric vehicle charging station showed that the module maintained signal integrity at 20 kHz switching frequency, outperforming competitor models by 25% in noise immunity.
• Ruggedized Design: Built with reinforced isolation barriers and conformal coating, the module withstands vibration (20 g shock resistance) and humidity (95% RH non-condensing), making it suitable for offshore, mining, and heavy industrial environments.

Application Cases and Industry Value

A major HVDC transmission project struggled with inconsistent gate drive performance in its converter stations, leading to harmonic distortions and grid instability. By implementing the ABB UFC721AE101 3BHB002916R0101, the project achieved a 40% reduction in total harmonic distortion (THD), ensuring compliance with grid codes and avoiding penalties. Additionally, the module’s predictive diagnostics—such as real-time monitoring of gate resistor wear—reduced maintenance costs by 28% over a five-year period, demonstrating its value in long-term asset management.

Installation, Maintenance, and Full-Cycle Support

Installation of the UFC721AE101 involves secure mounting on a grounded panel and careful wiring of power and control signals using shielded cables to minimize EMI. Pre-installation checks include verifying voltage levels and ensuring proper thermal interface between the module and heat sink. Routine maintenance includes annual inspections of connector tightness and thermal paste integrity, with firmware updates delivered via ABB’s remote service portal to enhance compatibility with new semiconductor technologies.

ABB’s global service team offers 24/7 technical support, including advanced diagnostics via encrypted remote access. For mission-critical applications, the module is backed by a 5-year warranty and a rapid replacement program, ensuring minimal downtime in the rare event of a fault. With lifecycle management services that include retrofitting and recycling, ABB ensures the UFC721AE101 remains a reliable component throughout its operational life.
