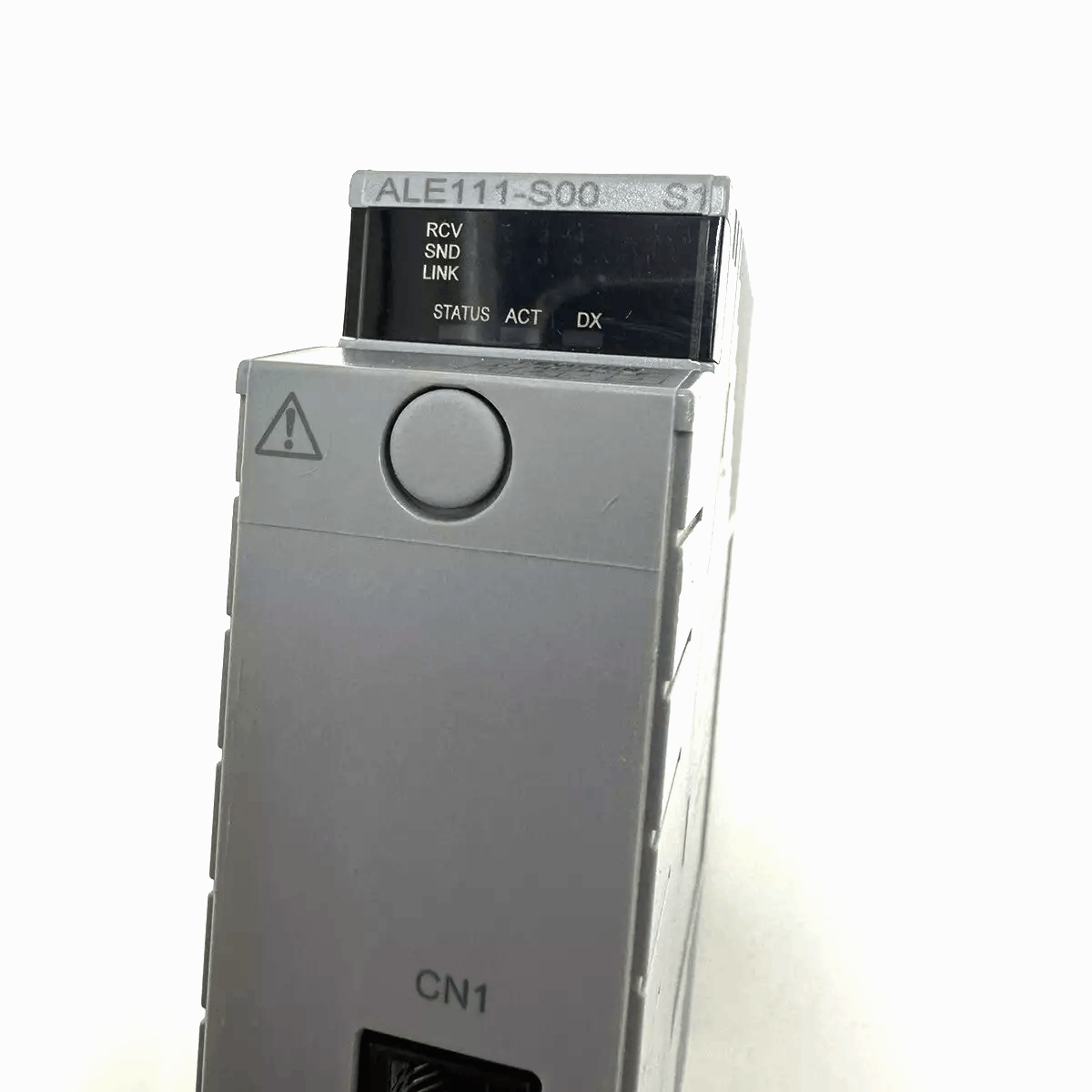

Yokogawa ALE111-S00 Ethernet Communication Module (for FIO)

Yokogawa ALE111-S00 Ethernet Communication Module (for FIO) is a module used by the Field Control Station (FCS) to perform Ethernet communication with subsystems such as FA-M3. It can be installed on Field Control Units (AFV30, AFV40, AFV10, AFF50), ESB Bus Node Units (ANB10), Optical ESB Bus Node Units (ANB11), and ER Bus Node Units (ANR10). This module supports a transmission distance of up to 100 meters (single segment, between the FCS and subsystem or hub and subsystem), features a single-port design, and adopts CSMA/CD media access control. It is capable of communicating with various systems such as FA-M3, Modbus, and MELSEC.

Why Choose ALE111-S00?

• Transmission distance: ALE111-S00 has a maximum single-segment transmission distance of 100 meters, which is suitable for medium and short-distance industrial network deployment.

• Media access control: ALE111-S00 adopts CSMA/CD (Carrier Sense Multiple Access/Collision Detection) mechanism.

• Single function mode: Each module supports only one communication protocol or function (such as only Modbus or only MELSEC).

• Bidirectional data transmission: ALE111-S00 supports bidirectional data interaction between FCS and subsystems, including data acquisition (reading data from subsystems) and control instruction issuance (setting data to subsystems through control calculations)

Specifications
