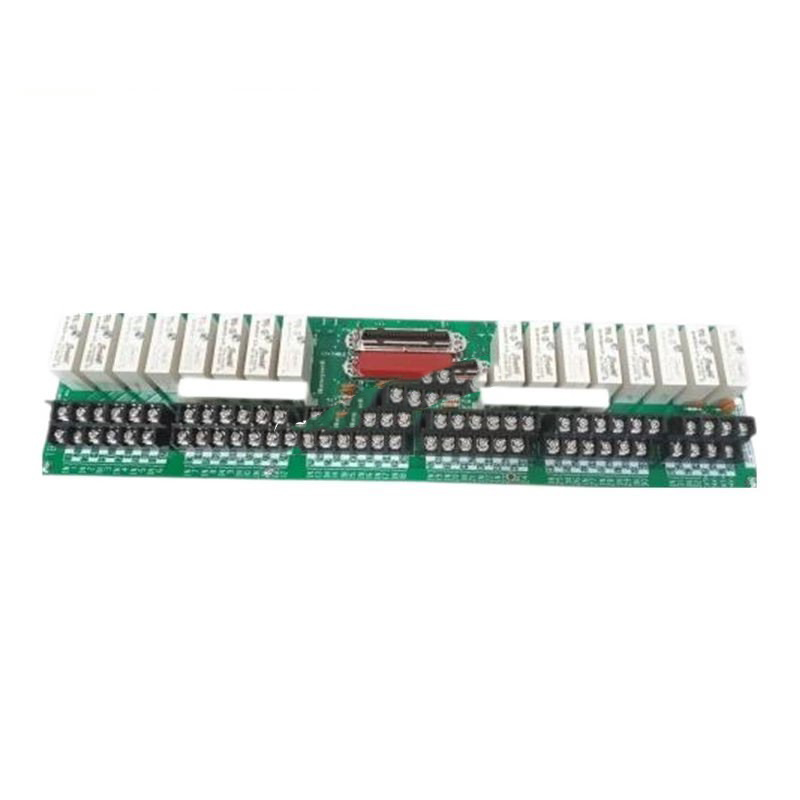

The Honeywell MC-TDOD13 is a digital output Field Termination Assembly (FTA) designed for use with Honeywell’s TxD family of distributed control systems (DCS). It provides 16 reliable DC output channels, ideal for controlling field devices such as relays, solenoid valves, and indicator lights. The MC-TDOD13 is equipped with solid-state outputs, ensuring durable and efficient operation. It features compression terminals for easy wiring and is designed for seamless integration within the Honeywell TxD system, making it a crucial component in industrial automation systems.

Technical Specifications

• Model: MC-TDOD13
• Output Points: 16
• Output Type: Solid-state
• Output Voltage Range: 3-30 VDC
• Output Current: Up to 2A per channel
• Terminal Type: Compression terminal
• Operating Temperature Range: -40°C to +70°C
• Dimensions: 30.8 cm x 12.1 cm x 5 cm
• Weight: 0.75 kg
• Compatibility: Honeywell TxD series DCS, MU/MC-PDOX01, and MU/MC-PDOX02 I/O modules
• Compliance: Non-compliant with CE standards, no conformal coating
• Isolation: Optically isolated outputs from each other and from the subsystem
