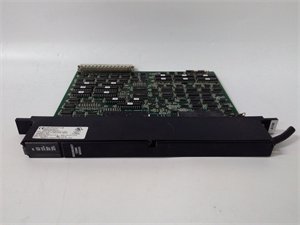

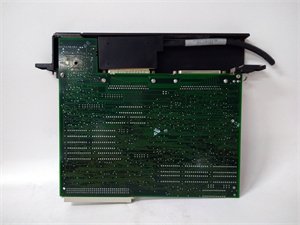

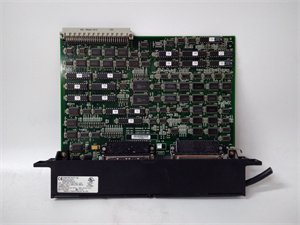

General Electric IC687RCM711 Redundancy Communications Module

The GE Fanuc IC687RCM711 is a redundancy communications module designed for industrial control systems. It plays a crucial role in hot standby CPU redundancy systems, ensuring data integrity and system reliability. This module is engineered to synchronize CPUs in the system, leveraging existing data in the backup unit for this operation. It can also transfer data between CPUs, facilitating seamless communication within the system. Belonging to the GE Fanuc series, the IC687RCM711 is positioned as a key component for enhancing system reliability and performance in automation systems. It offers the value of continuous operation and data protection, even in the face of potential communication failures.

Technical Specifications

Reliable and stable: The GE Fanuc IC687RCM711 uses advanced redundancy technology to safeguard against communication failures, ensuring continuous operation even under adverse conditions. It has a wide operating temperature range, from – 10 °C to + 55 °C, enabling it to function reliably in various industrial environments.

High – speed data transfer: Supporting communication protocols such as RS – 232 and RS – 485, the module allows for efficient data transfer, with a data transfer rate of up to 230 kbps. This makes it suitable for applications requiring high – speed, low – latency communications.

Compact and lightweight: With dimensions of 59 mm x 115 mm x 40 mm and a weight of 0.2 kg, the IC687RCM711 has a compact size and lightweight design. It can be easily installed in any space – limited environment without sacrificing performance.

Easy to install and integrate: The module is designed for seamless integration into complex control environments, simplifying the setup process and reducing downtime and maintenance costs. It is also compatible with a wide range of control systems, offering seamless interoperability.

The GE Fanuc IC687RCM711 is widely used in various industrial automation scenarios. In manufacturing plants, it is employed in production line control systems to ensure the reliable operation of CPUs and maintain continuous production. In power plants, it plays a vital role in the distributed control systems that monitor and control power generation processes, guaranteeing the stability of data communication between CPUs. In oil and gas facilities, the module is used in the automation systems for well – head control and pipeline monitoring, safeguarding the integrity of data transmission in harsh environments. Overall, wherever high – reliability data communication and system redundancy are required in industrial automation, the IC687RCM711 is an ideal choice.

Installation and Maintenance

Pre – installation preparation: Before installing the GE Fanuc IC687RCM711, make sure the power is off and the installation environment meets the requirements, with a suitable temperature range from – 10 °C to + 55 °C. Check the integrity of the module and the connectors. Ensure that the installation space is sufficient, as the module requires a single slot for installation.

Maintenance recommendations: Regularly check the status of the IC687RCM711 through the 5 LED indicators on the module. Clean the module regularly to prevent dust and dirt from affecting its performance. If any problems are found, refer to the product manual for troubleshooting or contact GE Fanuc’s technical support.

Product Guarantee

GE Fanuc is committed to providing high – quality products. The GE Fanuc IC687RCM711 comes with a certain – period quality assurance. The company guarantees that the module is free from defects in materials and workmanship. In case of any quality problems during the warranty period, GE Fanuc will provide repair or replacement services. Additionally, the company offers comprehensive after – sales service and technical support to help customers solve any problems that may arise during the use of the product, ensuring that customers can use the IC687RCM711 with confidence.
