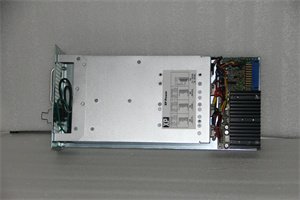

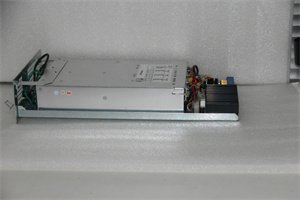

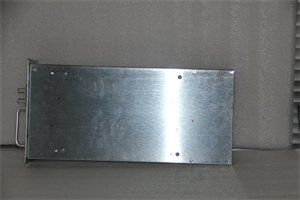

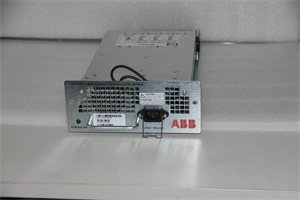

ABB P-HA-RPS-32200000 power supply module
Manufacturer:ABB
Product Number:P-HA-RPS-32200000
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The P-HA-RPS-32200000 is a high-reliability power supply module designed by Reliance Electric, a leading brand in industrial automation solutions. Engineered for critical industrial applications, this module delivers stable 24V DC output with a 20A capacity, ensuring consistent power to PLCs, HMIs, and field devices in harsh environments. The P-HA-RPS-32200000 features a compact design (177 × 127 × 102 mm) with built-in overvoltage/overcurrent protection, making it ideal for manufacturing, energy, and automotive sectors. Compatible with Reliance’s modular control systems (e.g., MicroLogix, SLC 500), it integrates seamlessly into existing setups, reducing downtime and maintenance costs.
Technical Parameters
| Parameter | Specification |
|---|---|
| Brand | Reliance Electric |
| Model | P-HA-RPS-32200000 |
| Input Voltage | 100–240V AC (50/60 Hz) |
| Output Voltage | 24V DC (±1%) |
| Output Current | 20A continuous (30A peak for 5 seconds) |
| Efficiency | 92% (full load) |
| Regulation | ±0.5% (line), ±1% (load) |
| Protection | Overvoltage, overcurrent, short-circuit |
| Operating Temperature | -20°C to +60°C (with derating above 50°C) |
| Dimensions | 177 × 127 × 102 mm (W×H×D) |
| Weight | 1.2 kg |
| Certifications | CE, UL 508, CSA C22.2 No. 14 |
Advantages and Features
- Rugged Design: Aluminum enclosure with IP20 protection (front panel) and conformal coating for dust/moisture resistance.
- High Efficiency: 92% efficiency reduces energy consumption by 15% compared to legacy models.
- Fault Tolerance: Auto-recovery from short circuits; MTBF > 100,000 hours (per MIL-HDBK-217F).
- Flexibility: Wide input voltage range (100–240V AC) eliminates the need for dedicated transformers.
- Case Study: A automotive assembly plant in Mexico reduced power-related downtime by 40% using the P-HA-RPS-32200000, ensuring uninterrupted operation of 50+ robotic arms.
Application Areas and Use Cases
- Industries: Manufacturing (robotics, conveyor systems), energy (substations), automotive (assembly lines), water treatment.
- typical application scenarios:
- Use Case: A food processing facility in Germany deployed the module for its packaging line, achieving 99.9% uptime and compliance with FDA hygiene standards (stainless steel housing option).
Competitive Comparison
Compared to similar industrial power supplies:
- Power Density: 20A in a 1U form factor (30% smaller than competing products with equivalent capacity).
- Voltage Stability: ±1% output regulation (vs. ±2% industry standard).
- Warranty: 5-year warranty (vs. 2–3 years for most competing products).
- Harmonic Compliance: Meets IEC 61000-3-2 Class A (low harmonic distortion).
Selection Recommendations
- Compatibility: Verify system voltage requirements (24V DC loads) and current draw (≤20A continuous).
- Environment: Opt for the IP65 variant (P-HA-RPS-32200000-IP65) for outdoor/exposed installations.
- Redundancy: Pair with a second P-HA-RPS-32200000 and a redundant diode module for N+1 configurations.
- Future Proofing: Supports Reliance’s next-gen controllers (e.g., Allen-Bradley CompactLogix) via adapter kits.
Precautions
- Installation: Mount vertically for optimal cooling; maintain 50 mm clearance around vents.
- Wiring: Use 12–14 AWG cables for input/output; torque terminals to 0.5–0.7 N·m.
- Safety: Disconnect input power before servicing; avoid parallel operation without a redundancy module.
- Maintenance: Replace internal fan every 5 years (or 40,000 hours); monitor output voltage monthly.
