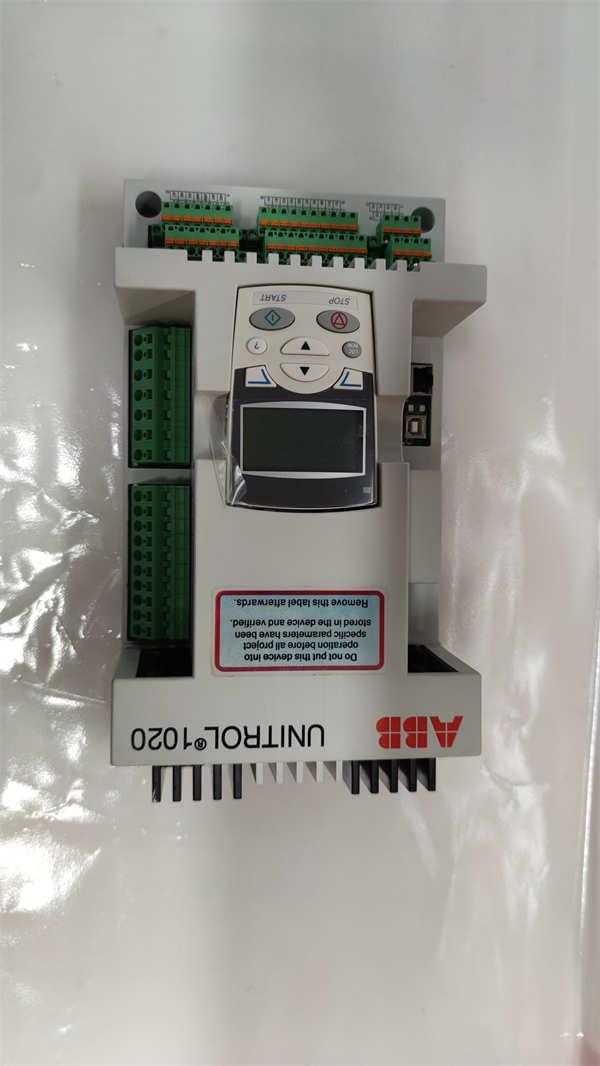

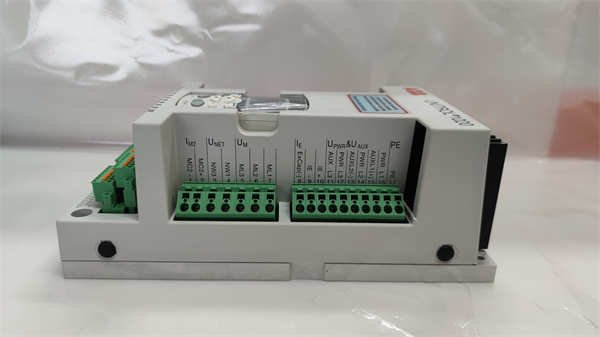

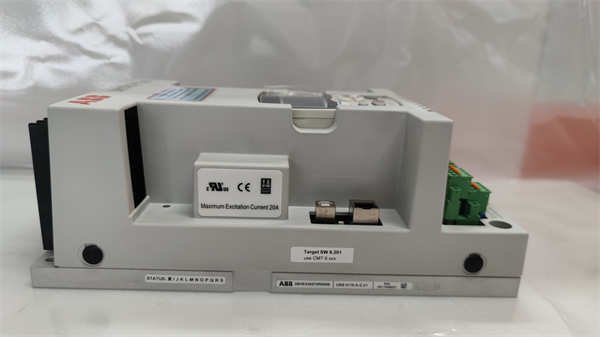

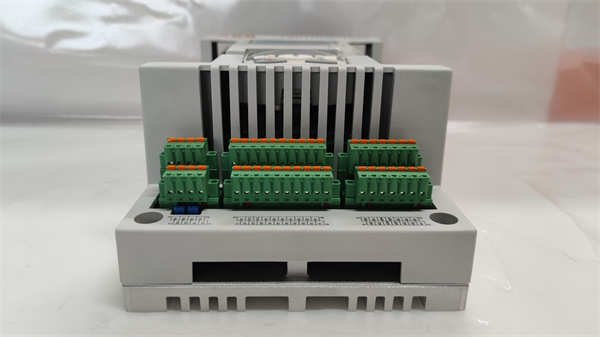

ABB UNITROL 1020 Synchronous generator excitation controller

The ABB UNITROL 1020 is a state-of-the-art synchronous generator excitation controller, part of ABB’s UNITROL series—a benchmark in power generation control solutions. This controller is engineered to regulate the excitation system of synchronous generators, ensuring stable voltage output, efficient power generation, and seamless grid integration.

ABB UNITROL 1020 serves as the brain of generator excitation systems, dynamically adjusting field current to maintain terminal voltage within tight tolerances, even under fluctuating load conditions. Its advanced control algorithms make it suitable for a wide range of generator sizes (from 1 MVA to 1000 MVA) and applications, including fossil fuel plants, hydroelectric stations, and renewable energy installations. Whether operating in standalone mode or connected to complex power grids, ABB UNITROL 1020 enhances generator reliability, extends equipment life, and optimizes energy production.

Detailed parameter table

Core advantages and technical highlights

Precision voltage regulation: ABB UNITROL 1020 achieves voltage regulation accuracy of ±0.2% under steady-state conditions, outperforming industry standards. Its adaptive control algorithms compensate for generator parameter variations and grid disturbances, ensuring stable operation during sudden load changes or faults.

Flexible operation modes: Unlike basic excitation controllers, ABB UNITROL 1020 offers seamless cut between automatic voltage regulation (AVR), field current regulation (FCR), and power factor control (PFC). This versatility allows operators to optimize performance based on grid requirements, whether prioritizing voltage stability, reactive power control, or generator protection.

Grid code compliance: ABB UNITROL 1020 is designed to meet global grid codes, including low-voltage ride-through (LVRT) and reactive power support requirements. Its fast response time (<100 ms) ensures generators remain connected during grid disturbances, reducing the risk of cascading outages and ensuring compliance with utility regulations.

Integrated diagnostics: ABB UNITROL 1020 features advanced monitoring capabilities, tracking key parameters such as field voltage, excitation current, and temperature. Its built-in fault detection system identifies potential issues (e.g., diode failures, overheating) and triggers alarms or protective actions, enabling predictive maintenance and minimizing unplanned downtime.

Typical application scenarios

In combined cycle power plants, ABB UNITROL 1020 controls the excitation of gas turbine generators, ensuring stable voltage output during rapid load changes—critical for matching the variable demand of industrial and municipal grids. Its ability to synchronize multiple generators simplifies plant expansion, allowing incremental capacity additions without compromising system stability.

Within hydroelectric facilities, ABB UNITROL 1020 excels in regulating generators across varying water flow rates. Its adaptive control algorithms compensate for changes in turbine efficiency, maintaining optimal power factor and reducing mechanical stress on turbine components. The controller’s communication features enable integration with SCADA systems, facilitating remote monitoring of generator performance and grid interaction.

In renewable energy hybrid systems (e.g., wind-solar-diesel), ABB UNITROL 1020 coordinates diesel generator excitation to balance intermittent renewable generation. Its fast response to voltage fluctuations stabilizes the microgrid, ensuring reliable power supply to remote communities or industrial sites. The controller’s power factor control mode optimizes diesel generator efficiency, reducing fuel consumption and operating costs.

Installation, commissioning and maintenance instructions

Installation preparation: Before installing ABB UNITROL 1020, ensure the mounting location is free from vibration, dust, and corrosive gases. The ambient temperature must remain within -10°C to +55°C, with relative humidity below 90% (non-condensing). Required tools include a torque screwdriver (set to 1.5 Nm for terminal connections), wire strippers, and insulation resistance tester. Use shielded cables for field current connections to minimize electromagnetic interference. Verify that the control power supply (24 V DC or 110 V AC) is properly isolated and protected by a 1A fuse. Allow at least 100 mm clearance around the controller for ventilation.

Maintenance suggestions: For ABB UNITROL 1020, perform monthly checks of front-panel indicators and measured values to ensure proper operation. Calibrate voltage and current sensors annually using certified test equipment to maintain regulation accuracy. Inspect terminal connections quarterly for tightness and signs of corrosion, retorquing if necessary. Back up configuration data to a secure device bi-annually using ABB’s UNITROL Configurator software. If communication faults occur, check network settings and cable integrity, or use the controller’s built-in diagnostic tools for troubleshooting. When replacing components (e.g., fuses, fans), use only ABB-approved parts to maintain performance and safety certifications.
