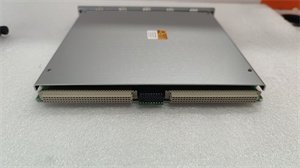

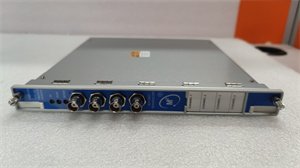

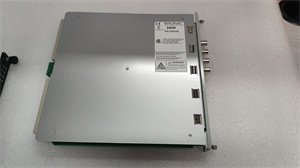

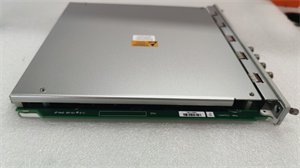

Bently Nevada 3500/44-01-00 Multi-Channel Vibration and Displacement Monitoring Module
Manufacturer:Bently Nevada
Product Number:
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently 3500/44-01-00 is a high-performance, modular monitoring solution designed for rotating machinery in critical industrial applications. As part of the Bently 3500 Series, this four-channel module supports simultaneous monitoring of radial vibration, axial displacement, and acceleration using eddy current sensors, accelerometers, or velocity transducers. It provides real-time data analysis, configurable alarm thresholds, and seamless integration with Bently’s System 1 software for predictive maintenance. The 3500/44-01-00 ensures reliable operation in harsh environments, making it ideal for power generation, oil & gas, and manufacturing sectors.
Technical Parameters
| Parameter | Specification |
|---|---|
| Input Signal | ±10 VDC (eddy current sensors), 4–20 mA (accelerometers) |
| Power Supply | 85–264 VAC or 20–30 VDC (redundant options available) |
| Channels | 4 configurable channels (e.g., vibration/displacement) |
| Measurement Range |
– Displacement: 0–250 mils (0–6.35 mm)
– Acceleration: 0–10 g pk |
| Alarm Outputs | 2 relays per channel (30 VDC/5 A max) |
| Communication | Modbus RTU (RS-485) for PLC/DCS integration |
| Operating Temperature | -40°C to +70°C |
| Compatibility | Bently 3500 racks, System 1 software |
Advantages and Features
- Multi-Parameter Monitoring: Simultaneously tracks vibration, displacement, and acceleration for comprehensive machinery health assessment.
- Flexible Configuration: Over 10,000 filter combinations (low-pass/high-pass) for adapting to dynamic operating conditions.
- Rapid Response Alarms: <10 ms detection time with configurable setpoints (Alert/Danger) to prevent catastrophic failures.
- Redundancy Support: Dual-channel redundancy for safety-critical applications (e.g., offshore platforms).
- User-Friendly Interface: Easy setup via Bently’s 3500 Rack Configuration Software with remote monitoring capabilities.
Application Fields and Case Studies
- Energy: Gas/steam turbine vibration analysis in power plants.
- Oil & Gas: Compressor axial displacement monitoring in refineries.
- Manufacturing: Motor bearing health assessment in automotive assembly lines.
Case Study: A European power plant reduced unplanned downtime by 35% using the 3500/44-01-00 to detect early-stage steam turbine blade cracks, avoiding $1.2M in repair costs.
Competitor Comparison
The 3500/44-01-00 outperforms alternatives with:
- Higher channel density (4 vs. 2–3 channels).
- Faster alarm response time (10 ms vs. 20–30 ms).
- Built-in support for Bently’s API 670-compliant sensors.
Selection Recommendations
- Redundancy Needs: Opt for dual-channel configuration in safety-critical systems.
- Environment: Choose explosion-proof variants for hazardous areas.
- Budget: Balance upfront costs with long-term savings from predictive maintenance.
Precautions
- Sensor Calibration: Perform annual alignment checks using Bently’s 3500/05 Calibration Interface.
- Power Stability: Use filtered power supplies to prevent voltage fluctuations.
- Firmware Updates: Regularly update to access new features and security patches.
