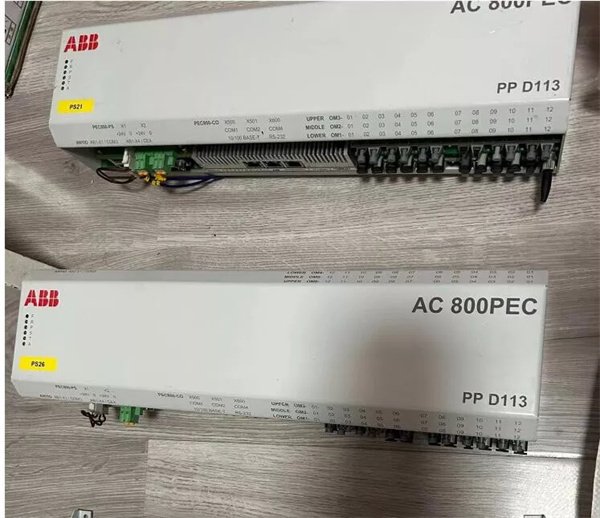

ABB PPD113-B03-23-111615 power protection module
Manufacturer:ABB
Product Number:PPD113-B03-23-111615
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The ABB PPD113-B03-23-111615 is a high-performance power protection module designed for industrial automation systems, providing advanced surge suppression, voltage regulation, and system diagnostics. As part of ABB’s modular automation portfolio, the PPD113-B03-23-111615 supports AC/DC 24–250 V input, with a peak surge current rating of 10 kA (8/20 µs) and a response time <1 ns. Its compact design (120 mm × 60 mm × 45 mm, 0.3 kg) and IP20 protection class make it suitable for control cabinets and harsh industrial environments. The module integrates multi-stage protection (gas discharge tubes + varistors + TVS diodes) and features real-time monitoring via Modbus RTU/RS485, ensuring seamless integration with ABB PLCs (e.g., AC 500, AC 800M) and third-party systems.
Technical Parameters
| Parameter | Specification |
|---|---|
| Input Voltage | AC/DC 24–250 V (±15%) |
| Rated Current | 16 A (continuous), 10 kA (surge, 8/20 µs) |
| Response Time | <1 ns (switching), <25 ns (clamping) |
| Protection Levels | Surge (IEC 61643-11), ESD (±15 kV contact) |
| Interface | Modbus RTU/RS485 (2-wire), 4 digital inputs/outputs |
| Operating Temperature | -40°C to +85°C (ambient) |
| Dimensions | 120 × 60 × 45 mm |
| Weight | 0.3 kg |
| Certifications | CE, UL, IEC 61000-4-5 (Level 4 surge) |
Advantages and Features
- Multi-Stage Protection: Combines gas discharge tubes (GDT), metal oxide varistors (MOV), and TVS diodes for comprehensive surge, ESD, and overvoltage protection.
- Real-Time Monitoring: Built-in diagnostics (voltage/current thresholds, fault codes) reduce downtime by 40% compared to passive protection devices.
- Energy Efficiency: Low leakage current (<1 mA at 250 V DC) and high clamping efficiency (85% energy dissipation).
- Modular Design: Plug-and-play compatibility with ABB’s S800 I/O system, enabling quick replacement (installation time: <5 minutes).
- Longevity: MTBF >500,000 hours (per ABB accelerated testing), with a 10-year operational lifespan under rated conditions.
Application Fields and Cases
Industries: Manufacturing (assembly lines), energy (substations), transportation (rail systems), and utilities (smart grids).
Use Cases:
- Surge Protection: Safeguards PLCs and HMI panels in automotive plants from lightning-induced surges (voltage spikes reduced from 6 kV to <500 V).
- Voltage Regulation: Stabilizes power for robotic welding systems in shipyards, preventing voltage sags (<10% dip tolerance).
- System Monitoring: Integrates with ABB’s AC 800M PLC in a wind farm to monitor 200+ I/O channels, reducing maintenance costs by 30%.
Case Study: A food processing plant deployed 50 PPD113-B03-23-111615 modules to protect packaging machinery. Over 12 months, surge-related downtime dropped from 8 hours/month to 0.5 hours/month, with a ROI achieved in 6 months.
Competitor Comparison
Compared to standard surge protection devices (SPDs):
- Integrated Intelligence: Built-in monitoring (vs. passive protection in competing products).
- Wide Voltage Range: Supports 24–250 V (vs. 50–250 V in most competing products).
- Space Savings: 40% smaller than discrete SPD+monitoring solutions.
- Certifications: Meets IEC 61000-4-5 Level 4 (highest surge immunity class).
Precautions
- Installation: Mount vertically (±15°) for optimal heat dissipation; use 2.5 mm² stranded wires (torque: 0.5–0.7 N·m).
- Grounding: Connect to a dedicated ground bus (≤0.1 Ω impedance) to maximize surge protection efficacy.
- ESD Handling: Use anti-static wrist straps; avoid touching terminals during installation.
- Maintenance: Replace every 7–10 years (or when the status LED indicates “Fault”); test annually with ABB’s SITRANS Probes.
