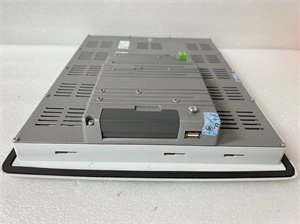

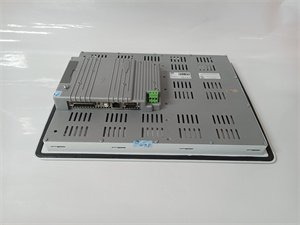

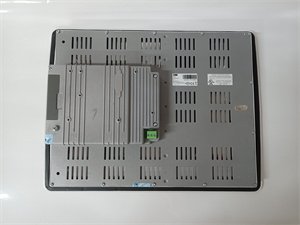

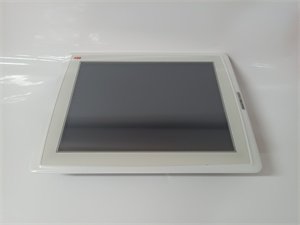

ABB PP865A 3BSE042236R2 Touch Panel
Manufacturer:ABB
Product Number:PP865A 3BSE042236R2
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The ABB PP865A 3BSE042236R2 is a high-performance human-machine interface (HMI) designed for industrial automation systems, part of ABB’s Panel 800 series. This 15-inch TFT touch panel offers intuitive control and monitoring, combining robust hardware with user-friendly software for seamless integration into diverse industrial environments. Ideal for applications requiring real-time interaction, the PP865A 3BSE042236R2 supports graphics, text, and touch operations, enabling operators to manage processes efficiently. Its modular design and compatibility with ABB’s AC800M system make it a versatile choice for industries such as manufacturing, energy, and chemical processing.
Product Parameters
| Parameter | Specification |
|---|---|
| Display Type | TFT-LCD, 15-inch widescreen |
| Resolution | 1024 × 768 pixels (4:3 aspect ratio) |
| Input Voltage | 24V DC ±10% |
| Input Current | 1.2A |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5%–95% (non-condensing) |
| Communication Interface | Profibus DP |
| Mounting Method | Din rail / Panel cut-out (front/flush) |
| Weight | ~4.64 kg |
| Touch Technology | Resistive (polyester on glass, 1M operations) |
Advantages and Features
- High Reliability: Built with an aluminum alloy housing and IP65-rated front panel (NEMA 4X), ensuring durability in harsh environments.
- Longevity: CCFL backlight with >35,000 hours of operational life at 25°C.
- User-Friendly Design: 15-inch widescreen with 64K color support for clear visualization; resistive touch technology compatible with gloves or stylus.
- Wide Compatibility: Integrates with ABB’s AC800M system and supports Panel Builder 800 software (Version 5+).
- Environmental Resilience: Operates across extreme temperatures (-40°C to +70°C) and humidity ranges.
Application Areas and Case Studies
- Industries: Manufacturing (textile/packaging machinery), energy (power generation), chemical processing, water/wastewater treatment.
- Case Study: ABB PP865A 3BSE042236R2 was deployed in a textile plant to control automated looms. The touch panel’s real-time monitoring and intuitive interface reduced downtime by 20% and improved operator efficiency by streamlining machine adjustments.
Competitive Comparison
Compared to similar HMI panels, the PP865A 3BSE042236R2 stands out with:
- Superior Durability: Extended temperature range (-40°C to +70°C) vs. standard 0°C to +50°C.
- Higher Resolution: 1024 × 768 pixels (15-inch) vs. common 800 × 480 pixels (10-inch).
- Enhanced Compatibility: Native support for ABB’s AC800M system, reducing integration complexity.
Precautions
-
Installation:
- Follow DIN rail mounting guidelines; avoid static discharge during setup.
- Use the recommended RX865 touch cover (EXC3BSE042236R2) for screen protection.
-
Maintenance:
- Clean the screen with a non-abrasive cloth; avoid harsh chemicals.
- Replace the real-time clock battery (rechargeable) every 5–7 years.
-
Safety:
-
Ensure compliance with UL 508/50 standards for industrial control systems.
-
Disconnect power before servicing internal components.
-
