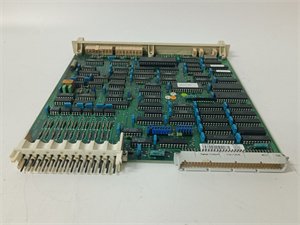

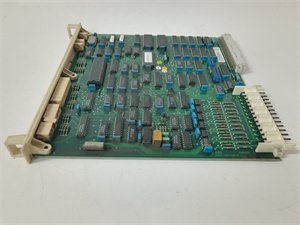

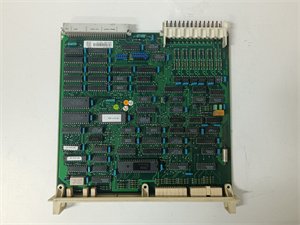

ABB DSCS131 57310001-LM Fieldbus communication module

The ABB DSCS131 57310001-LM is a high-reliability Fieldbus communication module designed for industrial automation systems, enabling seamless integration of field devices (sensors, actuators, and controllers) into centralized control networks. As part of ABB’s advanced DSCS series, the DSCS131 57310001-LM supports robust real-time data exchange, ensuring efficient monitoring and control in harsh industrial environments. With a focus on versatility and durability, the module is ideal for applications requiring multi-protocol compatibility (e.g., Fieldbus) and wide temperature tolerance. Key features include a compact DIN-rail design, EMI/RFI protection, and plug-and-play configuration, making it suitable for industries such as manufacturing, energy, and petrochemicals. The DSCS131 57310001-LM enhances system scalability and reduces maintenance costs by simplifying device connectivity and diagnostics.

Product Parameters

Advantages and Features

• Extreme Environmental Tolerance: Operates in -40°C to +85°C, surpassing standard modules (typically -20°C to +60°C), making it suitable for outdoor/harsh applications (e.g., oil rigs, steel plants).
• Reliable Fieldbus Integration: Supports high-speed Fieldbus communication (12 Mbps) with CRC error checking, ensuring data integrity in noisy industrial settings.
• Low Power Consumption: 100 mA standby current reduces energy costs in large-scale deployments.
• Easy Commissioning: Predefined profiles for ABB devices enable rapid setup (<15 minutes) via ABB’s ToolboxST software.
• Durability: MTBF > 100,000 hours; surge protection (4 kV) and shock resistance (IEC 60068-2-27) for long-term reliability.

Application Areas and Case Studies

Industry Applications:

• Petrochemical: Monitoring distributed sensors in refineries.
• Metallurgy: Controlling furnace actuators in steel mills.
• Water/Wastewater: SCADA integration for remote pump stations.

Case Study:

A Middle Eastern petrochemical plant deployed DSCS131 57310001-LM modules to connect 200+ Fieldbus devices in a desert environment (-30°C to +50°C). The solution reduced downtime by 18% (vs. legacy systems) and eliminated 30 km of wiring, saving $200,000 in installation costs.

Competitor Comparison

Compared to similar Fieldbus communication modules:

• Temperature Range: Supports -40°C to +85°C (vs. standard -20°C to +60°C), ideal for extreme climates.
• Protocol Flexibility: Native Fieldbus support (no add-on cards required), reducing hardware complexity.
• Cost efficiency: Maintenance-free design and 5-year warranty reduce maintenance costs by 20% compared to industry 2-3 years).

Selection Recommendations

• Environment: Choose the DSCS131 for extreme temperatures (-40°C to +85°C); opt for DSCS112 (standard temp) for indoor use.
• Network Size: Scales from 10 to 200+ devices; verify Fieldbus segment length (max 1,200 m with repeaters).
• Protocol Needs: Fieldbus-native design suits legacy systems; use DSCA114 for Ethernet/IP-Modbus hybrid networks.
• Integration: Ensure compatibility with ABB PLC firmware (AC500 v3.5+); third-party devices must be Fieldbus certified (e.g., IEC 61158).

Precautions

• Installation: Secure DIN-rail mounting; separate power/Fieldbus cables (shielded twisted pair for Fieldbus).
• Safety: Disconnect power before module replacement; follow IEC 61131-3 for network commissioning.
• Temperature Management: Ensure adequate ventilation in high-temperature environments; avoid condensation.
• Firmware: Update via ABB ToolboxST for protocol updates (e.g., PROFIBUS DP V1 support).
