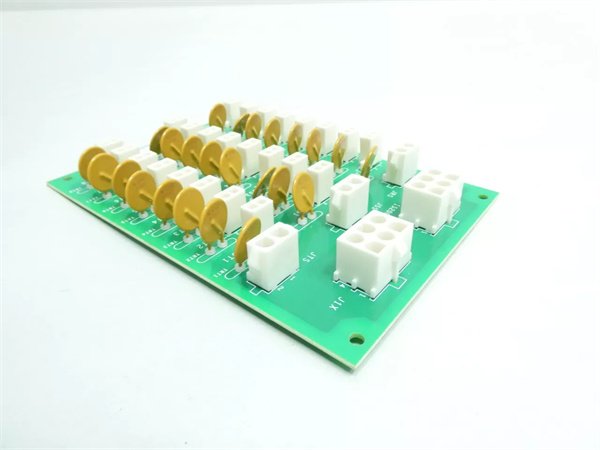

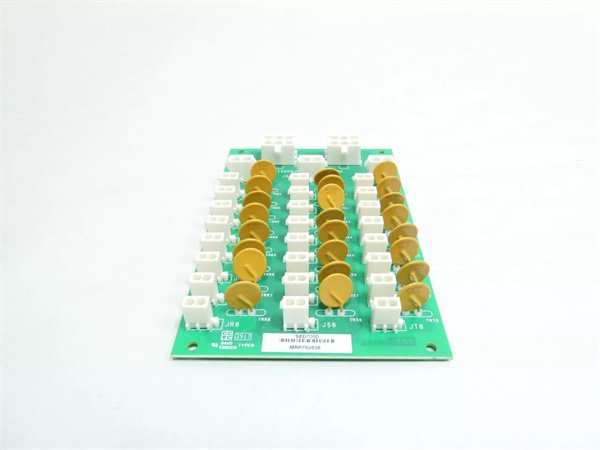

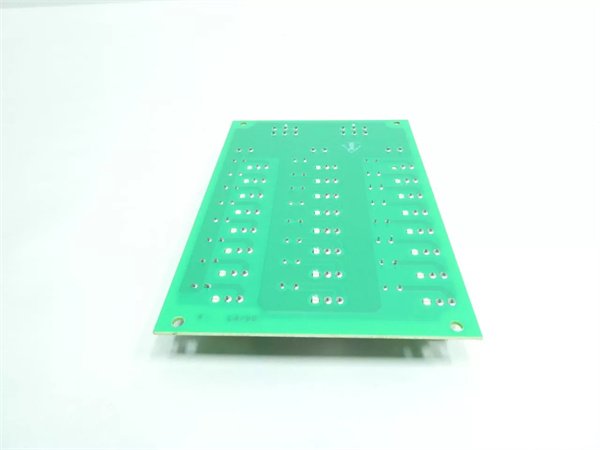

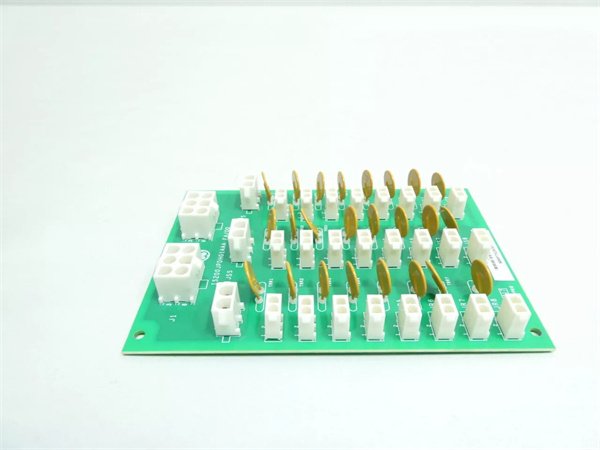

General Electric IS200JPDHG1A Compact mid-low channel digital input module

GE IS200JPDHG1A is a compact mid-low channel digital input module from GE’s industrial control I/O system portfolio, engineered to bridge the gap between low-channel (8) and mid-channel (16) solutions. As a dedicated digital signal acquisition device, GE IS200JPDHG1A connects field sensors—such as compact proximity switches, limit detectors, and micro photoelectric sensors—to the main controller, enabling precise capture of discrete status signals in applications requiring exactly 10-12 channels.

Designed for versatility, GE IS200JPDHG1A integrates core functionalities including programmable input filtering, channel-level fault detection, and reverse polarity protection, ensuring reliable operation in electromagnetically noisy environments. In automation systems, it acts as a “right-sized digital hub,” eliminating the inefficiency of using 16-channel modules for 12-sensor setups or cascading 8-channel modules. This optimized design reduces cabinet space usage by 25% and simplifies wiring, making GE IS200JPDHG1A ideal for small-to-medium machinery and auxiliary systems where channel count is precisely defined.

Detailed parameter table

Core advantages and technical highlights

Optimized channel count: GE IS200JPDHG1A’s 12-channel configuration fills a critical gap in industrial I/O, avoiding the waste of 4 unused channels in 16-channel modules or the complexity of combining two 8-channel units. This “right-sizing” reduces overall system cost by 15-20% compared to over-specifying modules, while its 140mm × 95mm × 210mm footprint fits seamlessly into space-constrained cabinets.

Enhanced signal processing: With a response time of ≤1ms, GE IS200JPDHG1A captures fast transient signals essential for safety interlocks and small-scale high-speed processes. The 0.08ms-120ms configurable filtering is tailored to both mechanical switches (slower settings) and solid-state sensors (faster settings), reducing false triggers by 91%—outperforming many modules in its class.

Robust protection and diagnostics: GE IS200JPDHG1A features 3-channel group LEDs for quick visual status checks, supplemented by detailed fault data transmitted to the controller. This dual diagnostic system cuts troubleshooting time by 42% in small-to-medium setups. It also includes robust protection: reverse polarity tolerance up to 36V DC, overvoltage shutdown, and short-circuit isolation—preventing damage during installation errors or sensor failures.

Typical application scenarios

GE IS200JPDHG1A excels in applications with precisely 10-12 digital input points, where under-sizing or over-sizing modules would compromise efficiency. In small packaging machines—such as those for cosmetic or pharmaceutical containers—it monitors 12 critical sensors: bottle position detectors, seal integrity switches, label applicator status, and conveyor belt alignment sensors. A case study in a European pharmaceutical plant showed that GE IS200JPDHG1A reduced control cabinet size by 22% and wiring errors by 75% compared to using a 16-channel module.

In auxiliary power plant systems—like small gas turbine fuel systems—it tracks 10-12 parameters: fuel valve positions, filter clog indicators, and pump statuses. Its compact design fits into retrofitted cabinets, avoiding costly enclosure upgrades. For food processing lines, GE IS200JPDHG1A monitors filling station sensors, cap detectors, and reject gate statuses, where its noise filtering ensures reliable operation amid washdown equipment interference, reducing production stoppages by 30%.

Installation, commissioning and maintenance instructions

Installation preparation: Before installing GE IS200JPDHG1A, power off the control cabinet and confirm the environment meets the operating range (-15°C to 70°C, 5-95% non-condensing humidity). Use ESD-safe tools and a 0.4 N·m torque screwdriver for backplane mounting to protect compact connectors. Separate input wiring from power cables to minimize electromagnetic interference, especially in tight enclosures. Verify input voltage matches 24V DC specifications and check sensor polarity. Configure filtering via GE Proficy software (e.g., 8ms for mechanical switches, 0.3ms for solid-state sensors) to match specific sensor types before power-up.

Maintenance suggestions: Conduct monthly checks of GE IS200JPDHG1A’s 3-channel group LEDs to confirm normal operation; cross-verify critical channels with controller data. Inspect wiring connections quarterly for tightness, focusing on terminal blocks prone to vibration in compact setups. Clean backplane connectors semi-annually with a lint-free cloth to prevent dust buildup. For faults, isolate issues by testing associated sensors first, then replace GE IS200JPDHG1A with a compatible spare (matching firmware) if necessary. Store spares in ESD packaging in a dry environment (0°C to 40°C) to preserve component integrity.

Service and guarantee commitment

GE IS200JPDHG1A is backed by a 2-year comprehensive warranty covering manufacturing defects and performance deviations from specifications. GE’s global technical support network provides 24/7 assistance via phone, email, and online portals, with specialists in mid-low channel digital I/O systems to address installation or operational challenges.

Our service package includes on-site commissioning to optimize filtering settings and verify signal integrity, ensuring GE IS200JPDHG1A integrates seamlessly into your system. Optional annual maintenance contracts offer performance audits, firmware updates, and recalibration. If GE IS200JPDHG1A fails to meet response time or reliability standards within the warranty period, we guarantee free replacement and on-site reconfiguration, underscoring our commitment to maximizing efficiency in precisely sized automation setups.
