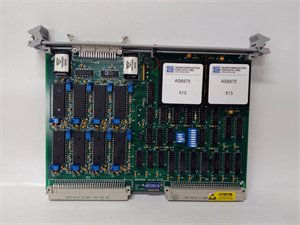

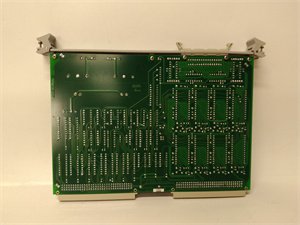

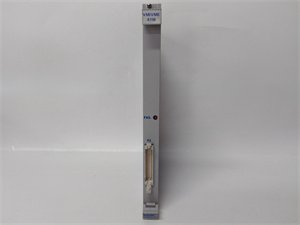

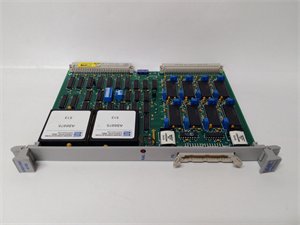

General Electric VMIVME-4116 analog output board

The VMIVME-4116 is a high-performance analog output board designed for industrial automation, control systems, and test applications. Manufactured by GE Fanuc (now part of Abaco Systems), the VMIVME-4116 delivers 8 channels of 16-bit resolution digital-to-analog conversion (DAC), enabling precise signal generation and control. Its dual-buffered architecture ensures stable output updates, while features like fast settling time (10 µs to ±0.003% FSR) and buffered voltage output (±10 V at 5 mA) make it ideal for applications requiring reliable analog signal conditioning. The VMIVME-4116 supports VMEbus compatibility and includes built-in test (BIT) capabilities via the AMX bus, enhancing system diagnostics. With applications in industries ranging from manufacturing to medical devices, the VMIVME-4116 combines accuracy, durability, and ease of integration.

Product Parameters

Advantages and Characteristics

1. High Precision: 16-bit resolution ensures 305 µV step accuracy, suitable for critical control systems.
2. Dual-Buffered Architecture: Enables simultaneous updates across all channels, preventing signal glitches.
3. Fast Settling Time: 10 µs settling time (1/2 LSB) for real-time response in dynamic applications.
4. Reliability Features: Front-panel fault LED, DIN-type output connectors, and automatic field disconnection on power-up.
5. Built-in Test (BIT): Supports AMX bus for integrated testing of analog input/output boards, reducing downtime.
6. Flexible Control: Jumper-selectable update modes (external/software) and programmable output multiplexing for testing.

Application Areas and Use Cases

• Industrial Automation: Controls servo motors, valves, and actuators in manufacturing lines.
• Test and Measurement: Generates precise analog signals for calibrating instruments.
• Medical Equipment: Powers analog outputs in ventilators and diagnostic devices.
• Energy Systems: Manages analog control loops in power generation and distribution.

Case Study: A steel plant integrated the VMIVME-4116 into its rolling mill control system. The board’s 16-bit resolution and fast settling time improved actuator response by 20%, reducing material waste and enhancing process efficiency.

Competitor Comparison

Compared to similar analog output boards, the VMIVME-4116 stands out with:

• Higher Resolution: 16-bit vs. standard 12–14-bit options.
• Dual-Buffered Design: Eliminates signal inconsistencies during updates.
• Integrated BIT: Reduces reliance on external test equipment.
• Wide Voltage Range: ±10 V output supports diverse industrial requirements.

Selection Recommendations

• Compatibility: Ensure VMEbus system compatibility and check required channels/resolution.
• Environment: Verify temperature/humidity ratings for harsh industrial settings.
• Features: Choose models with built-in test (e.g., VMIVME-4116-070) for advanced diagnostics.
• Budget: Balance resolution (16-bit) and additional features (isolation relays, BIT) against cost.

Precautions

1. Installation: Follow ESD (electrostatic discharge) protocols; use anti-static packaging.
2. Power Supply: Ensure stable voltage (±10 V) and proper grounding to avoid signal noise.
3. Maintenance: Regularly inspect connectors for wear; clean dust from the board periodically.
4. Software Configuration: Calibrate output ranges and update modes via the control status register (CSR).
5. Safety: Disconnect power before modifying jumpers or replacing the board.

Conclusion: The VMIVME-4116 is a versatile analog output solution for industrial and commercial applications, offering precision, reliability, and diagnostic flexibility. Its robust design and VMEbus compatibility make it a trusted choice for mission-critical systems.
