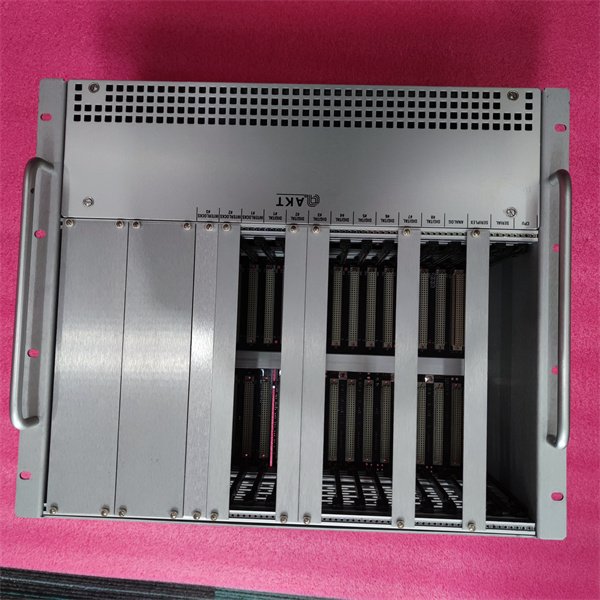

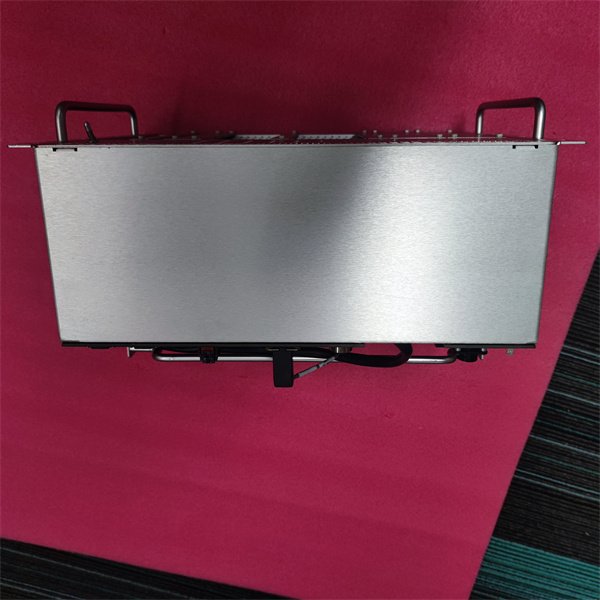

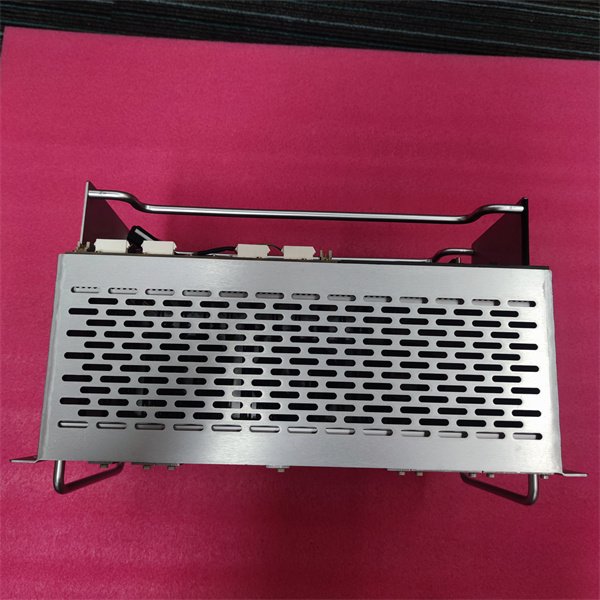

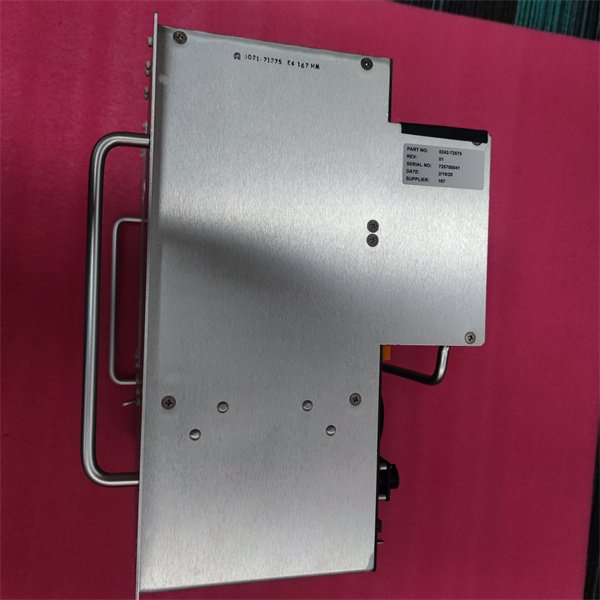

AMAT 0100-71275 VMEbus Backplane
Manufacturer:AMAT
Product Number:AMAT 0100-71275
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The AMAT 0100-71275 is a VMEbus backplane designed for use in AMAT CVD (Chemical Vapor Deposition) equipment. It provides a high-performance, ruggedized platform for real-time embedded systems, ensuring efficient data processing and control in demanding semiconductor manufacturing applications.
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | AMAT 0100-71275 |
| Manufacturer | Applied Materials (AMAT) |
| Product category | VMEbus Backplane |
| Input voltage range | 5 VDC ±20% |
| Operating frequency | 47-63 Hz |
| Output voltage | +5V, +15V, -15V, +24V regulated DC |
| Number of channels | Multiple digital input and output channels |
| Communication protocols | VMEbus compliant, Ethernet, Profibus DP, Modbus TCP/IP |
| Operating temperature | 0 to 50 °C |
| Storage temperature | -20 to 70 °C |
| Humidity | 10 to 90% RH, non-condensing |
| Protection class | IP20 |
| Dimensions | 135 mm x 186 mm x 119 mm |
| Weight | 1.2 kg |
| Certifications | CE, UL, RoHS |
Core Advantages and Technical Highlights
High Performance and Reliability: The AMAT 0100-71275 offers robust performance and reliability, ensuring stable operation of control modules in various industrial applications.
Flexible Configuration: The unit supports multiple digital input and output channels, providing scalable power distribution and communication capabilities.
Advanced Communication: The unit supports multiple communication protocols, including VMEbus, Ethernet, Profibus DP, and Modbus TCP/IP, facilitating integration with existing industrial networks.
User-Friendly Design: The rear-mounted design of the AMAT 0100-71275 allows for easy integration into standard industrial control cabinets, simplifying installation and maintenance.
Typical Application Scenarios
The AMAT 0100-71275 is widely used in various industrial sectors, including:
-
Semiconductor Manufacturing: Used in CVD equipment for real-time control and data processing.
-
Process Automation Systems: Housing modules for control and monitoring in industrial processes.
-
Power Plants: Supporting controllers and I/O modules in power generation environments.
Installation Commissioning and Maintenance Instructions
Installation Preparation
Before installing the AMAT 0100-71275, ensure that the environment meets the specified requirements, including an operating temperature range of 0 to 50 °C. The installation location should be free from excessive dust, moisture, and corrosive gases to ensure long-term reliability. Use a standard 483 mm (19-in.) cabinet for secure installation.
Maintenance Suggestions
To maintain the AMAT 0100-71275, perform regular inspections of the unit and its connections to ensure they are secure and free from corrosion. Clean the unit regularly with a soft, dry cloth to remove dust and debris. If any issues arise, refer to the troubleshooting guide in the user manual for common solutions. Replace any worn or damaged parts promptly to ensure continued performance.
