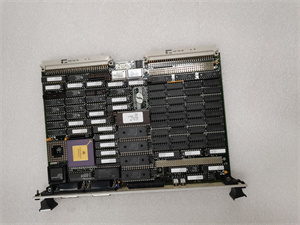

AMAT 0090-76110 VME PCB Controller

The AMAT 0090-76110 VME PCB Controller is a high-performance printed circuit board (PCB) module designed for use in VME systems, catering to a wide range of industrial control, data acquisition, and signal processing applications. This controller combines advanced hardware specifications with robust design to deliver reliable and efficient operation in demanding environments.

Key Features

1. High-Performance Processor
   • Motorola PowerPC 7457 Processor: Equipped with a 1 GHz processor, the 0090-76110 ensures rapid data processing and real-time control capabilities, making it suitable for high-speed industrial applications.
2. Ample Memory Capacity
   • Up to 512 MB SDRAM and 2 GB Flash Memory: Provides sufficient storage for complex control algorithms, data logging, and firmware updates, ensuring seamless operation even with large-scale applications.
3. Versatile I/O Interfaces
   • Multiple Interface Support: Includes serial, parallel, USB, and PCI interfaces, facilitating easy connectivity with various industrial devices and peripherals.
4. Wide Operating Temperature Range
   • -40°C to +85°C: The controller is designed to withstand extreme temperatures, making it suitable for both indoor and outdoor industrial environments.
5. High-Quality Construction
   • FR4 Material with OSP Solder Mask: The PCB is constructed using FR4 material, known for its excellent electrical and mechanical properties. The OSP (Organic Solderability Preservative) solder mask enhances solderability and protects against corrosion.
6. Compact and Lightweight Design
   • Dimensions: 233.4 mm x 160 mm, Weight: 0.5 kg: The compact form factor allows for easy integration into space-constrained industrial systems while maintaining portability.
7. Low Power Consumption
   • 25 W Power Consumption: The controller operates efficiently, consuming minimal power while delivering high performance, which helps reduce energy costs and heat generation.

Technical Specifications

• Processor: Motorola PowerPC 7457, 1 GHz
• Memory: Up to 512 MB SDRAM, 2 GB Flash
• I/O Interfaces: Serial, Parallel, USB, PCI
• Dimensions: 233.4 mm x 160 mm
• Weight: 0.5 kg
• Operating Temperature: -40°C to +85°C
• Power Consumption: 25 W
• PCB Material: FR4
• Surface Finish: Gold Immersion (ENIG)
• Solder Mask: OSP
• Minimum Line Width/Spacing: 5 μm/5 μm
• Board Thickness: 1.6 mm

Applications

The AMAT 0090-76110 VME PCB Controller is ideal for a variety of industrial applications, including:

• Industrial Automation: For controlling and monitoring manufacturing processes.
• Data Acquisition Systems: For collecting and processing real-time data from sensors and instruments.
• Signal Processing: In applications requiring high-speed signal analysis and manipulation.
• Test and Measurement Equipment: For precision testing and calibration of industrial devices.
• Military and Aerospace: In systems requiring high reliability and ruggedness.

Advantages

• High Reliability: Built with industrial-grade components, the controller offers long-term stability and minimal downtime.
• Scalability: The versatile I/O interfaces and ample memory allow for easy integration and expansion in complex systems.
• Cost-Effective: Combines high performance with competitive pricing, making it an excellent value for industrial applications.
• Global Support: Benefit from AMAT’s global network of technical support and service centers.

Conclusion

The AMAT 0090-76110 VME PCB Controller is a reliable and high-performance solution for industrial control and data processing applications. Its advanced features, robust design, and versatility make it an ideal choice for engineers and system integrators looking to enhance the capabilities of their industrial systems.

For more information or to request a quote, please contact AMAT or an authorized distributor.
