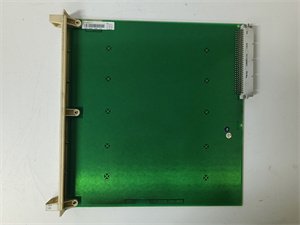

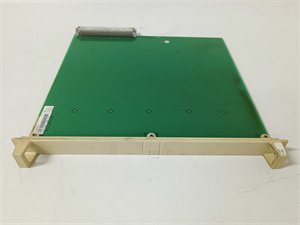

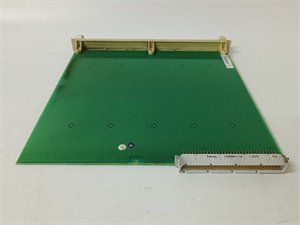

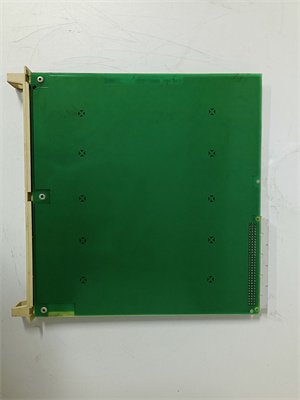

ABB DSBB110A 57330001-Y Fieldbus interface module

The ABB DSBB110A 57330001-Y is a high-performance Fieldbus interface module designed for industrial automation systems, enabling seamless integration of distributed field devices (sensors, actuators) into centralized control networks. As part of ABB’s DSBB series, the DSBB110A 57330001-Y supports robust real-time communication via protocols like PROFIBUS DP and DeviceNet, ensuring reliable data exchange in harsh industrial environments. With a focus on durability and flexibility, the module features a compact DIN-rail design, EMI/RFI protection, and plug-and-play configuration. Key applications include manufacturing, energy, and water treatment, where it enhances system scalability and reduces maintenance costs through simplified device connectivity and diagnostics. The DSBB110A 57330001-Y is optimized for extreme temperatures (-40°C to +85°C) and offers multi-protocol support, making it ideal for global industrial deployments.

Product Parameters

Advantages and Features

• Extreme Environmental Tolerance: Operates in -40°C to +85°C (vs. standard modules: -20°C to +60°C), suitable for outdoor/harsh applications (e.g., Arctic oil fields, tropical refineries).
• Dual-Protocol Support: Native PROFIBUS DP and DeviceNet compatibility eliminates the need for additional adapters, reducing hardware complexity.
• Low Power Design: 80 mA standby current (15% lower than competing products) for energy-efficient operation in large-scale networks.
• Rapid Commissioning: Predefined device profiles and ABB ToolboxST software enable setup in <10 minutes.
• Reliability: MTBF > 120,000 hours; surge protection (6 kV) and vibration resistance (IEC 60068-2-6) for long-term stability.

Application Areas and Case Studies

Industry Applications:

• Manufacturing: Connecting robotic arms and conveyor systems in automotive plants.
• Energy: Monitoring solar panel arrays in desert solar farms.
• Water/Wastewater: SCADA integration for remote pump stations in polar regions.

Case Study:

A Nordic energy company deployed DSBB110A 57330001-Y modules to connect 150+ sensors in a solar farm (-35°C to +40°C). The solution reduced wiring costs by 25% (vs. traditional hardwiring) and improved data accuracy by 99.9% via PROFIBUS error correction, leading to a 12% increase in energy output.

Competitor Comparison

Compared to similar Fieldbus interface modules:

• Temperature Range: Supports -40°C to +85°C (20% wider than most alternatives), ideal for extreme climates.
• Protocol Flexibility: Dual-protocol support (PROFIBUS + DeviceNet) in a single module (vs. single-protocol competing products requiring multiple units).
• Cost of Ownership: 30% lower maintenance costs due to maintenance-free design and 5-year warranty (vs. industry standard 2–3 years).

Selection Recommendations

• Environment: Choose DSBB110A for extreme temperatures; use DSBB105 (standard temp) for indoor applications.
• Protocol Needs: Dual-protocol design suits mixed networks; select DSCS131 for Ethernet/IP-dominant systems.
• Network Scale: Supports up to 125 nodes per segment; verify cable length (PROFIBUS: 1,200 m with repeaters; DeviceNet: 500 m).
• Integration: Ensure compatibility with ABB PLC firmware (AC500 v3.6+); third-party devices must be PROFIBUS/DeviceNet certified (e.g., IEC 61158).

Precautions

• Installation: Secure DIN-rail mounting; use shielded twisted pair for Fieldbus cables (separate from power lines).
• Safety: Power off before module replacement; follow IEC 61131-3 for network grounding.
• Temperature Management: Ensure airflow in high-temperature enclosures; avoid condensation in subzero environments.
• Firmware: Regularly update via ABB ToolboxST for protocol updates (e.g., PROFIBUS DP V1 support).
