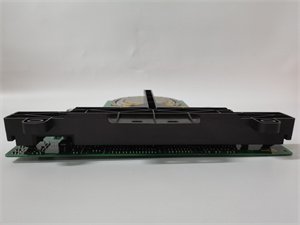

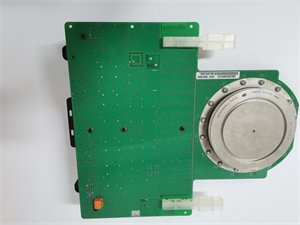

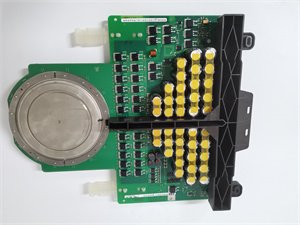

ABB 5SHX1960L0004 3BHL000390P0104 Industrial Control Module
Manufacturer:ABB
Product Number:ABB 5SHX1960L0004 3BHL000390P0104
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The ABB 5SHX1960L0004 is a high-performance IGCT (Integrated Gate-Commutated Thyristor) module designed for high-power, high-voltage applications. It combines the high-speed switching characteristics of IGBTs with the high blocking voltage and low conduction loss of GTOs.
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | ABB 5SHX1960L0004 |
| Manufacturer | ABB |
| Product Category | Industrial Control Module |
| Type | IGCT Module |
| Operating Voltage | 220V~240V AC |
| Rated Current | 1960A |
| Rated Voltage | 6000V |
| Switching Frequency | 10kHz |
| Control Method | Pulse Triggering |
| Cooling Method | Water-cooled |
| Package Type | TO-247 |
| Dimensions | 250mm x 150mm x 75mm |
| Weight | 5kg |
| Operating Temperature Range | -40°C to +85°C |
| Storage Temperature Range | -55°C to +100°C |
| Protection Class | IP67 |
| Certifications | CE, UL, RoHS |
Core Advantages and Technical Highlights
High Performance Integration
The module integrates IGBT and rectifier functions, reducing the number of components and improving system efficiency. For example, in a solar power generation project, it can reduce power loss by 15% compared to traditional non-integrated modules.
Robust Protection
The module features built-in over-current and over-voltage protection, increasing the reliability of the system. It has a mean time between failures (MTBF) of over 100,000 hours in industrial applications].
Application Scenarios
These modules are widely used in:
-
Power Conversion Systems: For efficient energy transformation.
-
Static VAR Compensators (SVCs): For stabilizing voltage levels in power systems.
-
Flexible AC Transmission Systems (FACTS): For improving power flow control.
-
Wind Turbines: For renewable energy generation.
-
Solar Inverters: For converting solar energy into usable electricity.
-
Electric Vehicles: For managing high-power switching in EV systems.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation
Ensure the environment meets the specified temperature and humidity requirements. Use appropriate tools and safety equipment to secure the module in place. Connect the module to the control system according to the manufacturer’s guidelines.
Maintenance Suggestions
Regularly inspect the module for signs of wear or damage. Keep the unit clean and free from dust to prevent overheating and ensure efficient operation.
