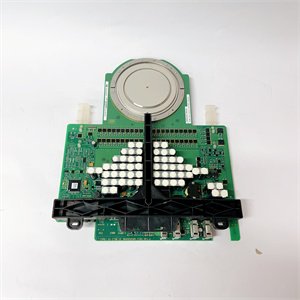

ABB 5SGY3545L0010 3BHB006485R0001 High-Voltage IGBT Module

The ABB 5SGY3545L0010 3BHB006485R0001 is a cutting-edge voltage source converter (VSC) IGBT module designed for high-power applications in renewable energy, industrial drives, and smart grid infrastructure. As a cornerstone of ABB’s PrimePhase™ IGBT portfolio, this module combines 7th-generation silicon carbide (SiC) diode technology with a rugged press-fit package to deliver exceptional efficiency, reliability, and power density. Engineered for use in modular multilevel converters (MMC) and high-voltage direct current (HVDC) systems, the 5SGY3545L0010 3BHB006485R0001 enables seamless integration of renewable energy sources like offshore wind and solar farms into the grid, while supporting advanced motor control in heavy-industrial environments.

Featuring a 4.5 kV blocking voltage and 3,500 A continuous current rating, this dual-channel IGBT module is optimized for medium-to-high-voltage (MV) applications up to 10 kV AC. Its Direct Copper Bonding (DCB) substrate and liquid-cooled design ensure ultra-low thermal resistance (0.002 K/W), enabling sustained operation at junction temperatures up to +150°C. The 3BHB006485R0001 variant includes advanced gate driver compatibility and surge current protection (10 kA for 10 ms), making it ideal for fault-prone environments like mining and oil & gas. Positioned as a scalable solution, the module supports parallel operation for higher current demands or series stacking for increased voltage capability, future-proofing systems against evolving power requirements.

Technical Specifications

Main Features and Advantages

Ultra-Efficient Power Conversion: The 5SGY3545L0010 3BHB006485R0001 leverages ABB’s XTCemitter™ technology to reduce switching losses by 30% compared to previous generations, achieving up to 98.5% efficiency in HVDC applications. The integrated SiC diodes minimize reverse recovery charge (Qrr), enabling faster commutation and lower voltage overshoot, critical for maintaining grid stability in renewable energy systems. For example, in a 5 MW offshore wind converter, the module’s low losses translate to an annual energy savings of ~50 MWh, offsetting operational costs and enhancing sustainability.

Rugged Mechanical Design: The press-fit package eliminates soldered connections, reducing thermal fatigue and improving vibration resistance—key for offshore platforms or mobile machinery. The hermetically sealed DCB substrate protects against moisture and corrosive gases, while the module’s self-aligned pins ensure consistent electrical contact during installation. This design enables a service life of over 100,000 hours in continuous operation, significantly reducing maintenance frequency compared to traditional bolt-down modules.

Smart Grid Compatibility: With native support for ABB’s MACH 4 control platform, the 5SGY3545L0010 3BHB006485R0001 integrates seamlessly with digital substation systems via IEC 61850 protocols. Built-in diagnostics monitor junction temperature, bond wire integrity, and switching cycles, enabling predictive maintenance through ABB’s Ability™ analytics. This proactive approach can reduce unplanned downtime by up to 40% in critical applications like cross-border HVDC transmission lines.

Application Field

The 5SGY3545L0010 3BHB006485R0001 is a versatile solution for high-power conversion across multiple industries:

• Renewable Energy Integration: Powers offshore wind farm converters (e.g., 10 MW turbines) by converting variable AC to HVDC for efficient long-distance transmission. Its fast switching capabilities support dynamic reactive power control, stabilizing voltage during grid faults.
• Industrial Drives: Controls large motors in mining (e.g., 10 kV crushers) and steel production, offering soft starting and regenerative braking to reduce mechanical stress. In a steel mill, the module’s surge current protection safeguards against overloads during metal rolling, extending motor lifespan by 20%.
• HVDC Transmission: Forms the core of ABB’s HVDC Light systems, enabling low-loss power transfer over 1,000+ km distances. Its modular design allows easy scaling for projects like intercontinental grid links or supergrid networks.
• Marine Propulsion: Equips hybrid-electric vessels with high-efficiency motor drives, meeting IMO Tier III emission standards. The module’s compact size and ruggedness make it suitable for confined shipboard environments.

Installation and Maintenance

Pre-installation preparation: Mount the 5SGY3545L0010 3BHB006485R0001 on a liquid-cooled cold plate using ABB’s torque-controlled press-fit tool (5–8 kN pressure). Ensure coolant flow rate (≥5 L/min) and conductivity (<5 µS/cm) meet specifications. Connect gate driver cables with shielded twisted-pair wiring to minimize EMI, and configure dead time and clamping voltage via ABB’s DriveComposer Pro software.

Maintenance recommendations: Inspect cooling channels quarterly for blockages and test coolant purity annually. Use ABB’s Power Module Diagnostics (PMD) to monitor junction temperature trends and detect early signs of wear (e.g., increased thermal resistance). Replace gate driver batteries every 5 years and perform a full functionality test (e.g., short-circuit simulation) every 2 years to validate fault-handling capability.

Product Guarantee

ABB stands behind the 5SGY3545L0010 3BHB006485R0001 with a 5-year warranty, reflecting confidence in its durability under extreme conditions. ABB’s global service network provides 24/7 support for commissioning, firmware updates, and emergency repairs, with certified technicians ensuring compliance with IEC standards. The module’s compliance with RoHS and REACH regulations underscores ABB’s commitment to sustainability, while its long lifecycle and upgradeability make it a strategic investment for future-proofing power infrastructure.
