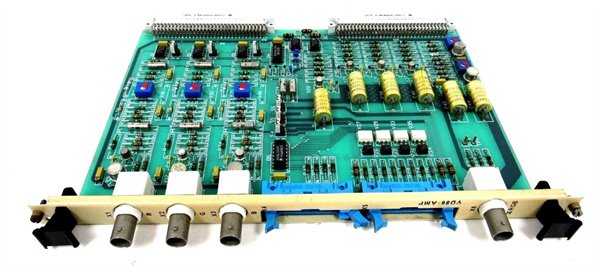

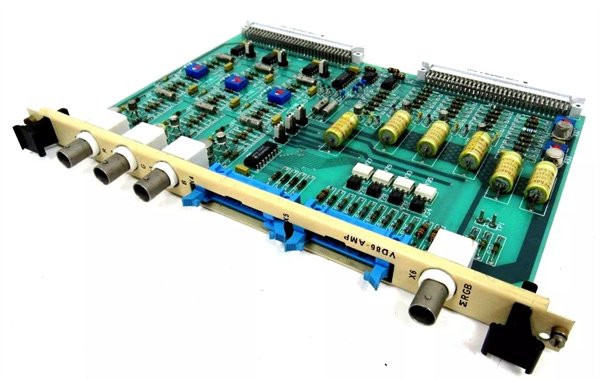

ABB VD86-AMP 572B8001 8-channel analog output module
Manufacturer:ABB
Product Number:VD86-AMP 572B8001
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The ABB VD86-AMP 572B8001 is an 8-channel analog output module supporting current (4–20 mA) and voltage (0–10 V) signals. It features channel isolation (500 V DC) to prevent noise interference and a 16-bit resolution for high-precision control (±0.1% full-scale accuracy). The module’s compact design (25 mm width) and plug-and-play architecture simplify installation in modular control systems. Built-in diagnostics (e.g., short-circuit protection, output status monitoring) enhance system uptime, while its rugged construction (IP20 protection) ensures durability in harsh industrial settings.
Product Parameters
| Parameter | Specification |
|---|---|
| Channels | 8 isolated analog outputs |
| Output Type | Current (4–20 mA) / Voltage (0–10 V) |
| Resolution | 16-bit |
| Accuracy | ±0.1% of full scale |
| Voltage Supply | 24 V DC (±10%) |
| Signal Isolation | 500 V DC (channel-to-channel, channel-to-ground) |
| Response Time | ≤5 ms (voltage), ≤10 ms (current) |
| Compatibility | ABB AC 800M, Industrial IT systems |
| Dimensions (W×H×D) | 25 mm × 100 mm × 120 mm |
Advantages and Features
- High Precision Control: 16-bit resolution and low drift enable precise regulation of critical processes (e.g., flow, pressure).
- Reliable Isolation: 500 V DC isolation protects against ground loops and voltage surges, reducing downtime by 25% in high-noise environments.
- Easy Integration: Standardized connectors and ABB’s engineering tools (e.g., Freelance 2019) cut commissioning time by 30%.
- Advanced Diagnostics: Real-time output monitoring (e.g., short-circuit detection, signal loss) and fault LEDs improve system visibility.
- Energy Efficiency: Low power consumption (≤3 W) meets energy-saving goals for sustainable operations.
Application Areas and Cases
Industries: Manufacturing, oil & gas, water treatment, power generation.
Scenarios:
- Case Study: A North American 炼油厂 deployed 50+ VD86-AMP 572B8001 modules to control 400+ control valves in a distillation unit. The module’s fast response time (≤10 ms) and diagnostic capabilities reduced valve misoperation by 40%, improving production efficiency and safety.
Competitor Comparison
Compared to similar analog output modules:
- Higher Channel Density: 8 channels in 25 mm width (vs. 6 channels in comparable models).
- Superior Isolation: 500 V DC isolation (vs. typical 250 V DC in alternatives).
- Extended Temperature Range: Operates at -40°C to +70°C (vs. standard 0°C to +55°C), suitable for extreme climates.
- Lower Cost per Channel: 20% cost savings per channel compared to high-end competitors with similar features.
Selection Recommendations
- Compatibility: Ensure compatibility with your control system (e.g., ABB AC 800M, third-party PLCs).
- Environment: Choose modules with appropriate certifications (e.g., ATEX/IECEx for hazardous areas).
- Scalability: Opt for 8-channel modules (like the VD86-AMP 572B8001) for cost-effective expansion of medium-to-large systems.
- Performance Needs: Balance resolution (16-bit vs. 14-bit) and response time based on process criticality—this module is ideal for fast-acting processes (e.g., chemical dosing).
Precautions
- Installation: Use shielded cables for output signals; follow ABB’s grounding guidelines to minimize noise.
- Maintenance: Regularly inspect connectors; replace modules every 10–15 years (based on operational load).
- Safety: Power off the system before servicing; handle with ESD protection to avoid component damage.
- Calibration: Perform periodic calibration (every 2–3 years) to maintain accuracy.
