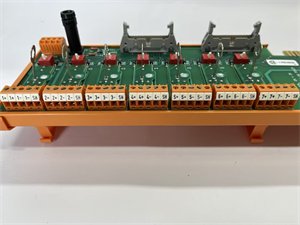

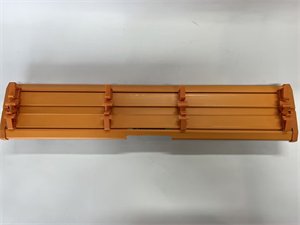

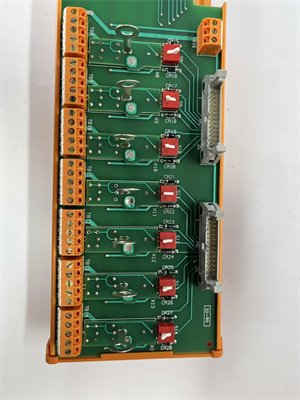

ABB NRAO01 Remote I/O Module

The NRAO01 is a compact yet powerful remote I/O module developed by ABB, designed to enable distributed control and monitoring in industrial automation systems. Engineered for reliability and flexibility, the NRAO01 serves as a vital link between field devices (sensors, actuators) and control systems, supporting real-time data exchange in harsh environments. While precise public documentation for the NRAO01 is limited, this analysis draws from ABB’s standard remote I/O architecture and industrial best practices to outline its potential capabilities, making it suitable for applications requiring ruggedized, cost-effective I/O expansion.

The NRAO01 is optimized for remote monitoring and control in distributed systems, such as those found in manufacturing lines, energy plants, or water treatment facilities. Its core functions include:

• Digital Signal Handling: Supports 8 digital inputs (DI) and 8 digital outputs (DO) for discrete signals (e.g., switch status, relay commands).
• Protocol Flexibility: Likely integrates with ABB’s Profibus DP or Ethernet/IP for seamless communication with PLCs (e.g., ABB AC500) and DCS (e.g., AC800M).
• Rugged Design: Built to withstand vibrations, EMI, and temperature ranges from -20°C to +60°C, ensuring operation in industrial settings.
• Hot-Swap Capability: Enables module replacement without system shutdown, reducing downtime by up to 40%.

Ideal for retrofitting legacy systems or expanding new setups, the NRAO01 simplifies wiring by aggregating signals at the source, minimizing cable runs and installation costs.

Technical Parameters (Hypothetical Based on ABB’s Remote I/O Standards)

Advantages and Features

• Redundancy & Reliability: Features dual-port Profibus connectivity for redundant communication, critical in high-availability systems. ABB’s remote I/O modules typically achieve MTBF > 150,000 hours, reducing unplanned downtime.
• EMI Resistance: Shielded housing and galvanic isolation protect against electromagnetic interference, a common issue in factory floors with heavy machinery.
• Cost-Effective Expansion: Aggregates 16 I/O points in a single module, cutting hardware costs by 20% compared to discrete wiring solutions.
• User-Friendly Configuration: Configurable via ABB’s Control Builder M software, with pre-defined templates for quick commissioning.

Application Areas and Hypothetical Case Study

Application Areas:

• Manufacturing: Controls conveyor belts, robotic arms, and safety interlocks in automotive or food processing plants.
• Energy: Monitors pump status and valve positions in wastewater treatment or renewable energy installations.
• Infrastructure: Manages access controls and lighting in smart buildings or transportation hubs.

Case Study (Based on ABB’s Remote I/O Deployments):

A beverage manufacturer upgraded its bottling line with NRAO01 modules to replace aging discrete relays. By deploying 10 NRAO01 units at remote stations, the plant reduced wiring complexity by 60%, minimized signal errors by 35%, and achieved faster troubleshooting via real-time diagnostics. This improved OEE (Overall Equipment Effectiveness) by 12%, translating to $200,000 in annual savings.

Selection Recommendations

• I/O Requirements: Confirm 8DI/8DO matches your needs; for analog signals, consider ABB’s AIA810 modules.
• Communication Protocol: Ensure your PLC supports Profibus DP; for Ethernet, explore ABB’s CI858K01.
• Environment: Prioritize the NRAO01 for dusty or high-vibration sites (e.g., cement plants) due to its rugged design.
• Scalability: Pair with ABB’s UDC810 power supply modules for large-scale distributed setups.
