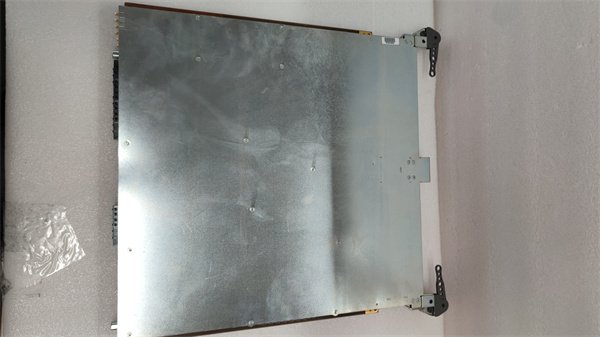

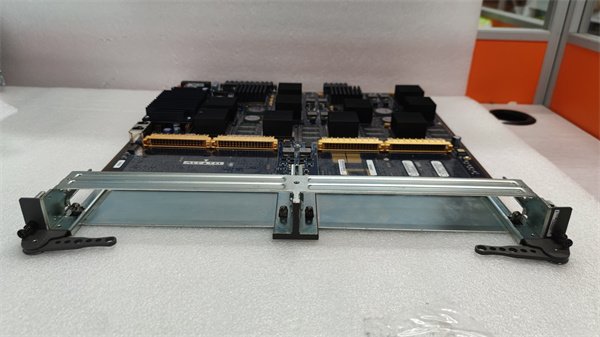

Alcatel-Lucent IOM2-20G Modular Gigabit Ethernet Switching Module

The Alcatel IOM2-20G is a high-density 20-port Gigabit Ethernet switching module designed for Alcatel-Lucent Enterprise’s (now ALE International) OmniSwitch 6900 series modular chassis. As a critical line card in enterprise core/distribution layers, it delivers non-blocking Layer 2/Layer 3 performance with wire-speed switching capacity up to 480 Gbps. Engineered for scalability, the Alcatel IOM2-20G supports advanced features including unified stacking (up to 10 chassis), dynamic routing protocols (OSPF, BGP), and granular QoS for latency-sensitive applications. Its 20x 10/100/1000BASE-T copper ports with PoE+ readiness (models ending with -P support 30W per port) enable flexible deployment for IP phones, wireless APs, and access devices. The module integrates seamlessly with OmniSwitch chassis (e.g., OS6900-U24X), providing redundant management and power for mission-critical networks. The Alcatel IOM2-20G is a cornerstone for modern data centers, campus backbones, and converged networks demanding high throughput, low latency, and carrier-class reliability.

Technical Specifications

Performance and Scalability: The Alcatel IOM2-20G delivers wire-speed switching across all 20 ports, eliminating bottlenecks for bandwidth-intensive applications. Its 480 Gbps fabric connectivity ensures seamless inter-module communication within the chassis. The module supports unified stacking via OmniSwitch Stack Fabric (OSSF), enabling simplified management of multi-chassis deployments as a single logical switch.

Advanced Networking Intelligence: Integrated Alcatel Operating System (AOS) supports dynamic routing (OSPF/BGP), VXLAN gateways for network virtualization, and policy-based QoS with eight hardware queues per port. This enables precise traffic prioritization for VoIP, video, and real-time applications.

Resilience and Security: Hitless failover is achieved through redundant management modules (MMs) and power supplies. Security features include MACsec encryption, ACLs with 4K entries, and role-based access control. The Alcatel IOM2-20G also offers comprehensive storm control and DHCP snooping to mitigate attacks.

Operational Efficiency: Energy Efficient Ethernet (EEE) reduces power consumption by up to 50% during low traffic. Hot-swappable design allows zero-downtime module replacement. For PoE variants (IOM2-20G-P), per-port power budgeting ensures optimal device support.

The Alcatel IOM2-20G excels in enterprise and service provider environments requiring high-density Gigabit access with robust uplinks. In campus networks, it serves as a distribution layer switch, aggregating traffic from access switches while providing PoE+ to wireless APs and IP phones across buildings. For data centers, it acts as a top-of-rack (ToR) module within the OS6900 chassis, connecting servers and storage with low-latency 10G uplinks.

Healthcare facilities leverage its QoS capabilities to prioritize medical imaging traffic and EHR systems, while education institutions use it for high-bandwidth lecture hall deployments. The Alcatel IOM2-20G is also ideal for industrial campuses requiring hardened switching (0°C operation) with advanced security for SCADA networks. Its stacking capability makes it suitable for municipal networks requiring scalable core infrastructure across dispersed locations.

Installation and Maintenance

Pre-installation preparation: Verify chassis compatibility and available slot. Ground the chassis and ensure redundant power supplies are installed. Prepare electrostatic discharge (ESD) wrist strap. Have AOS firmware and configuration files ready. For PoE models, confirm power budget adequacy.

Maintenance recommendations: Monitor module status via OmniVista’s dashboard, tracking temperature, fan health, and port errors. Schedule periodic firmware updates during maintenance windows using ALE’s validated releases. Clean air filters quarterly in dusty environments. For module replacement, use the chassis ejector levers and handle the Alcatel IOM2-20G by its edges only. Maintain configuration backups using OmniVista’s automated archiving.

Product Guarantee

ALE International provides a lifetime hardware warranty for the Alcatel IOM2-20G, covering defects in materials and workmanship for the product’s operational life. This includes next-business-day (NBD) advance hardware replacement for critical failures. Global technical support offers 24/7 assistance for configuration, troubleshooting, and firmware updates through ALE’s Network Services Platform (NSP). Software updates are accessible via the ALE support portal, ensuring continuous feature enhancements and security patches for the Alcatel IOM2-20G throughout its deployment lifecycle.
