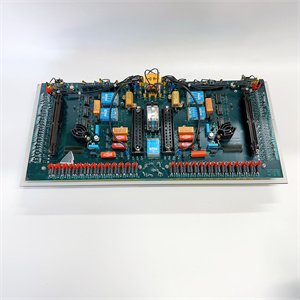

ABB BDD110 HNLP205879R1 Digital input module

The BDD110 HNLP205879R1 is ABB’s high-performance digital input module, engineered to serve as a reliable interface between field devices and industrial control systems. As a key component in ABB’s distributed control architecture, this module excels at converting discrete signals from sensors, switches, and actuators into digital data, enabling real-time monitoring of equipment status in automation processes.

What distinguishes the BDD110 HNLP205879R1 is its 16-channel design, which balances high-density connectivity with precise signal handling. Each channel operates independently, ensuring a single fault does not affect overall module performance. Equipped with PROFINET communication, the BDD110 HNLP205879R1 seamlessly integrates with ABB’s AC 800M DCS and third-party controllers, making it a versatile choice for modernizing legacy systems or building new automation networks. Its robust isolation and wide operating temperature range ensure consistent performance in harsh industrial environments, from chemical plants to automotive factories.

Detailed parameter table

Core advantages and technical highlights

High-speed signal processing: The BDD110 HNLP205879R1 features a response time of ≤1 ms, ensuring rapid detection of state changes in field devices. This speed is critical for applications like emergency stop systems, where a delay in signal transmission could lead to equipment damage or safety incidents. For example, in a packaging line, the module can instantly detect a jammed conveyor via a limit switch, triggering an immediate shutdown command through the control system.

Enhanced operational safety: With 2.5 kV AC isolation between channels and the backplane, the BDD110 HNLP205879R1 protects sensitive control circuitry from voltage transients and ground loops. This isolation is particularly valuable in facilities with mixed voltage systems, such as steel mills, where high-voltage machinery can induce noise in low-voltage signal lines. The module’s ATEX certification further allows deployment in Zone 2 hazardous areas, eliminating the need for additional explosion-proof enclosures.

PROFINET integration: The BDD110 HNLP205879R1 leverages PROFINET for communication, supporting fast data exchange and diagnostic capabilities. This protocol enables remote configuration and real-time status monitoring, reducing the need for on-site maintenance. In a water treatment plant, for instance, engineers can troubleshoot a faulty sensor by checking channel-specific diagnostics from the control room, minimizing downtime and improving troubleshooting efficiency.

Typical application scenarios

In automotive assembly plants, the BDD110 HNLP205879R1 monitors the status of robotic welding cells. It connects to proximity sensors that detect part presence, limit switches verifying fixture positions, and interlock switches ensuring safety gates are closed. The module’s fast response time ensures the control system receives immediate feedback, allowing it to adjust robot movements or halt operations if an anomaly is detected—preventing costly collisions or defective welds.

In chemical processing facilities, the BDD110 HNLP205879R1 integrates with level switches in storage tanks and pressure switches in pipelines. Its isolated channels protect against chemical-induced ground loops, while its wide temperature tolerance (-25°C to 70°C) withstands the heat generated by reaction vessels. PROFINET connectivity allows the module to transmit tank overflow alerts to the DCS, triggering automated valve closures to prevent spills and ensure regulatory compliance.

Installation, commissioning and maintenance instructions

Installation preparation: Before installing the BDD110 HNLP205879R1, ensure the DIN rail is securely mounted in a control cabinet with ambient temperature between -25°C and 70°C. Verify the power supply provides 24 V DC within the 18-30 V range and install a 0.5 A fuse in the supply line. Use 0.5-0.75 mm² shielded cables for field connections, grounding the shield at the cabinet end to minimize EMI. Required tools include a torque screwdriver (0.4-0.6 Nm), wire strippers, and a multimeter for continuity checks. Avoid mounting near high-voltage cables or motor drives.

Maintenance suggestions: Inspect the BDD110 HNLP205879R1 quarterly for loose terminal screws and dust accumulation, cleaning with compressed air if necessary. Test each channel monthly by applying a 24 V DC signal and verifying detection in the control system. Check PROFINET connectivity using network diagnostic tools to ensure <1% packet loss. If a channel fails, isolate the issue by testing with a known-good sensor; if the problem persists, replace the module with an ABB-certified spare. Calibrate the module annually using a signal generator to confirm response time remains ≤1 ms.
