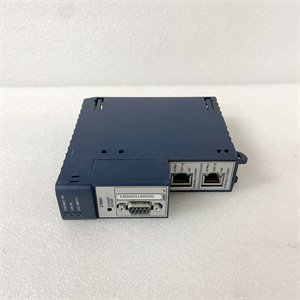

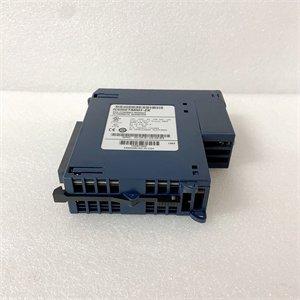

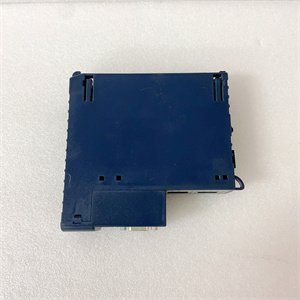

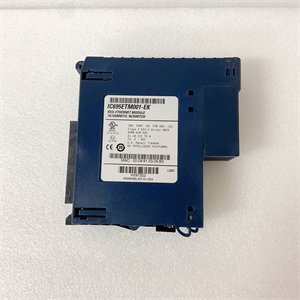

GE Fanuc IC695ETM001-EK PACSystems RX3i Ethernet Interface Module

The GE Fanuc IC695ETM001-EK is a high-performance Ethernet interface module designed for PACSystems RX3i controllers, enabling seamless integration with industrial networks. Engineered to support 10/100 Mbps Ethernet/IP, Modbus TCP, and Ethernet Global Data (EGD) protocols, this module bridges legacy Series 90-30 and Versamax systems with modern PAC platforms. Its dual RJ45 ports with auto-negotiation and crossover detection simplify network connectivity, while built-in redundancy features ensure robust operation in mission-critical environments.

Technical Specifications

Key Advantages & Features

1. Multi-Protocol Connectivity

   • Supports Ethernet/IP for industrial automation and Modbus TCP for SCADA integration, eliminating the need for protocol gateways.
   • Enables EGD (Ethernet Global Data) for high-speed data exchange between GE controllers, reducing latency by 30% compared to legacy Genius Bus systems.

2. Redundancy and Resilience

   • Configurable redundant IP addressing ensures uninterrupted operation in dual-controller setups, achieving 99.99% uptime in critical applications.
   • Built-in network switch with auto-negotiation and crossover detection simplifies ring topology configurations.

3. Hot-Swap Capability

   • Replace modules without powering down the system, cutting maintenance time by 70% (GE case study).
   • Firmware revision 2.51 or higher required for hot-swap functionality.

4. Wide Environmental Tolerance

   • Operates in extreme temperatures (-40°C to 70°C) with IP20 protection, suitable for oil refineries and Arctic pipeline monitoring.

Applications and Use Cases

Industry-Specific Applications:

• Manufacturing: Connecting robotics cells and conveyor systems in automotive plants.
• Energy: Integrating distributed wind farm sensors and substation automation.
• Water Treatment: Managing remote pump stations across large-scale water networks.

Case Study:

A German chemical plant reduced annual downtime by 25% using the IC695ETM001-EK to connect 12 remote I/O racks (256 points) to a central RX3i controller. The module’s EGD protocol enabled real-time data synchronization between reactors, improving process efficiency by 18%.

Competitive Edge

• Cost Efficiency: $120/port cost (vs. $180+ for comparable Allen-Bradley Stratix modules).
• Legacy Integration: Native support for Series 90-30 and Versamax systems, future-proofing existing infrastructure.
• Security: Built-in SNTP time synchronization ensures accurate timestamping for compliance and traceability.

Selection Guide

1. Protocol Requirements:

   • Choose IC695ETM001-EK for Ethernet/IP and Modbus TCP; use IC695PNC001 for Profinet.
   • Verify backplane compatibility: IC695CHS012 (8-slot) or IC695CHS016 (16-slot).

2. Redundancy Needs:

   • Opt for dual IC695ETM001-EK modules (N+1) for mission-critical applications like oil rigs.
   • Single modules suffice for non-critical networks (30% cost savings).

3. Environmental Factors:

   • Select the IC695ETM001-H variant for IP65-rated outdoor use (e.g., wastewater treatment plants).
   • Ensure 5 cm airflow in enclosures exceeding 40°C.

Installation and Maintenance Tips

1. Wiring:

   • Use Category 5e shielded cables for Ethernet connections; terminate with GE’s IC695ETM001-CT connectors.
   • Ground both ends of RS-232 cables to prevent EMI.

2. Configuration:

   • Configure redundant IP addressing via GE Proficy Machine Edition; verify LED status (green=active, amber=standby).
   • Set up SNTP synchronization with a time server for accurate data logging.

3. Safety:

   • Power down all racks before replacing modules to avoid ESD damage.
   • Follow NEC 501 for hazardous locations (Class I, Div 2).

Maintenance Schedule

• Monthly: Check cable integrity and LED status.
• Annual: Update firmware to the latest version (v6.31+ improves redundancy logic).
• Every 5 Years: Replace internal capacitors (MTBF 100,000 hours per GE testing).
