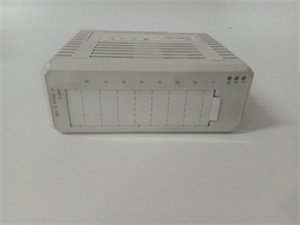

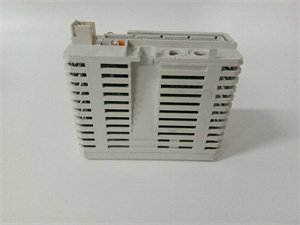

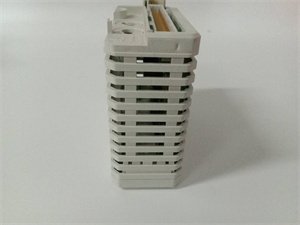

ABB AI810 3BSE008516R1 Analog Input Module

The ABB AI810 3BSE008516R1 is a high-precision analog input module designed for industrial automation systems. It is part of the ABB Ability™ System 800xA® family and offers reliable and accurate data acquisition for various industrial applications. With 8 input channels, the module supports a wide range of signal types, including 0(4)-20 mA, 0-10 V, 2-10 V, and 4-20 mA, making it highly versatile for different measurement requirements. The ABB AI810 features a 12-bit resolution and is optimized for single-ended inputs, ensuring precise and detailed acquisition of analog signals. Its robust design and wide operating temperature range make it suitable for demanding industrial environments.

Detailed Parameter Table

Core Advantages and Technical Highlights

High Precision and Reliability: The ABB AI810 3BSE008516R1 offers high-precision data acquisition with a 12-bit resolution and a maximum error of ±0.1%. It features PTC resistor protection, allowing it to handle short circuits to the transmitter supply without damage.

Fast Data Processing: With an update cycle time of 8 ms, the module provides real-time data processing capabilities, enabling quick response to process changes.

Flexible Signal Handling: Supporting multiple signal types, the ABB AI810 can be easily configured to meet various application requirements. It also supports HART communication, enhancing its compatibility with various sensors.

Robust Design: The module is designed for industrial environments, with an operating temperature range of 0°C to +55°C and a storage temperature range of -40°C to +70°C. Its IP20 protection rating ensures protection against dust and non-condensing moisture.

Easy Integration: The ABB AI810 integrates seamlessly with ABB’s System 800xA and other industrial control systems, simplifying setup and maintenance. It requires the use of Module Termination Units (e.g., TU810, TU812, TU814, TU818, TU830, TU833, TU835, TU838, TU850) for optimal performance.

Typical Application Scenarios

The ABB AI810 3BSE008516R1 is widely used in industries where precise analog signal acquisition is essential. In manufacturing plants, it monitors process variables such as temperature, pressure, and flow rates, enabling efficient process control and optimization. In energy management systems, the module collects data from sensors to monitor and manage energy consumption. It is also used in water treatment plants to monitor water quality parameters and control treatment processes. The ABB AI810 is an ideal solution for applications requiring high precision, fast data processing, and reliable performance.

Installation Commissioning and Maintenance Instructions

Installation Preparation: Before installing the ABB AI810 3BSE008516R1, ensure the environment meets the specified temperature and humidity requirements (0°C to +55°C, 5% to 95% RH non-condensing). Use shielded cables and proper grounding to minimize electromagnetic interference. Follow ABB’s guidelines for DIN rail mounting, ensuring proper ventilation and protection from dust.

Maintenance Suggestions: Regularly inspect connections for wear and clean the module with a static-free cloth to ensure optimal heat dissipation. Use ABB’s dedicated software for module configuration and firmware updates. Follow ABB’s guidelines for handling sensitive components, including anti-static measures during maintenance.

Service and Guarantee Commitment

ABB stands behind the quality and reliability of the ABB AI810 3BSE008516R1, offering a comprehensive warranty that covers manufacturing defects and performance issues for a specified period. Our dedicated after-sales support team is available to assist with technical inquiries and provide prompt solutions to ensure minimal disruption to your operations. We also offer extensive training and technical support services to help customers fully leverage the capabilities of the module, ensuring optimal performance and efficiency in their industrial applications.
