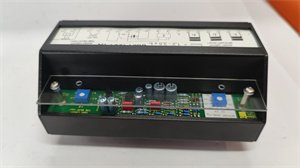

ABB CMA198 Industrial Control Module

The ABB CMA198 is a versatile industrial control module designed for precise measurement and control of electrical circuits. It is widely used in various industrial applications, including power generation, building automation, and water utilities. The module features high accuracy and reliability, with capabilities to measure current and voltage in a wide range of industrial environments. Its compact design and robust construction make it suitable for both indoor and outdoor use.

Detailed Parameter Table

Core Advantages and Technical Highlights

High Precision and Reliability: The ABB CMA198 offers high accuracy in measuring current and voltage, with an accuracy of ±0.5%. It is designed to operate reliably in a wide temperature range (-20°C to +60°C), making it suitable for harsh industrial conditions.

Versatile Communication Options: The module supports multiple communication protocols, including RS485 Modbus RTU and COMLI, enabling seamless integration with various industrial networks and systems.

Compact and Durable Design: The ABB CMA198 has a compact size (100 mm x 60 mm x 30 mm) and lightweight construction (0.3 kg), making it easy to install and integrate into control panels. Its IP20 protection class ensures durability in harsh industrial conditions.

Advanced Diagnostics: The module includes diagnostic features that provide real-time status monitoring and quick fault identification, reducing maintenance costs and improving system reliability.

Wide Application Range: The ABB CMA198 is suitable for a variety of applications, including industrial process control, energy management, building automation, and utility networks. It can measure currents up to 2000 A and voltages up to 600 VAC, making it ideal for high-power industrial applications.

Typical Application Scenarios

The ABB CMA198 is widely used across various industrial sectors. In power generation, it is employed for monitoring and controlling electrical circuits to ensure safe and efficient operation. In building automation, it is used for energy management and monitoring of electrical systems. In water utilities, it helps in monitoring and controlling the flow of water and wastewater. The module’s ability to operate in a wide temperature range and its compact design make it suitable for both indoor and outdoor applications.

Installation Commissioning and Maintenance Instructions

Installation Preparation

Before installing the ABB CMA198, ensure that the environment meets the specified requirements, including an operating temperature range of -20°C to +60°C. The installation location should be free from excessive dust, moisture, and corrosive gases to ensure long-term reliability. Use a standard DIN rail or panel mount for secure installation.

Maintenance Suggestions

To maintain the ABB CMA198, perform regular inspections of the module and its connections to ensure they are secure and free from corrosion. Clean the unit regularly with a soft, dry cloth to remove dust and debris. If any issues arise, refer to the troubleshooting guide in the user manual for common solutions. Replace any worn or damaged parts promptly to ensure continued performance. Regularly update the firmware to benefit from the latest enhancements and security features. By following these maintenance tips, you can ensure the long-term reliability and optimal performance of the ABB CMA198.

Service and Guarantee Commitment

The ABB CMA198 is backed by ABB’s commitment to quality and customer satisfaction. ABB offers a comprehensive warranty that covers manufacturing defects and ensures the product meets the highest standards of reliability. In addition to the warranty, ABB provides extensive after-sales support, including technical assistance and spare parts availability. This commitment ensures that customers receive reliable and efficient support throughout the product’s lifecycle, giving them confidence in their investment.
