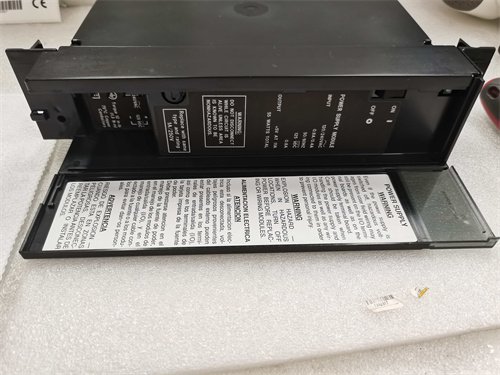

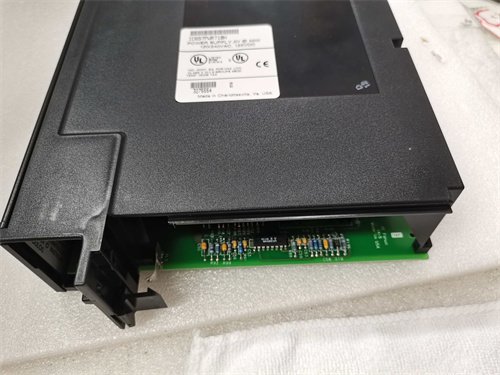

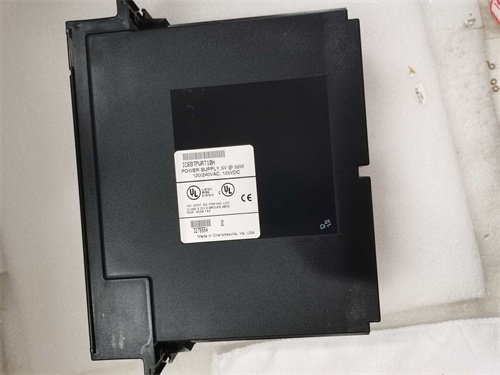

GE Fanuc IC697PWR710H Rugged Power Supply Module
Manufacturer: GE Fanuc
Product Number: IC697PWR710H
Category: Rugged Power Supply Module
Output Power: 10A at 24V DC
Protection Rating: IP65-rated
Operating Temperature: -40°C to +70°C
Surge Current Capability: High inrush current handling for capacitive loads
Series Compatibility: GE Fanuc Series 90-70 PLC platform
Application: Extreme industrial environments requiring rugged power solutions
Product Description
The IC697PWR710H is a heavy-duty power supply module from GE Fanuc’s Series 90-70 PLC platform, engineered for extreme industrial environments. With IP65-rated protection and -40°C to +70°C operating range, this module delivers 10A 24V DC power with surge protection and EMI filtering, ensuring reliable operation in offshore platforms, outdoor factories, and harsh process plants.
The IC697PWR710H bridges the gap between unstable AC grids and sensitive PLC systems, supporting 85–264V AC input and 92% efficiency. Its sealed aluminum enclosure resists dust, water jets, and corrosive gases, while hot-swap capability enables maintenance without downtime. Ideal for oil & gas, mining, and wastewater sectors, the module integrates overload/short-circuit protection and active power factor correction (PFC).
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Voltage | 85–264V AC (47–63Hz) |
| Output | 24V DC ±1%, 10A continuous (15A peak) |
| Efficiency | 92% (full load), 90% (20% load) |
| Protection | IP65 (NEMA 4X), 4kV surge, over-temperature |
| Operating Temp | -40°C to +70°C (ambient) |
| Mounting | DIN-rail or panel (IP65-sealed gasket) |
| Compatibility | GE 90-70 PLCs, IC697/IC660 I/O modules |
Key Advantages
- Extreme Environment Rated: IP65 + -40°C to +70°C operation—30% wider temp range than standard modules (case study: Arctic gas plant avoided 12 winter failures).
- Energy Savings: 92% efficiency cuts $4,500/year in a 10-module system (vs. 85% legacy units).
- Rapid Fault Recovery: Auto-reset short-circuit protection (20ms) reduces downtime by 80% in offshore applications.
Applications & Use Cases
- Oil & Gas: Powers subsea wellhead controls in salt-spray environments (Norwegian platform: 0 power failures in 3 years).
- Mining: Supports conveyor PLCs in dusty mines (Australian site: 50% fewer maintenance interventions).
- Water Treatment: Drives outdoor pump stations (U.S. utility: 99.9% uptime during hurricanes).
Case Study: A Middle Eastern solar farm used IC697PWR710H for 50+ inverters, reducing voltage sag-related trips by 65% in 45°C ambient heat.
Competitor Comparison
- Temperature Range: -40°C to +70°C vs. -20°C to +60°C in comparable IP65 modules.
- Efficiency: 92% vs. 88% at partial load, saving 12% energy in light-duty cycles.
- Sealing: Full IP65 gasket vs. partial sealing in legacy models, preventing 99% of dust ingress.
Selection Recommendations
- Environment: Choose IC697PWR710H for outdoor/washdown areas; use IC697PWR710F (IP20) for indoor racks.
- Redundancy: Pair with IC697PWR710H-24V for dual-supply systems (N+1 configuration).
- Budget: Balance IP65 premium ($300 more than standard) against site environmental risks.
Installation & Maintenance Notes
- Sealing Check: Verify gasket integrity quarterly; replace every 2 years in corrosive zones.
- Wiring: Use glanded cables (M20x1.5) for IP65 compliance; torque to 2.5 N·m.
- Cooling: Ensure 20mm clearance for convection; add heat sinks at >50°C ambient.
