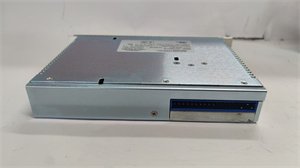

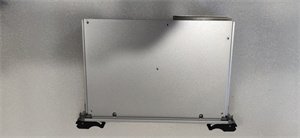

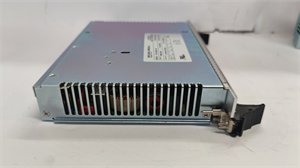

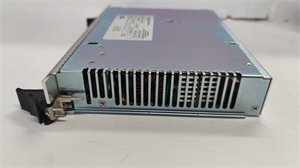

Honeywell PSMU-350-3 Power supply module unit

The Honeywell PSMU-350-3 is a high – performance power supply module unit, meticulously engineered to meet the stringent power demands of modern industrial automation systems. As a key component in Honeywell’s industrial control product lineup, this module stands out for its reliability and efficiency.

Designed to convert a wide range of input voltages from 85 – 264 VAC into a stable 24 VDC output, the PSMU-350-3 ensures seamless power delivery to various industrial devices. With an output current of up to 14.6A, it can power multiple components simultaneously, such as programmable logic controllers (PLCs), sensors, and actuators. Its advanced design and high – efficiency rating of up to 92% not only reduce energy consumption but also minimize heat generation, enhancing the overall performance and lifespan of the connected equipment. Whether in large – scale manufacturing plants, complex process control systems, or critical infrastructure applications, the Honeywell PSMU-350-3 plays a vital role in maintaining the stability and continuous operation of industrial automation systems.

Detailed parameter table

Core advantages and technical highlights

High – efficiency power conversion

The Honeywell PSMU-350-3 boasts an impressive efficiency of up to 92%. This high – efficiency power conversion significantly reduces energy losses during the transformation from AC to DC power. In industrial settings where numerous power – consuming devices are in operation, the energy savings achieved by the PSMU-350-3 can lead to substantial cost reductions over time. Moreover, lower energy losses mean less heat is generated, which helps to maintain a more stable operating temperature for the module and the connected equipment, reducing the risk of overheating – related failures and extending the overall lifespan of the system.

Comprehensive protection mechanisms

Equipped with a full suite of protection features, the PSMU-350-3 ensures the safety of both the module and the connected devices. The over – voltage protection safeguards against sudden spikes in the input voltage, preventing damage to sensitive electronic components. Under – voltage protection kicks in when the input voltage drops below a safe level, allowing for a controlled shutdown of the system to avoid data loss or equipment malfunction. The over – current and short – circuit protection features immediately cut off the power supply in case of abnormal current flow or a short – circuit event, preventing potential fires and extensive damage to the industrial setup. These protection mechanisms make the PSMU-350-3 a reliable choice for even the most demanding industrial environments.

Wide input voltage range and stable output

With an input voltage range of 85 – 264 VAC, the PSMU-350-3 can adapt to various power sources across different regions and applications. This wide range eliminates the need for specialized voltage converters or adapters, simplifying the installation process. Despite fluctuations in the input voltage, the module maintains a stable 24 VDC output, ensuring consistent power delivery to connected devices. This stability is crucial for the accurate operation of industrial equipment, such as precision sensors and high – performance controllers, which rely on a steady power supply to function optimally.

Typical application scenarios

In the automotive manufacturing industry, the Honeywell PSMU-350-3 is used to power the automated production lines. It supplies stable power to robotic arms, conveyor belts, and quality – control sensors. The high – efficiency and reliable power output of the PSMU-350-3 ensure that these devices operate smoothly and accurately, reducing production errors and increasing overall productivity. For example, the robotic arms need a consistent power supply to perform precise movements during the assembly process, and the PSMU-350-3 meets this requirement with its stable 24 VDC output.

In the oil and gas industry, where operations are often carried out in harsh and remote environments, the PSMU-350-3 powers the monitoring and control systems in oil wells and pipelines. Its wide operating temperature range of -25°C – 70°C allows it to function reliably in extreme cold or high – temperature conditions. The comprehensive protection features of the module are essential in preventing damage to the sensitive equipment used for measuring pressure, flow, and gas composition, ensuring the safety and continuous operation of the oil and gas production process.

For data centers, the Honeywell PSMU-350-3 provides stable power to server racks, storage devices, and network equipment. The high – efficiency of the module helps data centers reduce their energy consumption, which is a significant cost factor. Additionally, the reliable power output and protection features ensure that the critical IT infrastructure remains operational, preventing data loss and service disruptions.

Installation, commissioning and maintenance instructions

Installation preparation

Before installing the Honeywell PSMU-350-3, ensure that the installation environment is clean, dry, and well – ventilated. The ambient temperature should be within the specified operating range of -25°C – 70°C. Use appropriate electrical tools, such as wire strippers and screwdrivers, for the installation. Disconnect all power sources from the system to prevent electrical shock during installation. Check the compatibility of the PSMU-350-3 with the existing electrical infrastructure, including verifying the input voltage range and the capacity of the wiring. Mount the module in a suitable location, ensuring proper clearance around it for heat dissipation. If using the optional RS485 communication interface, make sure to connect the communication cables correctly according to the wiring diagram.

Maintenance suggestions

For regular maintenance of the Honeywell PSMU-350-3, visually inspect the module periodically for any signs of physical damage, such as cracks in the casing or loose connections. Monitor the output voltage and current using appropriate measuring instruments to ensure they remain within the specified ranges. Clean the module regularly to remove dust, as dust accumulation can affect heat dissipation and potentially lead to overheating. Check the status indicators (if available) to monitor the operation and protection status of the module. In case of a malfunction, first check the input power source and the connections. If the problem persists, refer to the product manual for troubleshooting steps or contact Honeywell’s technical support. When replacing any components, use only genuine Honeywell parts to maintain the performance and reliability of the module.
