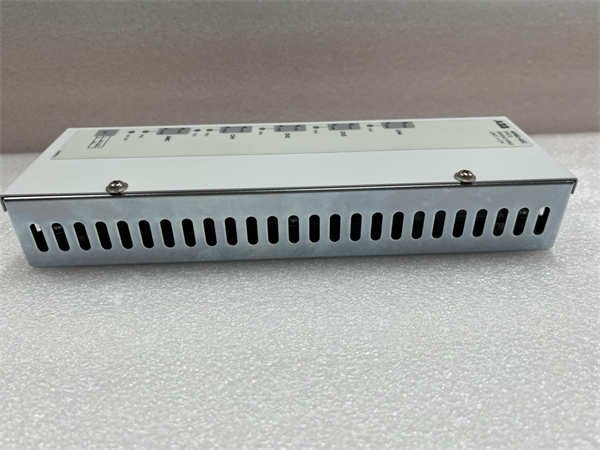

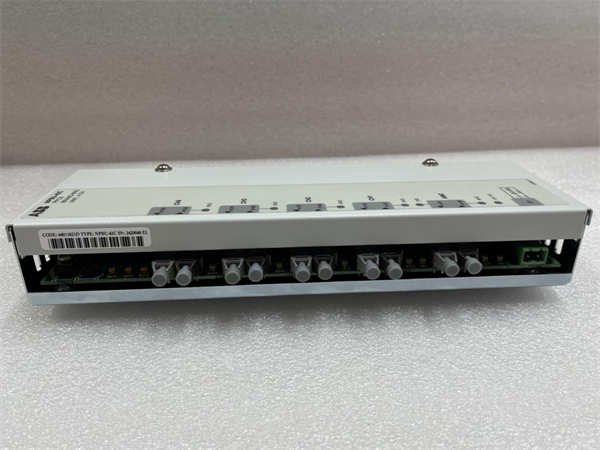

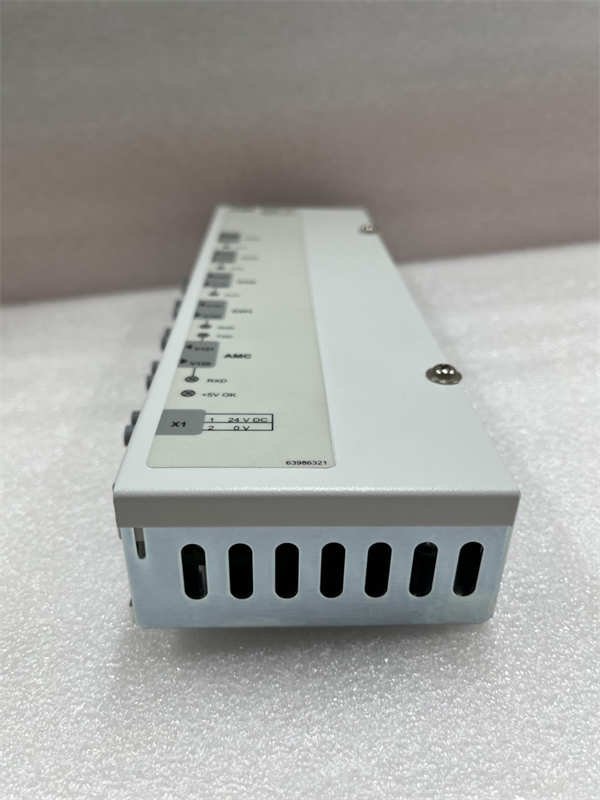

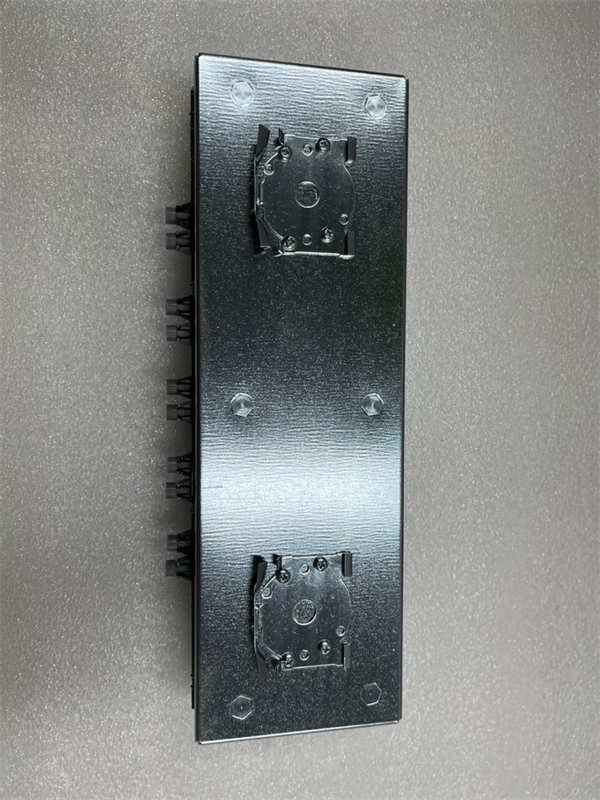

ABB NPBU-42C Industrial Control Module

The ABB NPBU-42C is a high-performance branching unit designed for seamless integration into complex industrial control systems. It provides reliable data transmission and enhanced operational efficiency, making it an ideal solution for various industrial automation applications. The NPBU-42C is part of the ABB PPCS (Power and Process Control Systems) series, offering advanced control and flexibility in managing signal distributions.

Detailed Parameter Table

Core Advantages and Technical Highlights

High Reliability and Durability:

• The ABB NPBU-42C is designed for harsh industrial environments, with an operating temperature range of -25°C to +70°C. It features a robust IP20-rated enclosure, ensuring long-term durability.

Advanced Communication Capabilities:

• The module supports multiple communication protocols, including Modbus TCP/IP, Ethernet/IP, and RS485, ensuring seamless integration with existing control systems.

Compact and Modular Design:

• The ABB NPBU-42C features a compact design (220 mm x 100 mm x 100 mm) and weighs only 1.2 kg, making it easy to install and maintain. Its modular design allows for flexible configuration to meet diverse automation requirements.

Energy Efficiency:

• With a typical power consumption of only 5W, the ABB NPBU-42C is designed to optimize energy use without compromising performance.

Typical Application Scenarios

The ABB NPBU-42C is widely used across various industrial sectors:

• Manufacturing Automation: For precise control of motors in production lines, ensuring high efficiency and reliability.

• Energy Management: Used in power plants and substations to optimize the performance of electrical equipment.

• Logistics: In material handling systems, such as conveyor belts and robotic arms, to ensure smooth and efficient operation.

• Process Control: For monitoring and controlling key parameters in industrial processes, such as temperature, pressure, and flow.

Installation Commissioning, and Maintenance Instructions

Installation Preparation:

• Ensure the installation environment meets the specified temperature and humidity requirements. The branching unit should be installed in a location with adequate ventilation to dissipate heat. Verify that the power supply voltage is within the specified range (24V DC) to avoid damage to the module.

Maintenance Suggestions:

• Regularly inspect the installation to ensure the branching unit is securely mounted and all connections are tight. Monitor the operational status of the module to detect any signs of malfunction early. Conduct functional testing on the module at least once a year to ensure optimal performance.

Service and Guarantee Commitment

ABB provides comprehensive support for the ABB NPBU-42C, including a robust warranty that ensures product quality and reliability. The company offers extensive after-sales services such as technical support, repair services, and spare part supply. ABB’s global network of service centers ensures prompt assistance and expert guidance, demonstrating the company’s commitment to customer satisfaction and product excellence.
