ABB CM579-PNIO 1SAP170901R0001 Communication Module

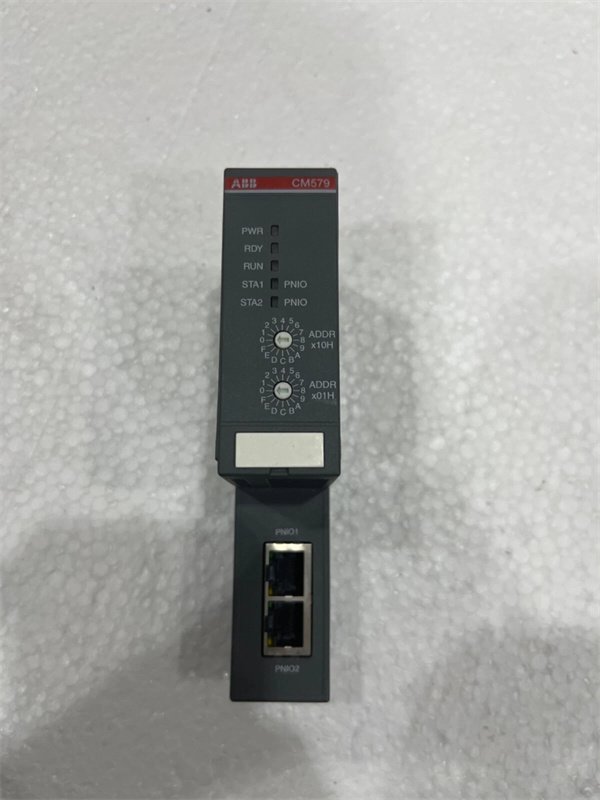

The ABB CM579-PNIO 1SAP170901R0001 is a high-performance PROFINET IO RT communication module designed for seamless integration into industrial automation systems. It serves as a real-time controller with an integrated 2-port switch, providing efficient data exchange and control over Ethernet-based networks. This module is part of ABB’s AC500 series, known for its reliability and scalability in various industrial applications.

Featuring two RJ45 Ethernet interfaces, the ABB CM579-PNIO supports a maximum transfer rate of 100 Mbit/s, ensuring fast and reliable communication. It is equipped with five LEDs for real-time status monitoring, making it easy to diagnose and maintain. The module also supports a wide range of protocols, including RTC, RTA, DCP, CL-RPC, LLDP, and SNMP, enhancing its versatility and compatibility.

In an automation system, the ABB CM579-PNIO acts as a key component for connecting PLCs, sensors, actuators, and other devices on a PROFINET network. Its robust design and wide operating temperature range make it suitable for both indoor and outdoor applications. With its compact size and IP20 protection class, it can be easily mounted on a DIN rail, ensuring secure and reliable operation.

Detailed Parameter Table

Core Advantages and Technical Highlights

The ABB CM579-PNIO 1SAP170901R0001 offers several key advantages that make it a standout choice for industrial communication needs.

High Performance and Reliability: The ABB CM579-PNIO supports a transfer rate of 100 Mbit/s, ensuring fast and efficient communication on the PROFINET network. Its robust design and wide operating temperature range (-40°C to +70°C) make it suitable for use in challenging industrial environments. The module also features a high mean time between failures (MTBF), ensuring long-term reliability.

Easy Integration and Compatibility: The ABB CM579-PNIO is designed to seamlessly integrate with ABB’s AC500 series of PLCs and other industrial devices. Its two RJ45 Ethernet interfaces and integrated 2-port switch provide flexible connection options, while its support for multiple protocols ensures compatibility with a wide range of systems.

User-Friendly Design: The ABB CM579-PNIO features five LEDs for real-time status monitoring, making it easy to identify and resolve issues quickly. Its compact size (62 mm x 135 mm x 28 mm) and lightweight design (approx. 170 g) make it easy to install and integrate into existing systems. The module also features a simple plug-and-play installation process, reducing setup time and effort.

Advanced Protection and Durability: The ABB CM579-PNIO is designed with a protection class of IP20, ensuring it is protected against dust and indirect contact. It also features vibration resistance and shock resistance, making it highly durable. The module operates reliably within a wide voltage range (24 V DC ±10%) and can withstand power interruptions of up to 10 ms.

Typical Application Scenarios

The ABB CM579-PNIO 1SAP170901R0001 is widely used in various industrial applications where reliable and efficient communication is critical. In manufacturing plants, it is used to connect PLCs with sensors, actuators, and other devices on the factory floor, enabling seamless data exchange and control. In the automotive industry, the ABB CM579-PNIO is employed in assembly lines to facilitate real-time communication between robotic systems and control units. In food and beverage processing facilities, it ensures precise control and monitoring of production processes by connecting various equipment on a PROFINET network. The module’s ability to operate in a wide temperature range and its rugged design make it suitable for outdoor applications, such as in oil and gas refineries.

Installation Commissioning and Maintenance Instructions

Installation Preparation

Before installing the ABB CM579-PNIO 1SAP170901R0001, ensure that the environment meets the specified requirements, including an operating temperature range of 0°C to +60°C (horizontal mounting) or 0°C to +40°C (vertical mounting). The installation location should be free from excessive dust, moisture, and corrosive gases to ensure long-term reliability. Use a standard DIN rail for mounting the module, ensuring it is securely fastened. Always follow the manufacturer’s guidelines for proper installation to avoid damage to the device.

Maintenance Suggestions

To maintain the ABB CM579-PNIO 1SAP170901R0001, perform regular inspections of the module and its connections to ensure they are secure and free from corrosion. Clean the module regularly with a soft, dry cloth to remove dust and debris. If any issues arise, refer to the troubleshooting guide in the user manual for common solutions. Replace any worn or damaged parts promptly to ensure continued performance. Regularly update the firmware to benefit from the latest enhancements and security features. By following these maintenance tips, you can ensure the long-term reliability and optimal performance of the ABB CM579-PNIO 1SAP170901R0001.

Service and Guarantee Commitment

The ABB CM579-PNIO 1SAP170901R0001 is backed by ABB’s commitment to quality and customer satisfaction. ABB offers a comprehensive warranty that covers manufacturing defects and ensures the product meets the highest standards of reliability. In addition to the warranty, ABB provides extensive after-sales support, including technical assistance and spare parts availability. This commitment ensures that customers receive reliable and efficient support throughout the product’s lifecycle, giving them confidence in their investment.
