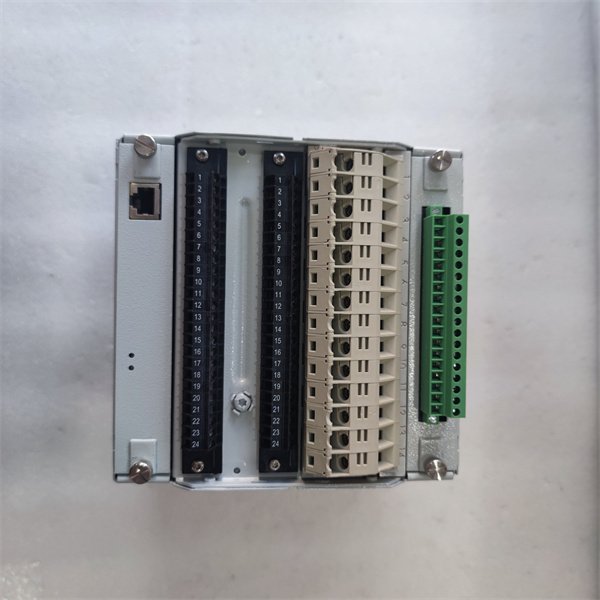

ABB MCU2A01C0-4 Motor Control Unit

The ABB MCU2A01C0-4 is a compact and versatile motor control unit (MCU) designed for precise speed and torque control of single-phase and three-phase induction motors in industrial automation systems. Engineered as part of ABB’s Drive Products portfolio, this module serves as a critical interface between control systems and motors, enabling efficient power conversion and real-time monitoring in applications ranging from conveyor belts to pumps and fans. The ABB MCU2A01C0-4 combines advanced control algorithms with a robust hardware design, making it ideal for small-to-medium scale projects requiring reliable performance and energy efficiency.

Featuring a user-friendly interface and flexible configuration options, the MCU2A01C0-4 supports both V/f control for basic speed regulation and sensorless vector control for higher precision torque management. Its wide input voltage range (200–240 V AC) and compact form factor (120 mm width) allow for easy integration into space-constrained control panels, while built-in protection functions (overvoltage, overcurrent, thermal overload) ensure safe operation in harsh environments. The module’s compatibility with Modbus RTU and CANopen protocols enables seamless connectivity with PLCs, HMIs, and SCADA systems, facilitating centralized automation and remote diagnostics.

Detailed Parameter Table

Core Advantages and Technical Highlights

Precision Control Algorithms: The ABB MCU2A01C0-4 leverages sensorless vector control to achieve up to 1% speed regulation accuracy, making it suitable for applications requiring consistent motor performance, such as packaging machines or textile mills. In a food processing plant, this feature reduced product variability by 15% in conveyor belt speed control, ensuring uniform product spacing and minimizing waste.

Energy Efficiency: The module’s dynamic braking and sleep mode functions optimize power consumption, with reported energy savings of up to 30% in pump applications compared to traditional on/off control. A wastewater treatment facility used the MCU2A01C0-4 to adjust pump speed based on inflow rates, reducing annual energy costs by $12,000 while extending pump lifespan through reduced mechanical stress.

Rugged and Compact Design: Built with a reinforced thermoplastic housing, the MCU2A01C0-4 withstands vibration (2g peak) and humidity (95% RH non-condensing), making it suitable for industrial environments. Its DIN rail-mountable design allows for quick installation and hot-swappable maintenance, as demonstrated in a bottling plant where a faulty module was replaced in under 10 minutes without disrupting production.

Ease of Integration: The module’s pluggable terminal blocks and intuitive parameter setup via ABB’s DriveWindow software reduce commissioning time by 40%. A small-scale manufacturing facility used the built-in Modbus RTU interface to connect the MCU2A01C0-4 to a Siemens PLC, enabling real-time speed adjustments and fault logging for a multi-motor assembly line.

Typical Application Scenarios

Manufacturing Automation: In automotive component production, the ABB MCU2A01C0-4 controls conveyor belts and robotic arm actuators with sensorless vector control, ensuring precise positioning and reducing cycle times by 12%. A furniture factory employed the module’s V/f control mode to operate woodworking machinery, achieving smooth speed transitions and minimizing tool wear.

HVAC Systems: For commercial buildings, the MCU2A01C0-4 optimizes fan and pump performance in HVAC systems. A large office complex used the module’s sleep mode to idle pumps during low-demand periods, cutting energy usage by 25% while maintaining comfortable indoor conditions. The module’s thermal overload protection also prevented motor failures in a humidifier system, reducing maintenance costs by 20%.

Material Handling: In warehouse logistics, the MCU2A01C0-4 drives roller conveyors and stacker cranes, with its compact design fitting into narrow control cabinets. A distribution center utilized the module’s quick start-up feature (0.5-second response time) to synchronize conveyor speeds during peak order fulfillment, increasing throughput by 18%.

Installation, Commissioning and Maintenance Instructions

Installation Preparation: Mount the ABB MCU2A01C0-4 on a grounded DIN rail in a control cabinet, leaving 20 mm clearance on all sides for airflow. Connect the motor and power cables using the module’s torque-controlled terminal blocks (2–4 Nm), ensuring proper phase alignment for three-phase applications. Shielded cables are recommended for control signals to minimize EMI interference. Configure the module’s parameters (e.g., motor rating, control mode) via the front-panel keypad or DriveWindow software, and verify motor rotation direction before full-load operation.

Maintenance Suggestions: Regularly inspect terminal connections for tightness and corrosion, especially in high-humidity environments. Use the module’s diagnostic display to monitor operating parameters (e.g., current, temperature) and clear fault codes promptly. Clean the housing and vents with compressed air quarterly to prevent dust accumulation, which can lead to overheating. ABB’s predictive maintenance tools can monitor motor health via cloud analytics, alerting operators to potential issues like bearing wear or voltage unbalance before failures occur.

Service and Guarantee Commitment

ABB guarantees the MCU2A01C0-4 to meet performance specifications for 36 months from delivery, backed by rigorous testing for EMC compliance (EN 61000-6-2) and mechanical endurance. The module’s RoHS-compliant design ensures environmental sustainability, while ABB’s global service network provides 24/7 technical support, including remote troubleshooting and on-site training. For critical applications, extended warranties and spare parts kits are available to minimize downtime. ABB’s commitment to quality ensures the MCU2A01C0-4 delivers reliable, long-term performance, making it a trusted choice for industrial motor control needs.
