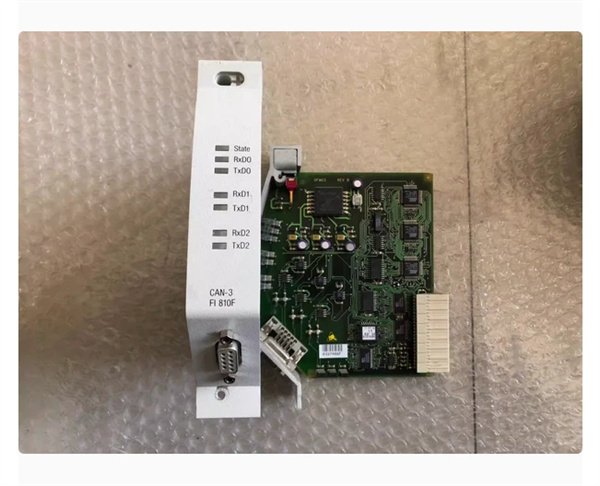

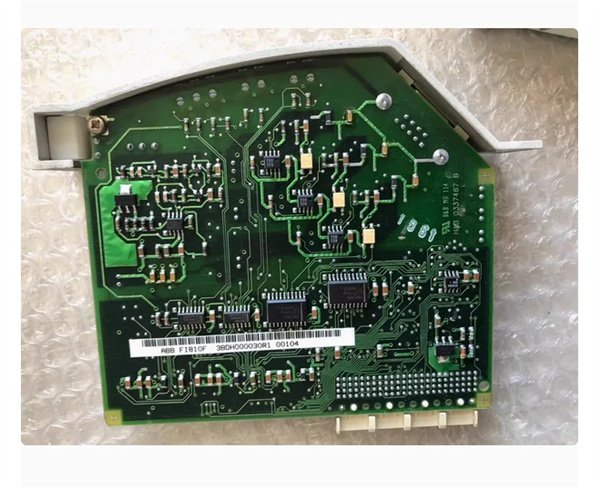

ABB FI810F 3BDH000030R1 Fieldbus Module
Manufacturer: ABB
Product Number: FI810F (3BDH000030R1)
Category: Fieldbus Module
Series: ABB AC800F series
Application: Harsh industrial environments requiring robustness and reliability
Function: High-performance fieldbus communication for automation systems
Product Description
The ABB FI810F 3BDH000030R1 is a high-performance fieldbus module designed for industrial automation and control systems. It is part of the ABB AC800F series and is known for its robustness, reliability, and efficiency in harsh industrial environments.
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | FI810F 3BDH000030R1 |
| Manufacturer | ABB |
| Product Category | Fieldbus Module |
| Series | AC800F |
| Communication Protocol | CAN 2.0B |
| Number of Channels | 3 (triple channel) |
| Baud Rate | Up to 1 Mbit/s |
| Transmission Distance | Up to 1 km (depending on cable type and baud rate) |
| Electrical Isolation | 2 kV |
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Range | <75% (allowing slight condensation) |
| Dimensions (W×D×H) | 125 mm × 155 mm × 28 mm |
| Weight | 0.145 kg |
| Certifications | CE, UL, CSA |
| Protection Level | IP20 |
Core Advantages and Technical Highlights
Triple-Channel CAN Interface: The FI810F features three independent CAN channels, providing versatile connectivity for various CAN devices such as sensors, actuators, and controllers.
High-Speed Data Transmission: The module supports high-speed data transmission at up to 1 Mbit/s, ensuring quick and efficient communication.
Electrical Isolation: The module includes 2 kV electrical isolation to protect against ground faults and ensure stable operation.
Wide Operating Temperature Range: The FI810F operates reliably within a temperature range of -40°C to +70°C, making it suitable for diverse industrial environments.
Compact Design: The module has a compact form factor (125 mm × 155 mm × 28 mm) and weighs only 0.145 kg, making it easy to install and integrate into existing systems.
Typical Application Scenarios
The ABB FI810F 3BDH000030R1 is widely used in various industrial sectors, including:
-
Manufacturing Plants: For seamless communication between PLCs and industrial devices.
-
Power Plants: For monitoring and controlling power generation processes.
-
Water Treatment Facilities: For managing pumps and valves in water treatment systems.
-
Transportation Systems: For real-time control of traffic signals and other transportation infrastructure.
Installation Commissioning, and Maintenance Instructions
Installation Preparation: Ensure the installation environment is clean and free of interference. Prepare the necessary tools and follow the installation manual carefully.
Maintenance Suggestions: Regularly inspect the module for physical damage, monitor output signals using a multimeter, and check for abnormal heat generation or noises. Clean the module’s surface periodically to prevent dust accumulation, which can affect performance.
Service and Guarantee Commitment
The ABB FI810F 3BDH000030R1 comes with a comprehensive warranty, ensuring customer satisfaction and peace of mind. ABB provides technical support and service to assist with installation, troubleshooting, and maintenance.
