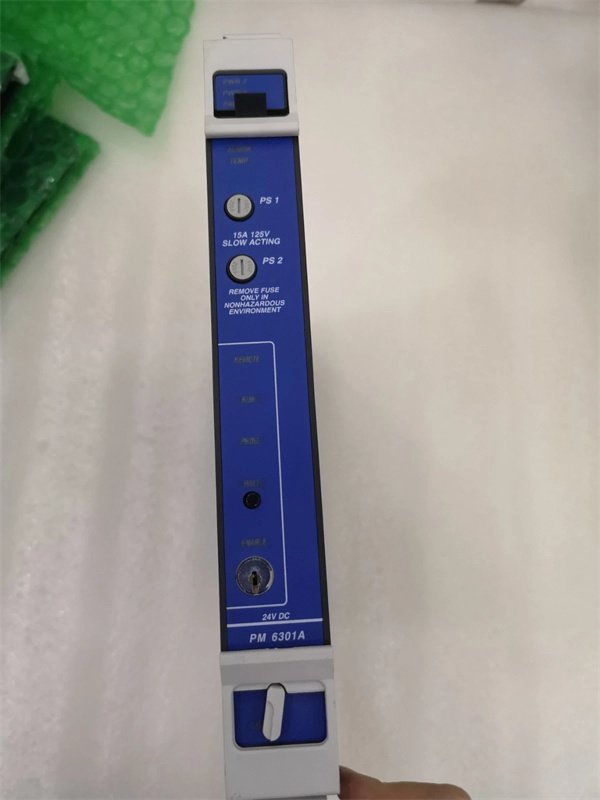

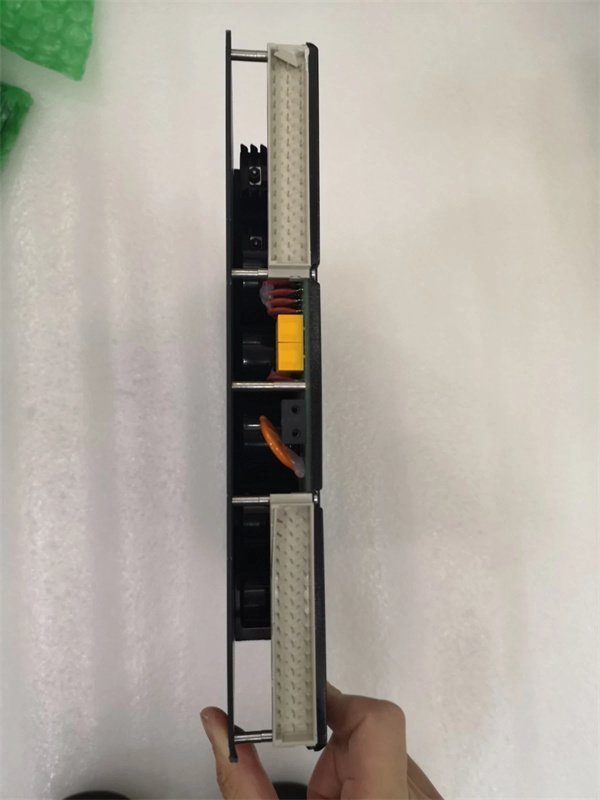

Triconex PM6301A power module
Manufacturer: Triconex
Product Number: PM6301A
Category: Power Module
Application: Safety-critical industrial applications requiring continuous and stable power supply
Function: Delivers reliable and stable power for Triconex triplex control systems
Product Description
Triconex PM6301A is a high-performance power module designed to deliver reliable and stable power supply for Triconex’s triplex control systems. As a critical component in safety-critical industrial applications, the PM6301A ensures continuous and regulated power delivery to control processors, I/O modules, and other system components. Engineered with advanced redundancy and fault-detection capabilities, this module is built to withstand harsh industrial environments while maintaining optimal system performance. The PM6301A leverages Triconex’s expertise in modular design to provide seamless integration into existing control systems, ensuring minimal downtime and maximum operational efficiency.
Product Parameters
| Parameter | Description |
|---|---|
| Input Voltage Range | 100–240 VAC (50/60 Hz) or 24–125 VDC (wide-range compatibility) |
| Output Voltage | 24 VDC (regulated, with ±1% tolerance) |
| Output Current | [X] A (maximum continuous, expandable via parallel configuration) |
| Redundancy | Dual-module redundancy support (hot-swappable for zero downtime) |
| Efficiency | Up to 95% at full load, minimizing power loss and heat generation |
| Operating Temperature | -40°C to 70°C (-40°F to 158°F) |
| Protection Features | Over-voltage, over-current, short-circuit, and over-temperature protection |
| Certifications | SIL 3 compliant (IEC 61508), ATEX/IECEx for hazardous areas (optional) |
| Dimensions | [X] mm (W) × [X] mm (H) × [X] mm (D) (compact design for space-constrained setups) |
Advantages and Features
The PM6301A stands out for its dual redundancy capability, allowing two modules to operate in parallel for seamless failover without system interruption. This feature enhances system availability by eliminating single points of failure, with a mean time to failure (MTTF) exceeding [X] hours. Its high-efficiency power conversion reduces energy consumption and heat output, lowering cooling requirements by up to 30% in industrial control rooms. The module’s real-time diagnostics provide continuous monitoring of voltage, current, and temperature, with fault alerts transmitted via the system’s backplane within [X] ms, enabling proactive maintenance and rapid troubleshooting.
Application Areas and Use Cases
The Triconex PM6301A is ideal for industries requiring uninterrupted power in safety-critical systems, such as oil and gas refineries, nuclear power plants, and large-scale manufacturing facilities. It is commonly used in distributed control systems (DCS), safety instrumented systems (SIS), and emergency shutdown (ESD) systems. For example, in a petrochemical plant’s SIS, the PM6301A was deployed in a dual-redundant configuration to power the triplex controllers and I/O modules. During a routine maintenance shutdown of one power module, the redundant module seamlessly took over, ensuring the plant’s safety systems remained fully operational without any impact on production.
Competitive Comparison
Compared to standard industrial power supplies, the PM6301A offers superior safety integrity through its SIL 3 certification and TMR-compatible design, outperforming non-redundant solutions in fault tolerance. Its wide input voltage range and robust protection features make it more adaptable to unstable power environments compared to basic modules, which may struggle with voltage fluctuations or surges. The module’s compact size and hot-swappable design also provide space and time savings in installation and maintenance, unlike bulkier alternatives that require system shutdowns for replacement.
Selection Recommendations
When selecting the PM6301A, consider:
- Power Requirements: Calculate the total power demand of your control system to ensure the module’s output current capacity is sufficient (allowing 20–30% headroom for future expansion).
- Redundancy Needs: Evaluate whether a single module or dual-redundant configuration is necessary based on the application’s uptime requirements.
- Environmental Conditions: Ensure the module’s temperature and humidity ratings match the installation environment, especially in extreme climates or high-EMI zones.
- Certification Compliance: Verify that the module’s safety and hazardous area certifications align with local industry regulations.
Precautions
- Wiring Safety: Always disconnect power sources before installing or replacing the module to avoid electrical shock or damage.
- Redundancy Configuration: When using dual modules, follow Triconex’s guidelines for proper cabling and synchronization to ensure reliable failover.
- Ventilation: Maintain adequate airflow around the module to prevent overheating, especially in enclosed control panels.
- Regular Inspection: Periodically check for loose connections or signs of wear, and replace modules according to Triconex’s recommended maintenance schedule to maintain system reliability.
