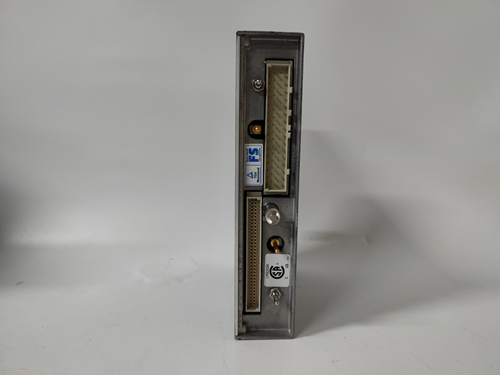

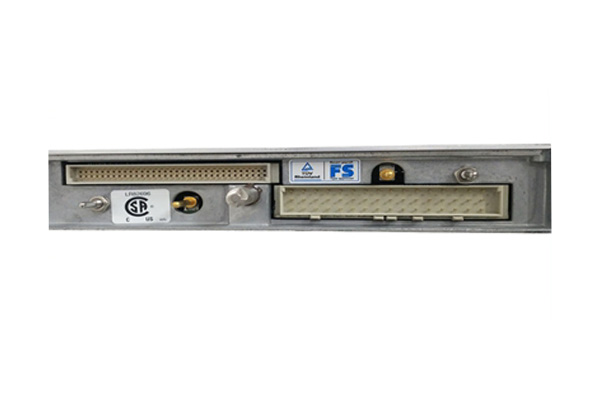

TriconeX 3401 Digital Output Module Detailed Technical Overview

The Triconex 3401 digital output module is a key component in the Triconex series control system, used to output digital signals (such as switch signals) from the control system to external devices such as valves, relays, motors, and other actuators. The following are brief characteristics and applications:

Main features

Digital output support: Used to output digital signals to external devices, common output signals include control commands such as on/off, valve on/off, etc.

High redundancy design: Compatible with the Triple Redundancy (TMR) configuration of the Triconex system, ensuring stable operation of the system in the event of module failure.

High Security: Compliant with SIL3 safety standards, suitable for control systems that require high reliability and safety.

Modular design: Supports hot swappable functionality, facilitating module maintenance, expansion, and replacement.

Multi channel output: usually provides multiple output channels, which can simultaneously control multiple external devices and enhance the flexibility of the system.

Application areas

Safety Instrumented System (SIS): Used to perform safety control tasks such as Emergency Shutdown (ESD) or other safety operations.

Process control system: used to control equipment such as valves, pumps, actuators, etc., to ensure the smooth operation of the production process.

Automation control: Used for switch control of actuators in automation equipment, commonly found in industries such as chemical, petroleum, and natural gas.

Advantages

High reliability and redundancy design ensure stable output in critical systems at all times.

Hot swappable function reduces downtime and improves system maintenance efficiency.

Strong adaptability, capable of flexibly processing multiple output signals to meet complex control requirements.
