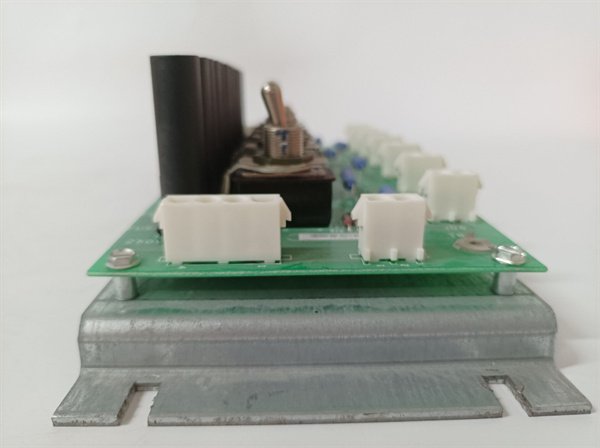

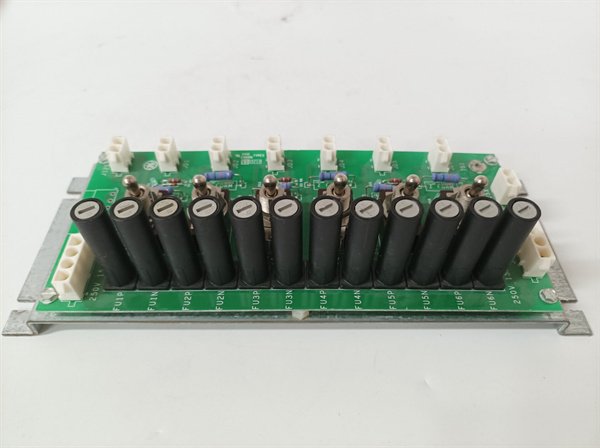

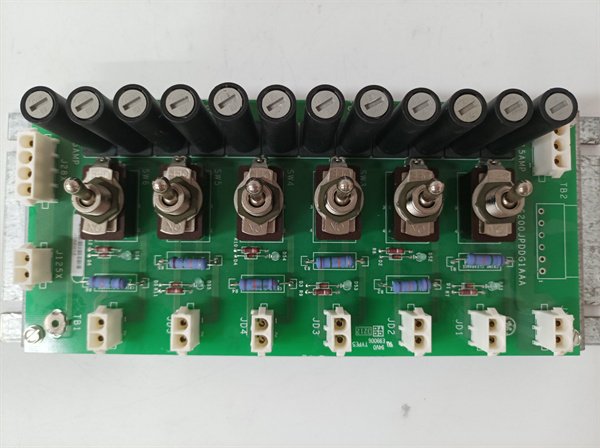

GE Fanuc IS200JPDDG1AAA Digital I/O Terminal Board

The GE Fanuc IS200JPDDG1AAA is a compact, high–reliability terminal board designed for the Mark VIe gas turbine control system. This module provides secure connectivity for digital signals, enabling seamless integration between field devices (e.g., switches, relays, solenoids) and the control system. With features like high–density wiring, surge protection, and modular design, the IS200JPDDG1AAA is ideal for industrial automation, power generation, and process control applications.

• Function: Supports 16 isolated digital input/output channels (8 inputs + 8 outputs).
• Compatibility: Works with GE Mark VIe system racks, compatible with IS200JPDDG1A and IS200JPDDG2A.
• Key Use: Enables precise control of actuators, valves, and sensors in gas turbines, boilers, and manufacturing lines.

Technical Specifications

Key Features & Advantages

1. Dual–Channel Redundancy

   • Supports redundant configurations for critical applications, ensuring fail–safe operation.

2. Surge and EMI Protection

   • Transient voltage suppression diodes protect against surges up to 6 kV.
   • Shielded connectors reduce electromagnetic interference.

3. Modular Design

   • Hot–swappable terminals allow quick replacement without system shutdown.
   • Color–coded wiring slots minimize installation errors.

4. Space–Saving

   • 16 channels in a compact form factor, reducing panel space by 30% compared to legacy systems.

Applications

• Energy: Controlling fuel valves, ignition systems, and generator breakers in gas turbines.
• Manufacturing: Actuating pneumatic cylinders and monitoring conveyor sensors.
• Oil & Gas: Managing solenoid valves and emergency shutdown systems in pipelines.

Competitive Edge

• Cost–Efficiency: Offers 20% more channels per unit than competitors.
• Certifications: Compliant with IEC 61000–4–5 (surge immunity) and UL 508.
• Longevity: Rated for 100,000+ operating hours in harsh environments.

Selection Guide

1. Signal Type:

   • Choose IS200JPDDG1AAA for mixed digital I/O.
   • Opt for IS200JPDDG1A (16 inputs) or IS200JPDDG2A (16 outputs) for single–function needs.

2. Environmental Needs:

   • For corrosive environments, select the conformal–coated variant (IS200JPDDG1AAAR).
   • Ensure proper ventilation to maintain optimal temperature.

3. Budget Options:

   • Refurbished units with a 2–year warranty are available at a 30% discount.

Installation & Maintenance Tips

1. Wiring:

   • Use 16–22 AWG ferruled wires for secure connections.
   • Torque screws to 0.5 N·m (4.4 lbf·in) to prevent loose contacts.

2. Troubleshooting:

   • Check LED indicators: green = normal, amber = fault.
   • Replace faulty channels individually using GE’s plug–and–play modules.

3. Safety:

   • De–energize the system before servicing.
   • Follow NEC Article 408 for industrial panel wiring standards.
