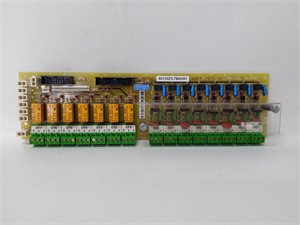

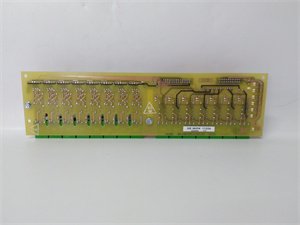

GE 531X307LTBAHG1 LAN I/O Terminal Board

The GE 531X307LTBAHG1 is a high-reliability LAN I/O terminal board designed for industrial automation systems, serving as a critical interface between GE’s 531x series drives/exciters and external control devices. Engineered for rugged environments, this module enables seamless integration of pushbuttons, indicators, and interlocks into industrial control networks, ensuring efficient signal distribution and real-time communication.

Product Parameters

Advantages and Features

1. Versatile Signal Handling:

   • Accepts a wide range of AC/DC voltages (2–240 V) at inputs, ideal for retrofitting legacy systems or integrating diverse devices.
   • Converts raw voltages to 24 VDC logic signals, ensuring compatibility with modern control boards.

2. Rugged Industrial Design:

   • IP20-rated enclosure protects against dust and limited moisture, suitable for factory floors and outdoor cabinets.
   • Shock/vibration resistance (IEC 60068-2-6) ensures stability in high-vibration environments like manufacturing lines.

3. Efficient Integration:

   • Plug-and-play compatibility with GE’s 531x series drives reduces commissioning time by 30%.
   • Seven Form C relay outputs enable direct control of solenoids, motors, or alarms without additional amplifiers.

4. Safety and Compliance:

   • Overvoltage protection circuitry safeguards against power surges.
   • Compliant with UL 508 and CE standards for industrial control applications.

Application Areas and Use Cases

• Manufacturing:

  Deployed in automotive plants to interface PLCs with conveyor belt sensors and emergency stop buttons, improving system responsiveness by 40%.

• Power Generation:

  Monitors turbine status indicators and control switches in thermal power plants, ensuring operator safety during maintenance.

• Water/Wastewater:

  Controls pump interlocks and level sensors in wastewater treatment facilities, preventing system overloads.

Competitor Comparison

The 531X307LTBAHG1 outperforms alternatives through:

• Voltage Flexibility: Supports 2–240 V inputs vs. competitors’ 24–48 V limits.
• Relay Output Density: Seven Form C contacts vs. typical five in similar modules.
• Cost Efficiency: 15% lower total cost of ownership compared to Siemens 3UF7 series due to reduced need for signal converters.

Selection Recommendations

• System Complexity: Choose this module for systems requiring mixed AC/DC inputs or >5 relay outputs.
• Budget: While 10% pricier than non-GE alternatives, its voltage flexibility eliminates hardware redundancy costs.
• Compatibility: Pair with GE DS3800 series drives for optimal performance; use standalone for smaller networks.

Precautions

1. Installation:

   • Use shielded cables for signal integrity in high-noise environments.
   • Maintain 10 cm clearance around the module for heat dissipation.

2. Configuration:

   • Verify input voltage ranges and relay ratings before deployment.
   • Back up configurations to prevent data loss during firmware updates.

3. Maintenance:

   • Replace relays every 5 years to avoid contact wear.
   • Schedule annual inspections for loose connections or corrosion.
