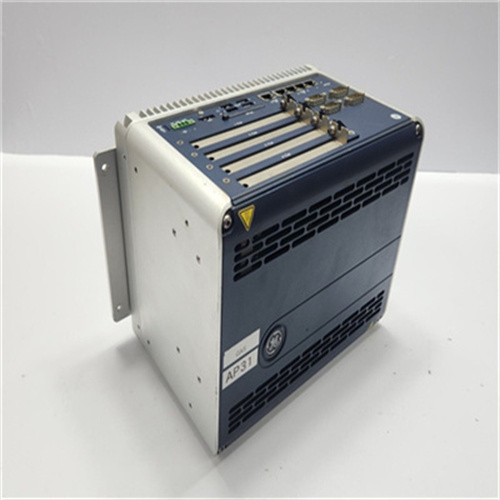

GE 04240FD11234A Detailed Introduction

GE 04240FD11234A is a distributed I/O controller designed by General Electric(GE).It belongs to its PACSystems RXi series product line and is mainly used for distributed I/O management in industrial automation and control systems.The following is a comprehensive analysis based on search results.

Core functions and technical parameters

Processor and storage

Built-in 16-bit processor,equipped with 128 KB RAM and 1 MB flash memory,supports high-speed data processing and configuration storage.

User memory is 10 MB,supports the storage of logic programs and configurations,and can retain data through non-volatile flash memory(NV RAM)to ensure that data is not lost after power failure.

I/O function

Supports 4 digital inputs(DI),8 analog inputs(AI),4 relay outputs(DO),and 1 RS485 serial port,compatible with 0-5V,0-20mA and other signal types.

Compatible with Modbus RTU/TCP/UDP protocols,supports 485 to Ethernet protocol conversion,and can be directly connected to configuration software(such as Wonderware,Ignition).

Communication and Network

Integrated dual Gigabit PROFINET ports(supporting MRP redundancy)and 10/100/1000 Mbit Ethernet ports,suitable for high real-time industrial network environments.

Supports module bus master/slave configuration,can connect up to 30 module bus commands,suitable for complex distributed systems.

Environmental adaptability

The operating temperature range is-40°C to 85°C,supports industrial-grade wide temperature operation,built-in hardware watchdog and anti-interference design to ensure stability in harsh environments.

Application scenarios

Industrial automation:such as production line control,robot coordination,sensor signal acquisition and actuator drive.

Building automation:real-time monitoring and adjustment of environmental parameters such as temperature and pressure.

Energy and transportation:wind turbine status monitoring,rail transportation equipment control.

Medical equipment:high-precision sensor data acquisition and equipment linkage control.

Compatibility and integration

Processor compatibility

Can work with compact Logix series PLCs(such as Allen-Bradley),but does not support MicroLogix 1500.

Software support

Provides intelligent display module,supports touch screen interaction and configuration,and can complete maintenance operations without additional software.

Compatible with PACSystems platform development tools,supporting seamless migration and expansion of logic programs.
