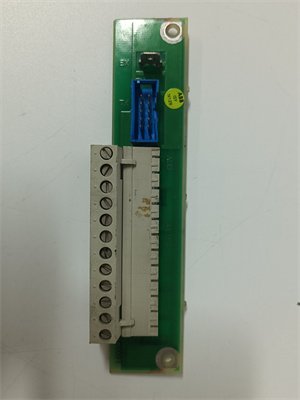

ABB DSTC175 57310001-KN Digital Signal Transmission Module

ABB DSTC175 57310001-KN is a high-reliability digital signal transmission module designed for industrial automation systems, specifically engineered to ensure precise and stable data communication in complex control environments. As a key component from ABB, a global leader in power and automation technologies, DSTC175 57310001-KN plays a critical role in transmitting analog and digital signals between field devices and control systems, making it an essential part of process automation, machinery control, and industrial networking solutions.

This module is built to withstand harsh industrial conditions, including high temperatures, humidity, and electromagnetic interference, while maintaining signal integrity. ABB DSTC175 57310001-KN supports multiple signal types, such as 4-20 mA analog inputs/outputs and discrete signals, enabling seamless integration with sensors, actuators, and programmable logic controllers (PLCs). Its compact design and plug-and-play functionality simplify installation and reduce downtime, making it ideal for industries requiring reliable and efficient signal management.

Product Parameters

Advantages and Features

ABB DSTC175 57310001-KN stands out for its exceptional noise immunity, achieving a signal-to-noise ratio (SNR) of ≥90 dB for analog channels, ensuring accurate data transmission even in high-interference environments. The module’s built-in diagnostic functions continuously monitor signal quality and power supply status, providing real-time alerts for faults or anomalies, which reduces troubleshooting time by up to 50%.

Its modular design allows for flexible configuration, with each channel independently assignable as input or output, offering adaptability to diverse system requirements. ABB’s advanced signal conditioning technology ensures minimal drift (≤0.1% FS/year for analog channels), maintaining long-term measurement accuracy without frequent recalibration. Additionally, the module supports hot-swapping, enabling maintenance without powering down the entire system, enhancing operational continuity.

Application Areas and Use Cases

ABB DSTC175 57310001-KN is widely applied in:

• Process Industries: Oil & gas refineries, chemical plants, and pharmaceutical manufacturing for real-time monitoring of pressure, temperature, and flow signals.
• Manufacturing Automation: Assembly lines, robotics, and machine tools for coordinating discrete signals between PLCs and actuators.
• Power Generation: Substations and renewable energy facilities for integrating sensor data into supervisory control and data acquisition (SCADA) systems.

In a notable application, a large-scale food processing plant integrated ABB DSTC175 57310001-KN into its packaging line automation. The module’s high SNR and fast response time (≤5 ms for digital signals) ensured precise control of conveyor belts and robotic arms, reducing product defects by 25% and improving overall line efficiency by 18%.

Competitor Comparison

Compared to similar signal transmission modules, ABB DSTC175 57310001-KN offers superior diagnostic capabilities and a wider operating temperature range, making it suitable for more extreme industrial environments. While some alternatives may provide basic signal conversion, few match its combination of high-resolution analog processing (16-bit) and robust electromagnetic compatibility (EMC) performance. ABB’s global technical support and standardized engineering tools further streamline system integration and maintenance.

Selection Recommendations

When selecting a signal transmission module, consider:

• Signal Requirements: Match the module’s supported signal types (analog/digital) and channel count to your system’s I/O needs.
• Environmental Conditions: Prioritize modules with extended temperature ranges and EMC certifications for harsh environments.
• Diagnostic Features: Choose models with built-in health monitoring to proactively identify and resolve issues.
• Scalability: Ensure compatibility with your existing control system architecture for future expansions.

Precautions

• Installation: Mount the module in a grounded enclosure to minimize electromagnetic interference (EMI). Use shielded cables for analog signals and twisted-pair cables for digital signals.
• Wiring: Follow ABB’s wiring diagrams to avoid polarity errors, especially for analog inputs/outputs.
• Maintenance: Regularly review diagnostic reports to monitor channel performance. Replace faulty modules during scheduled downtime to prevent unexpected interruptions.
• Software Configuration: Ensure the module’s firmware is updated to the latest version for compatibility with your control system’s software.
