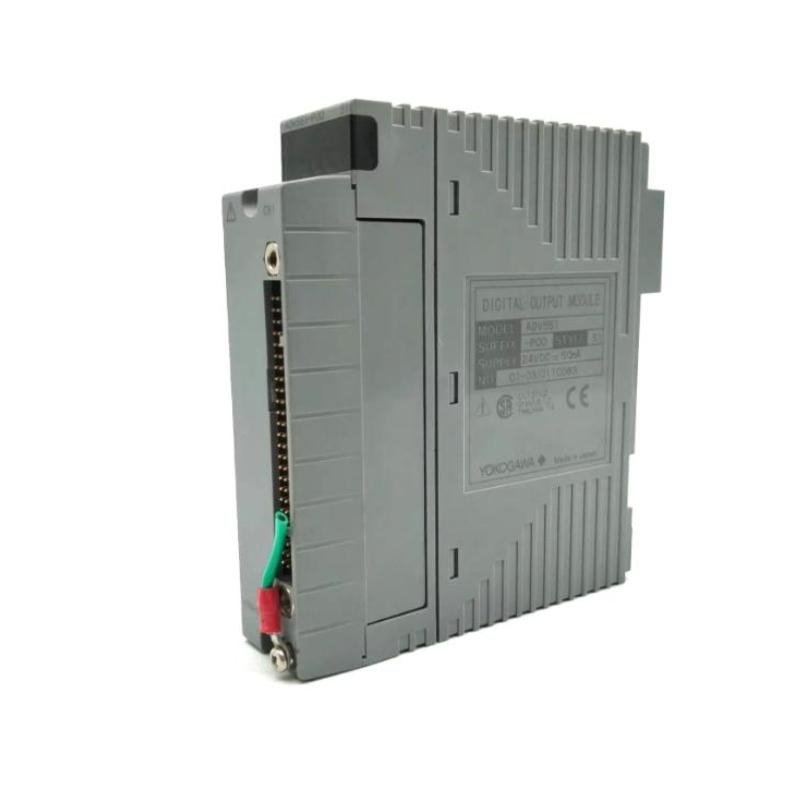

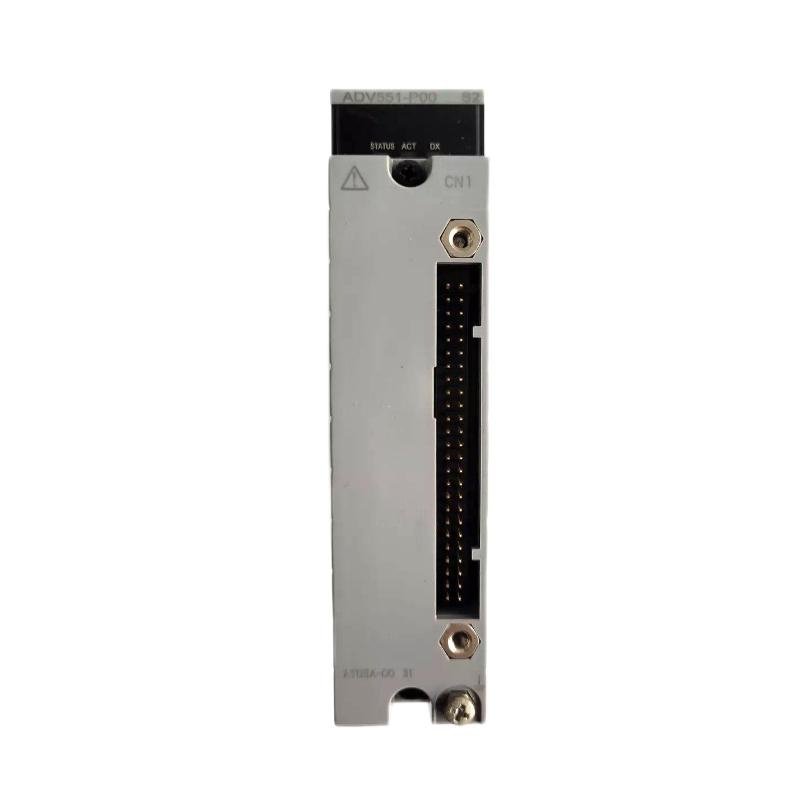

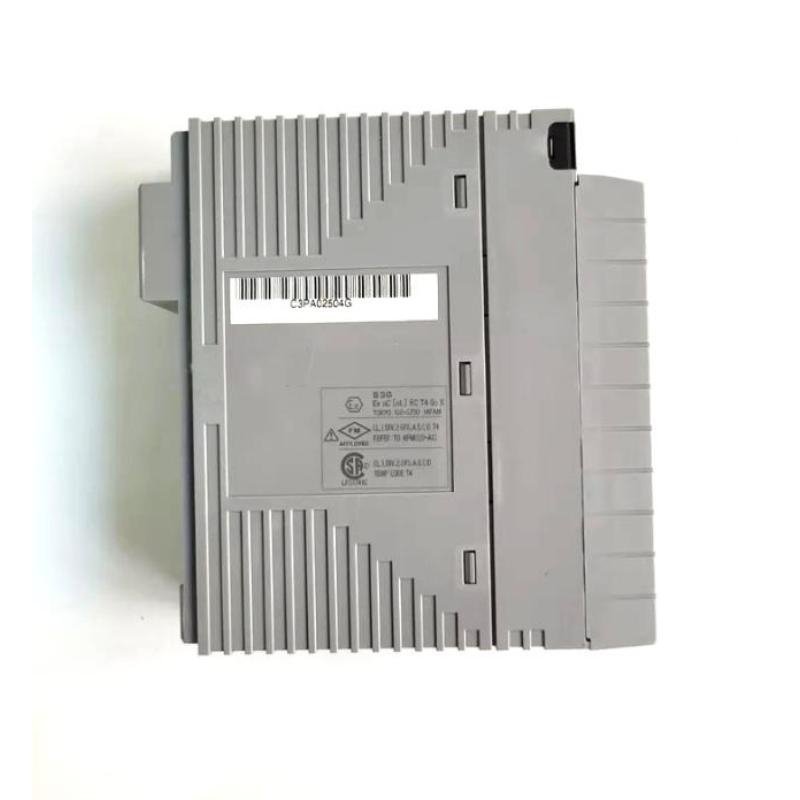

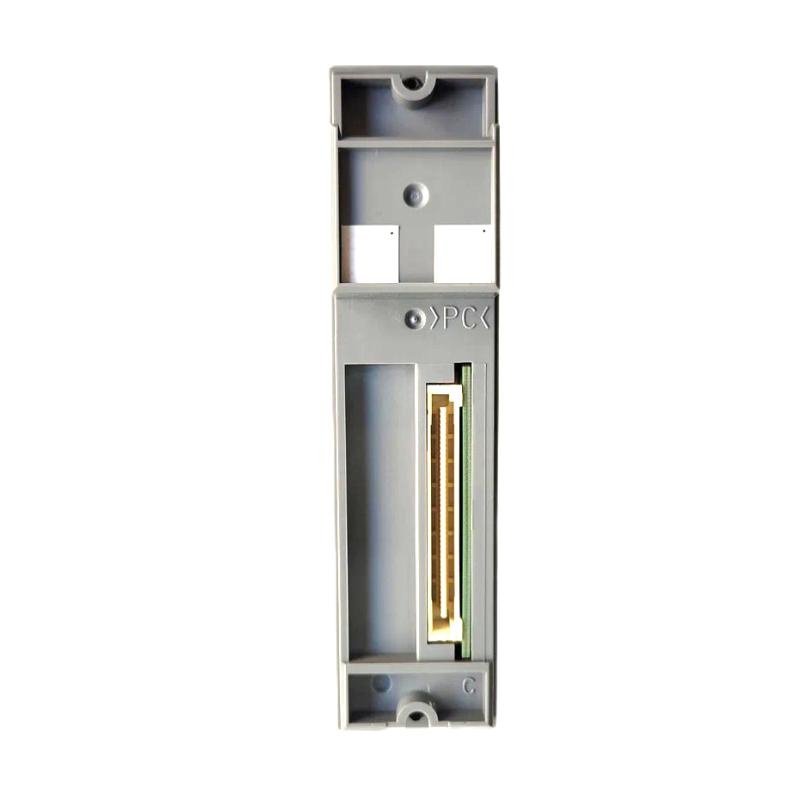

Yokogawa ADV551-P00 Digital Output Module
Manufacturer: Yokogawa
Product Number: ADV551-P00
Category: Digital Output Module
Number of Channels: 32
Output Type: Isolated 24 V DC
System Compatibility: Yokogawa Field Input/Output (FIO) system
Application: Industrial DCS and SIS requiring high-density digital output
Product Description
The ADV551-P00 is a 32-channel isolated 24 V DC digital output module designed for Yokogawa’s Field Input/Output (FIO) system.
-
“ADV551” designates a 32-channel digital output type module.
-
The “P” variant indicates the module supports pulse width and time-proportioning outputs.
-
The “00” suffix specifies the standard version without special options.
This module is widely used in industrial automation and process-control systems that require compact, high-density digital outputs with strong isolation and fast response performance.
Key Features
-
32 optically isolated digital output channels.
-
Rated for 24 V DC current-sink output type.
-
Supports status output, one-shot pulse width, and time-proportioning output modes.
-
Common minus side every 16 channels to improve reliability and simplify wiring.
-
Excellent isolation between field and system circuits for noise immunity.
-
Compact size for easy installation in high-density I/O cabinets.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | ADV551-P00 |
| Number of Output Channels | 32 |
| Rated Applied Voltage | 24 V DC |
| External Power Supply Rating | 24 V DC, 50 mA |
| External Power Supply Voltage Range | 20.4 V DC to 26.4 V DC |
| Output ON Voltage Maximum | 2 V DC |
| Leak Current (Output OFF) | 0.1 mA |
| Output Format | Current sink type |
| Maximum Load Current | 100 mA per channel at 26.4 V DC |
| Isolation (Output ↔ System) | 2 kV AC for 1 minute |
| Isolation (Common every 16 channels) | 500 V AC for 1 minute |
| Output Response Time (Status Output) | 3 ms or less |
| Output Response Time (Pulse/Proportioning) | 10 ms or less |
| Pulse Width Range | 8 ms to 7200 s |
| Pulse Width Resolution | 8 ms (ON/OFF delay ≤ 1 ms) |
| Maximum Current Consumption | 700 mA at 5 V DC; external supply 60 mA |
| Dimensions (H × D × W) | 107.5 mm × 130 mm × 32.8 mm |
| Weight | Approx. 0.20 kg |
| Operating Temperature Range | –20 °C to +70 °C |
| Operating Humidity | 5 % to 95 % RH (non-condensing) |
| Mounting Method | Mounted on FIO baseplate or control cabinet rack |
