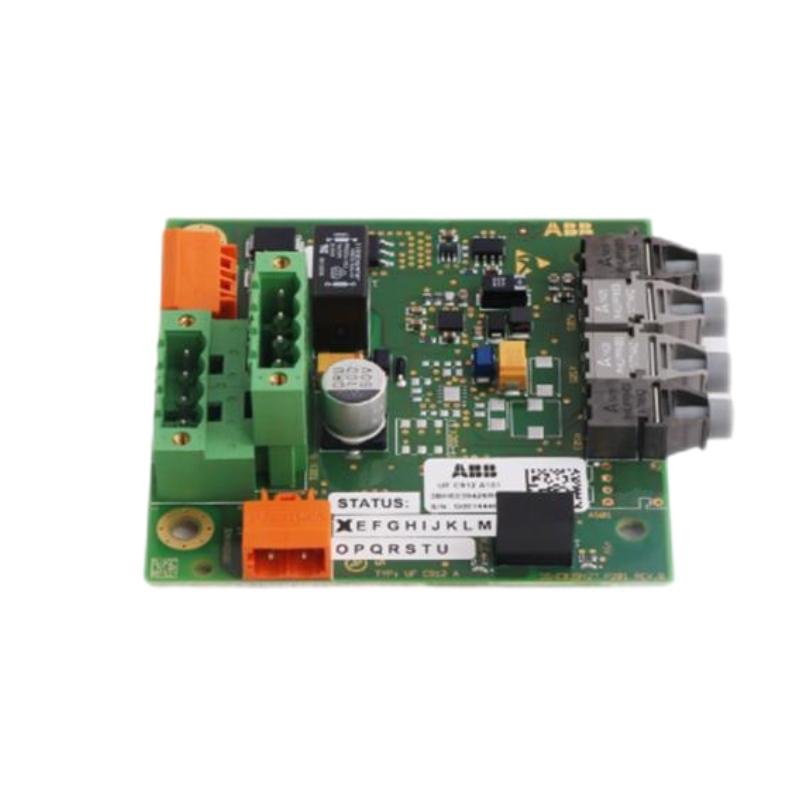

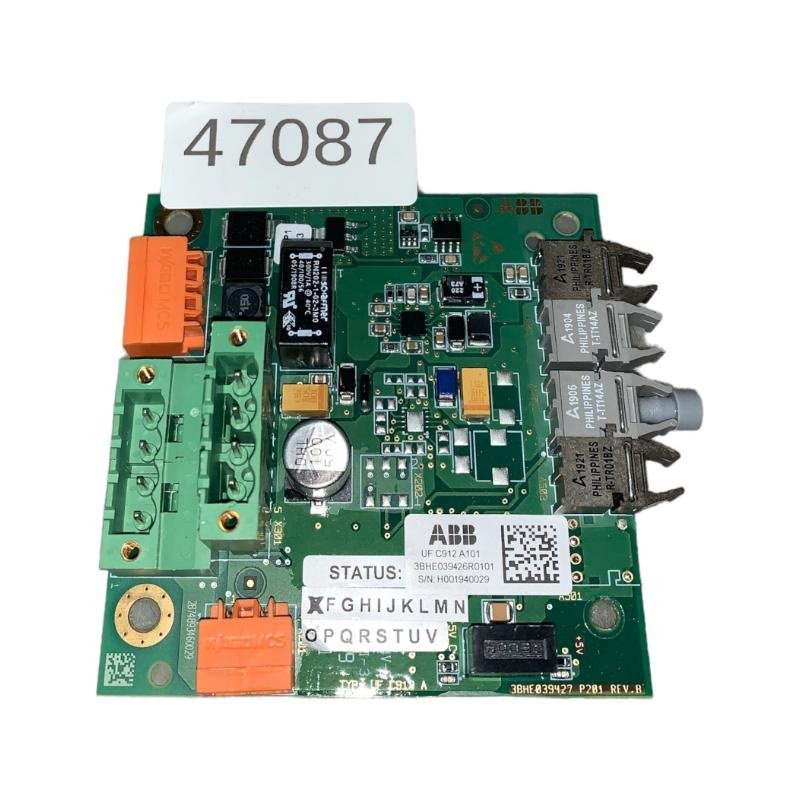

ABB UF C912 A101 3BHE039426R0101 EOI module
Manufacturer: ABB
Product Number: UF C912 A101 (3BHE039426R0101)
Category: EOI (External Output Interface) Module / IGCT Module
Application: Demanding industrial applications requiring reliable current and voltage control for external output interface functions
Product Description
The ABB UF C912 A101 (3BHE039426R0101) is a high-performance IGCT (Integrated Gate Commutated Thyristor) module designed for external output interface functions in demanding industrial applications. It provides reliable current and voltage handling, fast switching performance, and stable integration within ABB control systems. With its compact yet durable design, it ensures consistent operation under tough environmental conditions.
Main Features
• Rated for up to 3000 A and 690 VAC for heavy-duty usage
• Ultra-fast switching capability with response under 5 μs
• Low switching capacitance for efficient performance
• High insulation resistance ensuring electrical safety
• Wide ambient operating tolerance from –40 °C to +70 °C
• Robust construction with compact footprint for easy installation
• Diagnostic support and compatibility with ABB system platforms
• International standard compliance for safety and reliability
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 120mm × 100mm × 75mm |
| Weight | Approximately 0.45 kg |
| _ |
General Information
| Item | Specification |
|---|---|
| Manufacturer | ABB |
| Model Number | UF C912 A101 (3BHE039426R0101) |
| Module Type | IGCT Module / External Output Interface |
| Country | Switzerland / Germany |
| Warranty | 12 months (typical) |
| Condition | New, factory-original |
| _ |
Electrical & Performance Characteristics
| Item | Specification |
|---|---|
| Current Rating | Up to 3000 A |
| Voltage Rating | 690 VAC |
| Switching Speed | < 5 μs |
| Switching Capacitance | < 15 nF |
| Insulation Resistance | ≥ 10 MΩ |
| Frequency | 50 Hz |
| _ |
Environmental Specifications
| Item | Specification |
|---|---|
| Operating Temperature | +5 °C to +40 °C |
| Storage Temperature | –40 °C to +70 °C |
| Humidity Range | 0 % to 95 % RH, non-cond. |
| _ |
Performance / Communication
| Item | Specification |
|---|---|
| Power Supply | 24 V DC |
| Data Transfer Rate | Up to 100 Mbps |
| Supported Protocols | Ethernet, Modbus TCP, PROFIBUS |
| Mounting Options | DIN-rail or panel mount |
| Protection Rating | IP20 |
| Certifications | CE, UL, RoHS |
| _ |
Industry Applications
The ABB UF C912 A101 module is widely applied in:
• Power utilities and industrial drives requiring robust current control
• Oil & gas, chemical, and mining industries with harsh environments
• Automation systems needing fast, reliable switching performance
• Large-scale ABB control ecosystems with modular architecture needs
