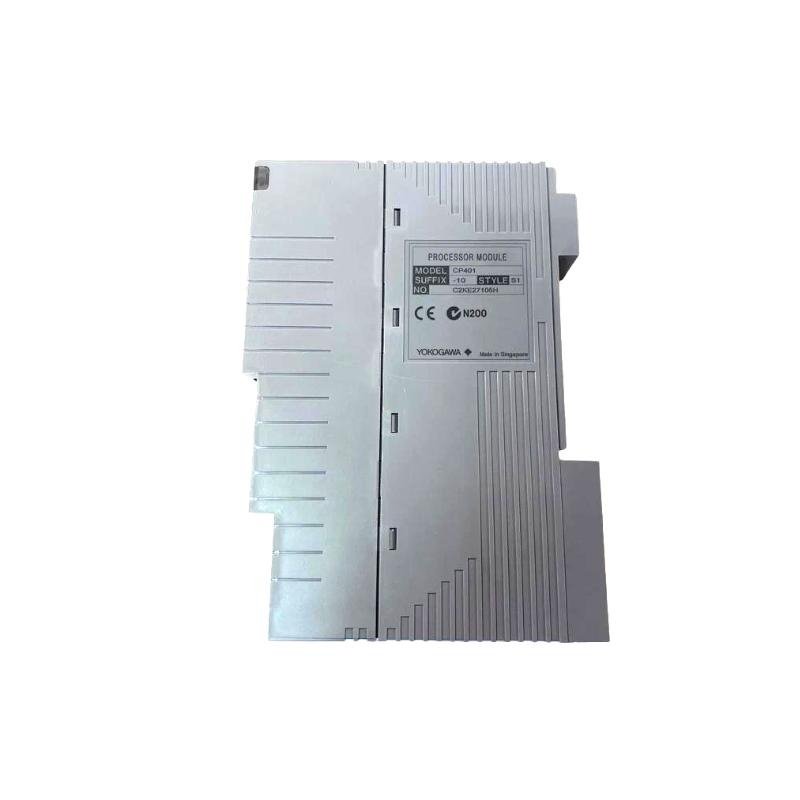

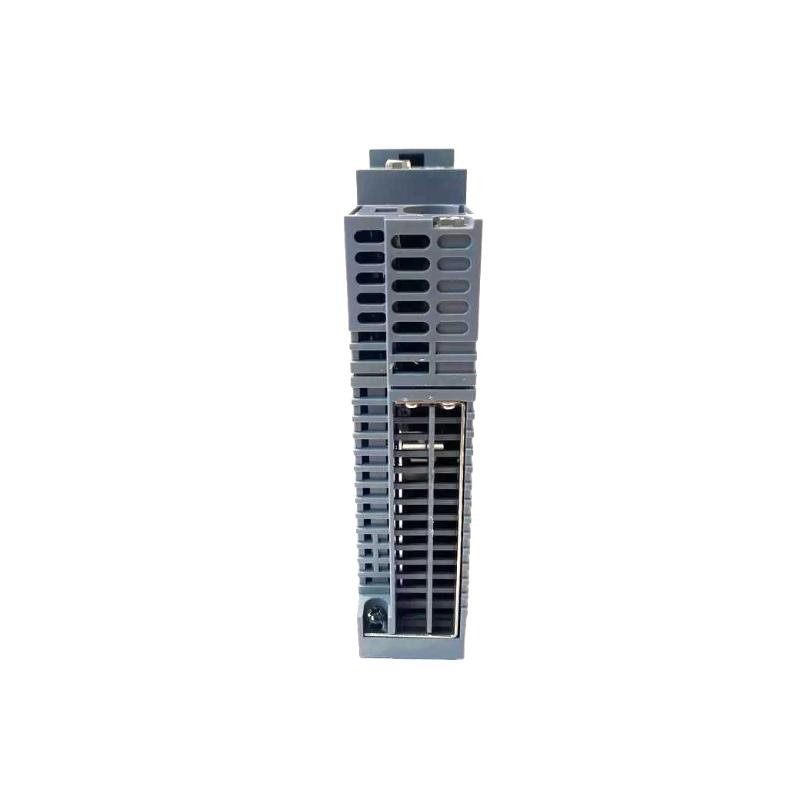

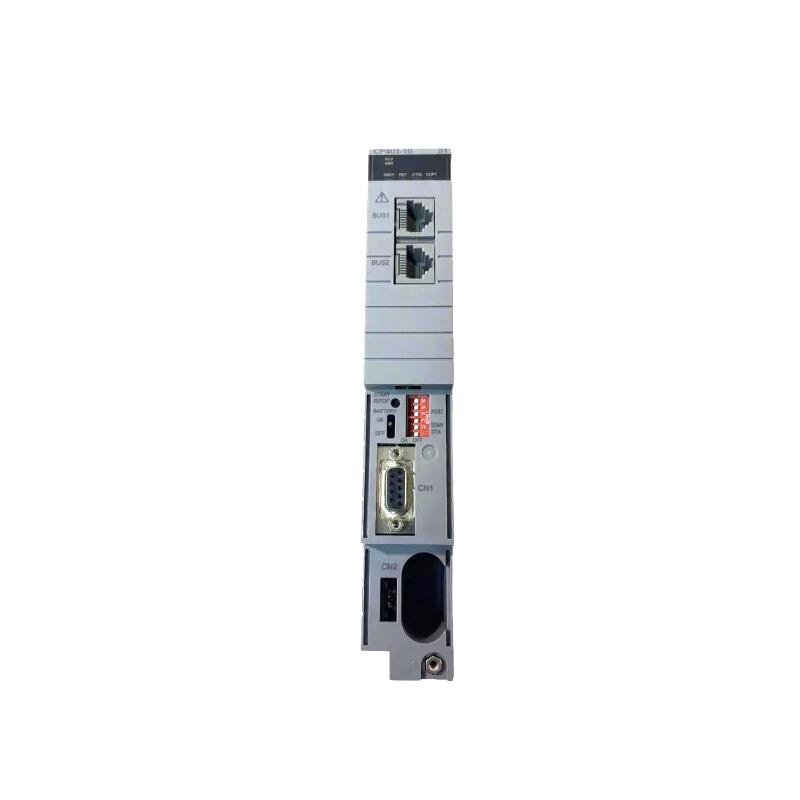

Yokogawa CP401-10 Processor Module
Manufacturer: Yokogawa
Product Number: CP401-10
Category: Processor Module / CPU
System Compatibility: Yokogawa CENTUM VP DCS
Application: Core of the Field Control Station (FCS) executing control logic and managing I/O for large-scale industrial processes
Product Description
The Yokogawa CP401-10 Processor Module is a high-performance central processing unit (CPU) designed for use in Yokogawa’s CENTUM VP distributed control systems (DCS). As the core of the Field Control Station (FCS), the CP401-10 executes control logic, handles communication with I/O modules and higher-level supervisory systems, and ensures deterministic, real-time process control. Engineered for high reliability and long-term availability, it plays a vital role in maintaining stable and safe operations in critical industrial environments.
Key Features
-
Advanced CPU Architecture–Delivers fast and reliable processing for complex control strategies
-
Redundancy Support–Supports dual redundant configurations for increased system availability
-
Real-Time Control–Ensures deterministic execution of control functions
-
Efficient I/O Communication–Communicates seamlessly with I/O modules via the Vnet/IP control network
-
Diagnostics and Monitoring–Built-in diagnostics for early fault detection and status reporting
-
Long Lifecycle Support–Designed for long-term availability and integration into Yokogawa’s lifecycle management services
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 23.5 × 104 × 110 mm |
| Weight | 0.2 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Power Supply | Supplied via base unit |
| Power Consumption | Approx. 8 W |
Performance and Capacity
| Item | Specification |
|---|---|
| Processor Type | 32-bit RISC processor |
| Program Capacity | Up to 1,000,000 steps |
| Scan Time | Configurable, typically <100 ms |
| Control Functions | Continuous, batch, and sequence control |
| Communication Protocol | Vnet/IP (dual redundant supported) |
Environmental Specifications
| Item | Specification |
|---|---|
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -20°C to +70°C |
| Humidity | 5%–95% RH (non-condensing) |
| Vibration Resistance | Complies with IEC 60068-2-6 |
| Shock Resistance | Complies with IEC 60068-2-27 |
System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | Yokogawa CENTUM VP, CS 3000 systems |
| Application Types | DCS-based process automation |
| Network Interface | Vnet/IP control network |
Industry Applications
-
Petrochemical & Refining–Handles complex control sequences in continuous process plants
-
Power Generation–Ensures stable operation of turbine and boiler control systems
-
Pharmaceutical–Supports GMP-compliant batch control and data integrity
-
Pulp & Paper–Reliable processing for digester, recovery, and paper machine control
-
Water & Wastewater–Automates treatment and distribution with high reliability
The Yokogawa CP401-10 Processor Module serves as the reliable and powerful control engine within the CENTUM VP system. With advanced processing capabilities, robust redundancy features, and seamless integration into Vnet/IP networks, it is a critical component for high-availability industrial control systems.
