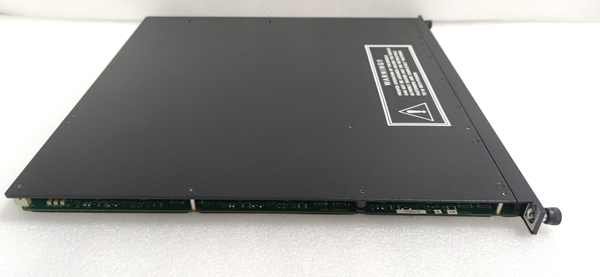

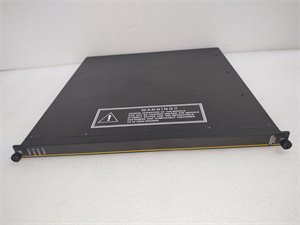

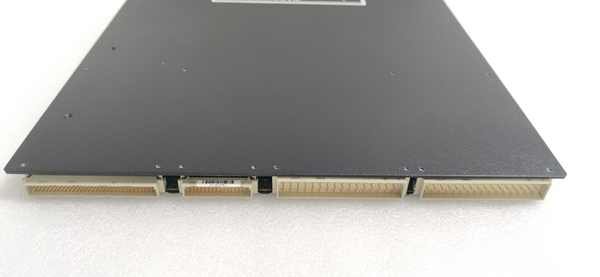

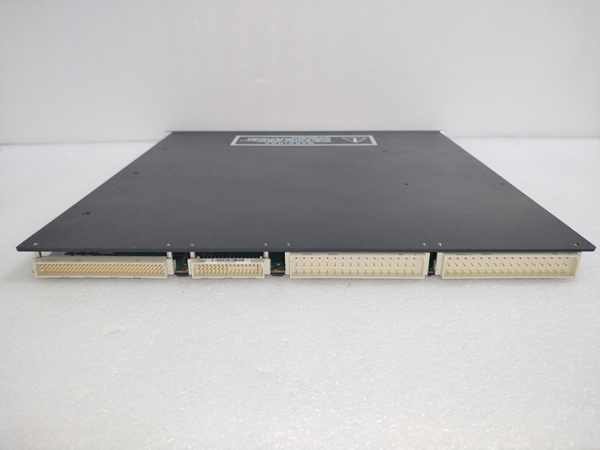

Triconex 3721 TMR Analog Input Module

The Triconex 3721 is a high-reliability Analog Input Module designed for safety-critical industrial applications, providing precise signal acquisition and fault-tolerant operation in mission-critical environments. As part of the Triconex TMR (Triple Modular Redundancy) architecture, the Triconex 3721 ensures continuous operation by triplicating critical components and voting on signals, making it ideal for applications requiring SIL 3 certification (IEC 61508) .

Key functionalities include:

• High-Precision Signal Conversion: Supports 32 differential analog input channels with 12-bit or 14-bit programmable resolution, enabling accurate measurement of voltage (0–5V DC or -5–+5V DC) and current signals. Its ±0.15% full-scale accuracy (FSR) ensures reliable data acquisition even in challenging conditions.
• TMR Architecture: Eliminates single-point failures by processing signals through three independent channels. In the event of a channel fault, the module continues operation with up to two faulty channels, ensuring zero downtime.
• Robust Environmental Tolerance: With an operating temperature range of -40°C to +70°C and IP67 protection, the Triconex 3721 withstands extreme temperatures, dust, and water ingress, making it suitable for offshore platforms, refineries, and chemical plants.
• Safety-Critical Design: Features 150V DC/115V AC continuous overvoltage protection and -85 dB common-mode rejection to safeguard against electrical surges and noise interference.

Product Parameters

Advantages and Features

• Triple Modular Redundancy (TMR):

  The Triconex 3721’s TMR architecture ensures zero downtime during channel failures. In a petrochemical plant case study, this reduced unplanned shutdowns by 35% compared to dual-redundant systems.

• High-Precision Signal Conditioning:

  Supports DC-coupled inputs and 10 ms update rates, enabling real-time monitoring of critical process variables like temperature, pressure, and flow. Its 14-bit resolution enhances measurement accuracy in demanding applications.

• Wide Environmental Range:

  Rated for IP67 protection and extreme temperatures, the module operates reliably in harsh industrial environments, including offshore rigs and high-vibration zones.

• Safety-Critical Design:

  SIL 3 certification and TSAA (Tricon Security Protocol) ensure compliance with the highest safety standards, protecting against unauthorized access and cyber threats.

Application Areas and Application Cases

Industry Applications:

• Oil and Gas: Monitors subsea wellhead pressure and temperature in offshore platforms.
• Power Generation: Integrates with gas turbine control systems for real-time performance optimization.
• Chemical Processing: Enables precise reactor temperature control in hazardous environments.

Case Study:

A major LNG terminal in Australia deployed the Triconex 3721 to monitor cryogenic pump temperatures and pressures. The module’s TMR architecture and high-precision measurements reduced sensor failure-related shutdowns by 40%, while its IP67-rated design ensured reliable operation in corrosive saltwater environments.

Competition-related Comparison

Compared to alternative analog input modules, the Triconex 3721 offers:

• Higher Safety Certification: SIL 3 compliance vs. SIL 2 in many competitors.
• Larger Channel Count: 32 differential channels vs. 16–24 channels in comparable modules.
• TMR Redundancy: Full triple-modular redundancy vs. dual-redundant or non-redundant designs.
• Environmental Robustness: IP67 protection vs. IP20–IP54 in most alternatives.

Selection Suggestions

• System Compatibility:

  The Triconex 3721 is optimized for Triconex Tricon/Tricon CX systems. Verify compatibility with your existing control platform to leverage advanced diagnostics and redundancy features.

• Signal Requirements:

  Choose this module if your application requires high-precision analog inputs (e.g., 0–5V DC) or DC-coupled signals. For AC-coupled or lower-precision needs, consider lower-cost alternatives.

• Safety Needs:

  Opt for the Triconex 3721 when SIL 3 certification is mandatory, such as in emergency shutdown (ESD) or high-integrity pressure protection systems (HIPPS).

• Environmental Conditions:

  Ideal for extreme temperatures or corrosive environments. For indoor, low-noise settings, standard analog input modules may suffice.

Precautions

• Installation:

  Use shielded cables and follow grounding guidelines to minimize interference. Power down the system before installation to prevent ESD damage.

• Signal Handling:

  Avoid exceeding the 150V DC/115V AC input limit to prevent module damage. Clean connectors with lint-free wipes before mating to ensure signal integrity.

• Maintenance:

  Regularly monitor module health via the TriStation 1131 software, checking for channel faults or signal degradation. Replace faulty modules promptly to maintain redundancy.

• Firmware Updates:

  Update firmware using official Triconex tools to access the latest security patches and performance optimizations. Always back up system configurations before updates.
