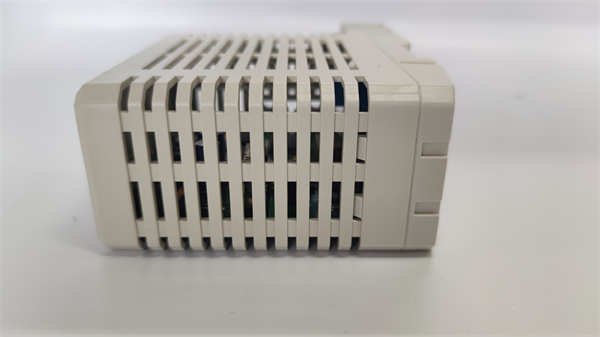

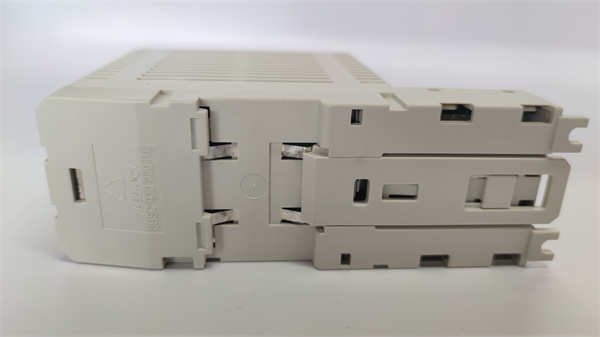

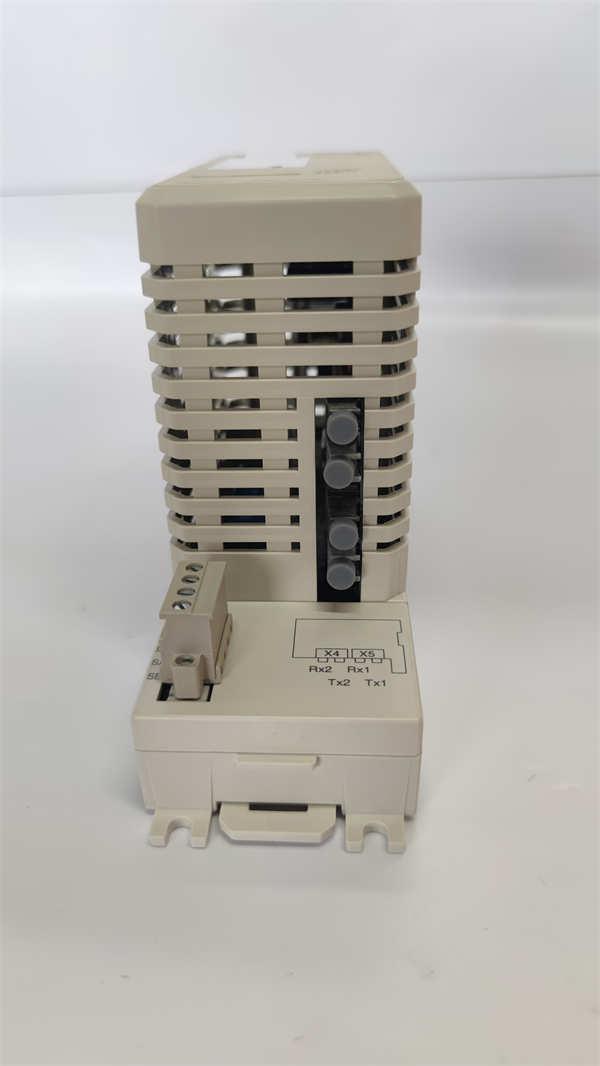

ABB TB820V2 3BSE013208R0001 Terminal Base Unit

The ABB TB820V2 3BSE013208R0001 is a high-quality terminal base unit designed for ABB’s S800 I/O System, providing secure and reliable field wiring connections for various I/O modules. This essential component serves as the interface between field devices and ABB’s automation controllers, ensuring proper signal transmission in industrial environments.

Engineered for durability and ease of use, the TB820V2 features robust spring-clamp terminals that accommodate a wide range of wire sizes (0.2-2.5mm²). Its compact design and DIN rail mounting enable space-efficient installations in control panels and automation cabinets. The base unit’s 500V AC isolation between field and system sides ensures signal integrity in electrically noisy installations.

As part of ABB’s comprehensive I/O solution, the ABB TB820V2 3BSE013208R0001 simplifies wiring management while maintaining the high reliability expected from ABB automation components. It is compatible with various S800 I/O modules, including digital, analog, and communication interfaces.

Detailed Parameter Table

Core Advantages and Technical Highlights

Secure Connection Technology:

The ABB TB820V2 utilizes spring-clamp terminals that provide vibration-resistant connections without requiring periodic retightening. The terminals accept both solid and stranded conductors, offering flexibility for different installation requirements.

Space-Efficient Design:

With its compact dimensions, the base unit optimizes control cabinet space while maintaining excellent accessibility for wiring and maintenance. The clear terminal labeling reduces wiring errors during installation.

Enhanced Safety Features:

The 500V AC isolation between field and system sides prevents electrical interference and ensures safe operation. The terminal cover provides finger-safe protection during live operation.

Durable Construction:

Built to withstand industrial environments, the TB820V2 operates reliably across a wide temperature range (-25°C to +70°C) and resists common contaminants like dust and moisture.

Easy Maintenance:

The tool-less design allows quick wiring modifications without special tools. The transparent cover enables visual inspection of connections without removal.

System Integration:

Designed specifically for ABB’s S800 I/O System, the base unit ensures seamless compatibility with ABB’s automation controllers, including AC 800M and System 800xA platforms.

Typical Application Scenarios

Process Industries:

In oil refineries and chemical plants, the ABB TB820V2 provides reliable termination for field instruments, ensuring accurate signal transmission between sensors and control systems.

Power Generation:

Power plants utilize the terminal base for clean organization of I/O wiring in turbine control systems and switchgear monitoring applications.

Manufacturing:

Automotive production lines employ the TB820V2 for organized wiring of sensors and actuators in robotic workcells and assembly stations.

Water Treatment:

Municipal facilities use the base unit for signal distribution in pump control panels, benefiting from its moisture-resistant design.

Discrete Automation:

The terminal base serves in machine control panels, providing reliable connections for limit switches, pushbuttons, and other field devices.

Installation& Commissioning

Installation Guidelines:

Mount the ABB TB820V2 on a standard 35mm DIN rail, ensuring proper alignment with adjacent modules. Use appropriate wire stripping tools to prepare conductors (0.2-2.5mm²). Maintain minimum bending radius for cables and provide strain relief for field wiring.

Commissioning:

Verify all terminal connections are secure and properly inserted. Check for proper isolation between channels using a megohmmeter if required. Label all wiring according to plant documentation standards before system activation.

Maintenance:

Periodically inspect terminals for proper tension and signs of overheating. Clean dust accumulation using compressed air. Check for signs of corrosion or damage during routine system inspections.

Service & Warranty

ABB provides a 24-month warranty for the TB820V2 3BSE013208R0001, covering manufacturing defects. Global technical support is available through ABB’s network of automation specialists. The product is supported by ABB’s lifecycle management program, with spare parts availability guaranteed for 10 years after product discontinuation.

Conclusion

The ABB TB820V2 3BSE013208R0001 terminal base unit delivers reliable wiring management for industrial automation systems. Its robust construction, secure connection technology, and compatibility with ABB’s S800 I/O System make it an essential component for organized and reliable field wiring in demanding industrial applications. For specific application requirements or technical assistance, consult ABB’s automation experts.
