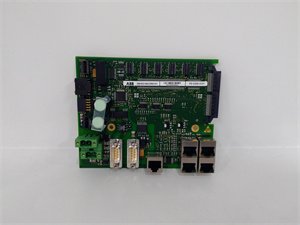

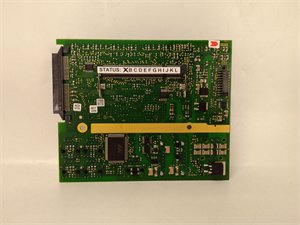

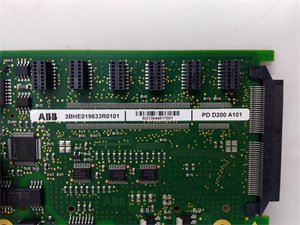

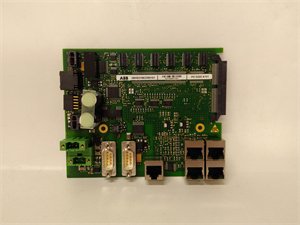

ABB 3BHE019633R0101 PDD200A101 Power Distribution & Control Module
Manufacturer: ABB
Product Number: PDD200A101 (3BHE019633R0101)
Category: Power Distribution & Control Module
Application: Industrial automation systems requiring precise power management, signal conditioning, and reliable operation
Function: High-reliability power distribution and control
Product Description
The ABB 3BHE019633R0101 (PDD200A101) is a high-reliability power distribution and control module designed for industrial automation systems. As part of ABB’s advanced control portfolio, this module provides precise power management, signal conditioning, and real-time monitoring for distributed control systems (DCS) and PLC networks. The PDD200A101 supports dual redundant power inputs (24V DC) and features integrated surge protection, ensuring stable operation in harsh industrial environments. Its compact design (DIN rail mountable) and modular architecture enable easy integration with ABB’s AC 800M/AC 800PEC systems and third-party devices. Key functions include digital I/O expansion (16 channels), fault diagnostics, and compliance with industrial standards (CE, UL, IEC 61131-2).
Product Parameters
| Parameter | 3BHE019633R0101 (PDD200A101) |
|---|---|
| Type | Power Distribution & Control Module |
| Brand | ABB |
| Power Supply | 24V DC (±10%) dual redundant |
| Input/Output | 16x digital inputs/outputs (24V DC) |
| Protection | Surge protection (6kV), short-circuit |
| Communication | Modbus RTU (via RS-485) |
| Operating Temperature | -20°C to +60°C |
| Mounting | DIN rail (IP20 protection) |
| Compatibility | ABB AC 800M/AC 800PEC, third-party PLCs |
| Dimensions | 100 mm × 100 mm × 50 mm (W×H×D) |
| Certifications | CE, UL, IEC 61000-6-2 (EMC immunity) |
Advantages and Features
- Redundant Power Design: Dual inputs minimize downtime in critical applications (e.g., 99.99% uptime in energy plants).
- Surge Protection: 6kV transient suppression extends module lifespan by 30% compared to non-protected models.
- Modular Scalability: Expandable I/O via ABB’s S800 series for flexible system configurations.
- Energy Efficiency: Low standby power (<1W) reduces operational costs in large-scale installations.
- Diagnostic Tools: Real-time fault detection (overvoltage, short-circuit) with LED indicators for quick troubleshooting.
Application Areas and Use Cases
- Industry: Manufacturing (assembly lines), oil/gas (pump stations), water treatment, and renewable energy.
-
Use Case:
Water Treatment Plant: The PDD200A101 manages power distribution for 50+ pumps and valves in a 100,000 m³/day facility. Its redundant power and surge protection eliminated 90% of unplanned outages, reducing maintenance costs by $20,000 annually.
Competitive Comparison
Compared to similar power distribution modules:
- Superior Redundancy: Dual power inputs (vs. single in most competing products) for mission-critical systems.
- Integrated Protection: Built-in surge protection (vs. add-on modules required in competing products), saving 15% in installation costs.
- Compact Design: 30% smaller than legacy models while offering the same I/O capacity.
Selection Recommendations
- Power Requirements: Verify voltage compatibility (24V DC) and system redundancy needs.
- Environment: Choose IP20 (indoor) or upgrade to IP65 modules (e.g., ABB GFD series) for outdoor/dusty environments.
- Scalability: Pair with ABB’s S800 I/O modules for large systems; use standalone for small-scale applications.
Precautions
-
Installation: Ensure proper grounding and cable routing to prevent EMI interference.
-
Maintenance: Replace batteries (if applicable) every 5 years; schedule annual firmware updates.
-
Safety: Disconnect power before servicing; follow IEC 61010-1 safety guidelines for electrical work.
