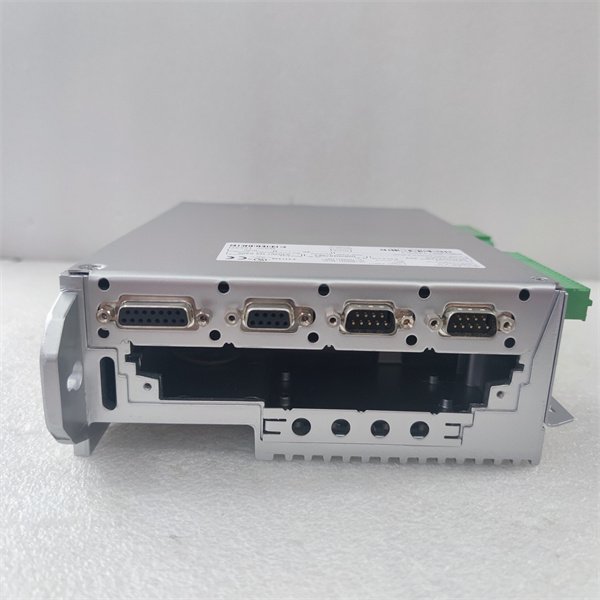

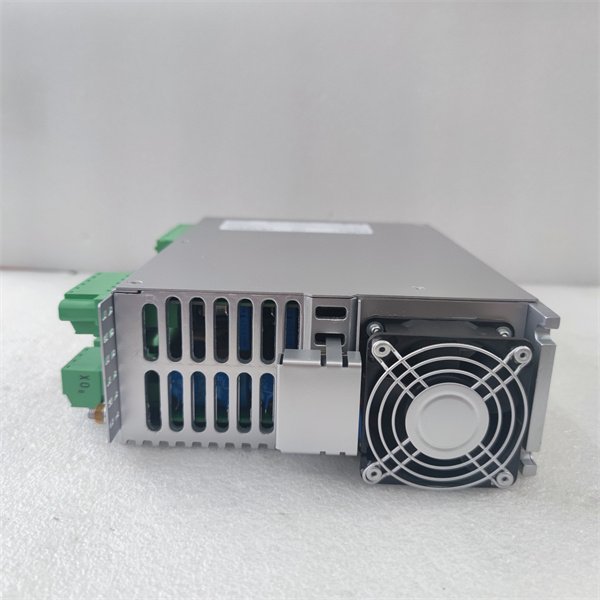

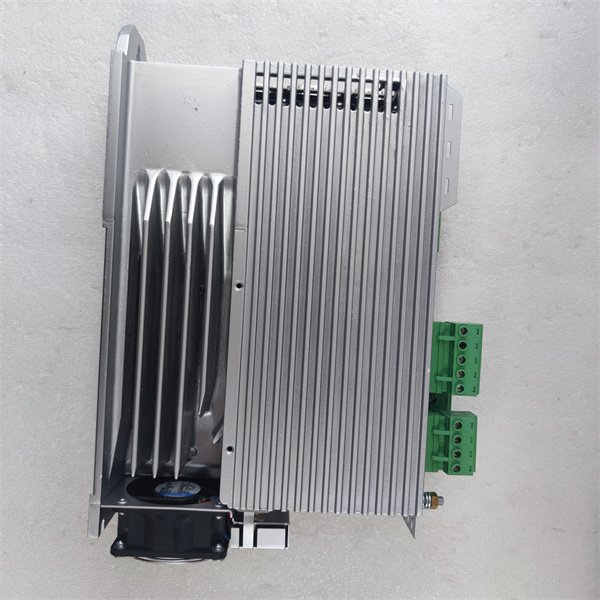

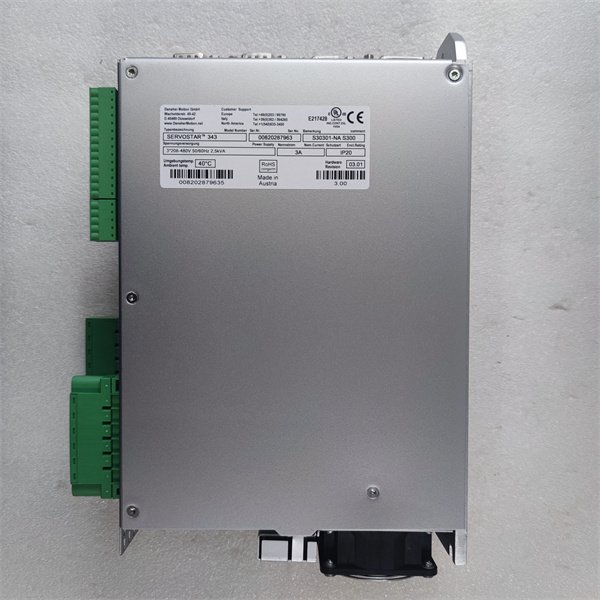

Kollmorgen S30301-NA S300 DANAHER Servo Drive
Manufacturer: Kollmorgen (Danaher)
Product Number: S30301-NA (S300)
Category: Digital Servo Drive
Series: S300 series
Application: Precision motion control applications requiring robust power handling and sophisticated control algorithms
Product Description
The Kollmorgen S30301-NA from the S300 Danaher series represents a high-performance digital servo drive designed for precision motion control applications. This advanced drive combines robust power handling with sophisticated control algorithms to deliver exceptional performance in industrial automation systems.
As part of Kollmorgen’s legacy Danaher Motion product line, the S30301-NA maintains the renowned reliability and performance characteristics that made the S300 series an industry standard. The drive offers seamless integration with a wide range of servo motors while providing the flexibility needed for complex motion applications.
Technical Specifications
| Parameter | Specification |
| Model Number | S30301-NA |
| Series | S300 Danaher |
| Input Voltage | 200-480VAC, 3-phase |
| Output Current | 30A continuous, 60A peak |
| Power Rating | 7.5kW |
| Control Modes | Torque, Velocity, Position |
| Feedback Options | Encoder, Resolver, Hall |
| Communication | Analog ±10V, Step/Direction, RS-232 |
| Switching Frequency | 8kHz (standard) |
| Protection Class | IP20 |
| Operating Temperature | 0°C to 55°C |
| Dimensions (W×H×D) | 150 × 220 × 60 mm |
| Weight | 2.1 kg |
Key Features & Benefits
Advanced Motion Control
- Triple-loop control (position, velocity, torque) for precision motion
- Auto-tuning algorithms for optimal servo performance
- Advanced vibration suppression technology
- S-curve acceleration for smooth motion profiles
Robust Power Architecture
- 30A continuous/60A peak current output
- Regenerative braking capability
- Dynamic stiffness adjustment for varying loads
- Overload protection with automatic recovery
Flexible Integration
- Multiple command interfaces (Analog, Step/Dir, RS-232)
- Compatible with Danaher/Kollmorgen motors
- Programmable I/O (4 inputs, 2 outputs)
- Electronic gearing and camming functions
System Diagnostics
- Comprehensive fault monitoring system
- Real-time performance tracking
- Waveform capture for troubleshooting
- LED status indicators for quick diagnostics
Typical Applications
Industrial robotics
Machine tool axes
Packaging machinery
Material handling systems
Printing and converting equipment
Test and measurement systems
Compatible Products
Danaher S600/S700 series motors
Kollmorgen AKM servo motors
TBM series frameless motors
MCH brushless motors
Kollmorgen AKD compatible drives
Installation & Maintenance
Electrical Installation:
- Requires proper 3-phase power connection
- Must be installed in IP20 or better enclosure
- Ensure proper grounding and shielding
- Follow specified cable routing guidelines
Configuration:
- Use WorkBench software for setup
- Perform auto-tuning with connected motor
- Configure I/O and safety functions
- Set motion profile parameters
Maintenance:
- Regularly check cooling fans
- Monitor DC bus capacitors
- Inspect power connections
- Update firmware as needed
Quality Assurance
The S30301-NA is backed by Kollmorgen’s 18-month warranty, covering manufacturing defects. The drive undergoes extensive testing to ensure reliable operation in industrial environments. For technical support, contact Kollmorgen’s global service network with the drive’s serial number and application details.
Note: This product is part of Kollmorgen’s legacy Danaher Motion series. For new installations, consider Kollmorgen’s AKD2G series as a modern alternative with enhanced features.
