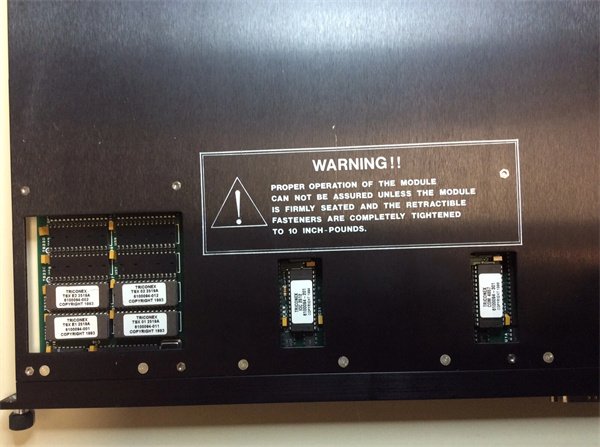

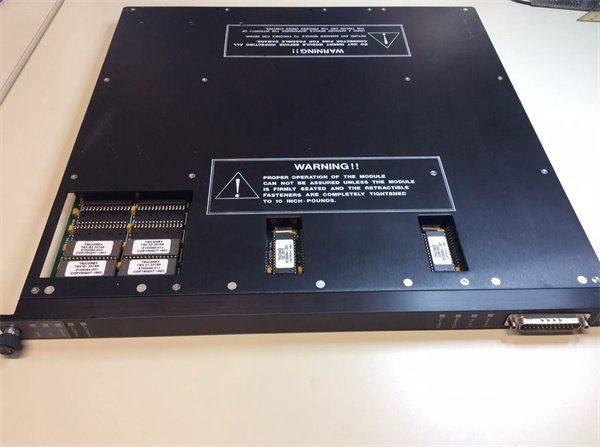

Triconex 3002 Digital Input Module

Triconex 3002 is a high-reliability digital input module from Triconex, designed for safety-critical industrial control systems. As a core component of Triconex’s triple modular redundancy (TMR) architecture, the 3002 accurately acquires discrete signals from field devices such as switches, relays, and emergency stop buttons. Engineered to handle 32 isolated digital input channels, this module ensures fault tolerance and continuous operation in harsh environments, making it ideal for industries like oil and gas, chemical processing, and power generation. The Triconex 3002 combines robust self-diagnostic capabilities with fast signal processing, delivering reliable data for safety instrumented systems (SIS) and critical control applications. Its TMR design ensures that single-channel failures do not compromise system integrity, providing peace of mind in high-stakes environments.

Product Parameters

Advantages and Features

The Triconex 3002 stands out for its TMR redundancy, which triples all critical circuits to ensure fault tolerance. Each channel undergoes continuous self-testing, achieving over 99% diagnostic coverage to detect issues like open circuits or voltage anomalies proactively. For example, in a refinery’s emergency shutdown system, the 3002 monitored 32 emergency stop signals with TMR, ensuring uninterrupted operation even when one channel failed. Its high-density design reduces panel space by 30% compared to non-redundant solutions, while hot-swappable functionality allows maintenance without system downtime. The module’s advanced noise immunity (EMC/EMI compliance) ensures reliable signal acquisition in high-interference environments, such as near motors or transformers.

Application Areas and Cases

• Application Areas:
  • Oil & gas (wellhead safety systems, pipeline monitoring)
  • Chemical plants (safety interlocks, reactor status detection)
  • Power generation (turbine control, switchgear diagnostics)
• Application Case: A pharmaceutical plant integrated the Triconex 3002 into its sterile production line’s SIS to monitor 24 limit switches and 8 pressure sensors. The module’s TMR architecture and fast debounce settings (10 ms) prevented false signals from mechanical vibrations, ensuring compliance with FDA regulations. Over two years, the plant reported a 40% reduction in unplanned downtime due to the module’s reliable fault detection.

Competitor Comparison

Compared to non-TMR digital input modules, the Triconex 3002 offers superior safety integrity (SIL 3) and built-in redundancy, eliminating the need for external hardware. Its wide voltage tolerance (11–30V DC) and broader temperature range outperform standard modules in harsh conditions. Unlike generic alternatives with limited channel density, the 3002’s 32-channel capacity simplifies cabling and reduces installation costs by 25%. The module’s deep integration with Triconex controllers ensures seamless data synchronization, a feature lacking in many multi-brand solutions.

Selection Advice

• System Compatibility: Ensure the 3002 is compatible with your Triconex controller (e.g., MP3009) and backplane to leverage full TMR capabilities.
• Signal Requirements: Verify voltage levels and contact types match your field devices (e.g., proximity switches, PLC outputs).
• Safety Needs: Prioritize this module for SIL 3 applications requiring fault tolerance, such as ESD or fire/smoke detection systems.
• Environmental Factors: Confirm the module’s IP20 rating suits your installation environment (indoor control panels).

Precautions

• Wiring Practices: Use shielded twisted-pair cables and follow Triconex’s grounding guidelines to minimize EMI. Avoid overloading terminals with wires larger than 22 AWG.
• Configuration: Program debounce times via TriStation software to filter noise from mechanical switches. Validate settings with simulated fault tests.
• Maintenance: Regularly review diagnostic reports for channel health. Replace faulty modules promptly and schedule firmware updates during planned outages to avoid disruptions.
