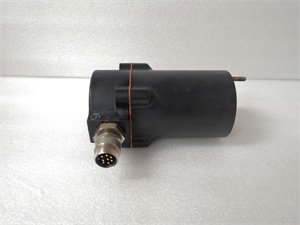

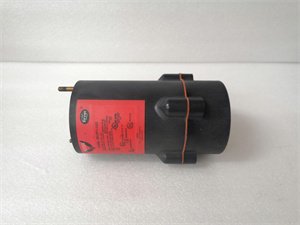

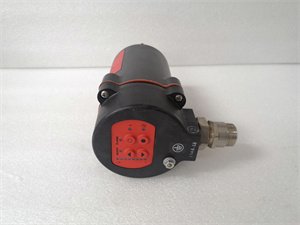

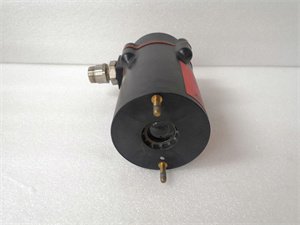

FIREYE 85UVF1-1QD Flame Detection Module
Manufacturer: Fireye
Product Number: 85UVF1-1QD
Category: UV Flame Detection Module
Spectral Sensitivity: 185-260 nm (UV)
Supply Voltage: 24 V DC
Output Signal: Flame relay (SPDT), 4-20 mA
Response Time: <3 seconds
Operating Temperature: -40°C to +70°C
Protection Rating: NEMA 4, IP65
Self-Check: Automatic optical integrity test
Product Description
The FIREYE 85UVF1-1QD is a high-performance UV flame detection module designed for industrial safety applications. It utilizes advanced UV detection technology to quickly and reliably detect flames, ensuring prompt response to fire hazards.
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | FIREYE 85UVF1-1QD |
| Manufacturer | FIREYE |
| Product category | Flame Detection Module |
| Operating Voltage | 24 V DC |
| Detection Method | Ultraviolet (UV) |
| Detection Range | Up to 30 feet (9 meters) |
| Detection Angle | 80° |
| Response Time | < 5 seconds |
| Operating Temperature Range | -40°C to +82°C |
| Humidity Range | 0% to 95% RH (non-condensing) |
| Certifications | UL, CSA, CE |
| Mounting | Wall-mounted |
| Cable Length | 5 meters (QD model) |
| Output Signal | Standard 4-20 mA flame intensity signal |
| Housing Material | Engineered material – GE Valox |
| Weight | Approximately 1.5 kg |
| Dimensions | Not specified, but typical for this series |
Core Advantages and Technical Highlights
High-Speed Detection
The FIREYE 85UVF1-1QD features a fast response time of less than 5 seconds, ensuring quick detection and response to flame events.
Robust Design
Constructed with high-quality materials, the module is designed to withstand harsh industrial conditions. It features an IP67 environmental rating, protecting against dust and water ingress.
Self-Check Functionality
The FIREYE 85UVF1-1QD includes a self-check feature that continuously monitors the UV sensor to ensure reliable operation, even in extreme conditions.
Wide Detection Range
With a detection range of up to 30 feet (9 meters), the FIREYE 85UVF1-1QD is suitable for large-scale industrial applications where comprehensive coverage is essential.
Typical Application Scenarios
The FIREYE 85UVF1-1QD is widely used in industries requiring high reliability and precision, such as:
-
Oil & Gas: Ensuring safe and efficient operation in refineries and drilling platforms.
-
Power Generation: Real-time monitoring of turbines and generating units.
-
Manufacturing: Controlling production lines and robotic systems.
-
Chemical Processing: Monitoring and controlling hazardous processes in chemical plants.
Installation, Commissioning and Maintenance Instructions
Installation Preparation
Before installing the FIREYE 85UVF1-1QD, ensure the environment is free from excessive dust and moisture. Verify that the power supply matches the module’s requirements (24 V DC) and that the operating temperature range (-40°C to +82°C) is suitable for the installation location.
Maintenance Suggestions
Regular maintenance is crucial for extending the lifespan of the FIREYE 85UVF1-1QD. Perform routine inspections to check for loose connections or signs of wear. Clean the module periodically to prevent dust buildup and monitor its operation to detect any potential issues early.
Service and Guarantee Commitment
The FIREYE 85UVF1-1QD is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. FIREYE is committed to providing exceptional after-sales service, with a dedicated technical support team available to assist with any issues or inquiries.
