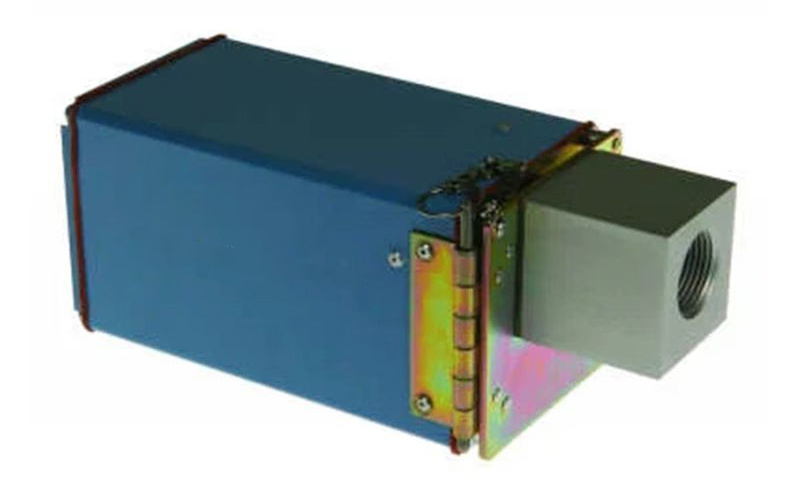

The Honeywell C7076A1007 is a high-performance ultraviolet (UV) flame detector. Engineers use it in burner management and flame safety systems. It detects UV radiation from gas, oil, and pulverized coal flames. The detector ensures accurate flame discrimination and continuous system reliability.

Technical Specifications

• Product Type: Ultraviolet Flame Detector
• Model Number: C7076A1007
• Manufacturer: Honeywell
• Sensitivity: Adjustable with two sensitivity points
• Dynamic Range: 400:1
• Flame Signal Meter Jack: Integrated for sighting accuracy
• Compatible Amplifiers: R7476A, R7886 (Dynamic Self-Check)
• Self-Check: Dynamic self-checking ensures reliable operation
• Mounting: 1-inch NPT standard thread
• Housing Type: Standard (use C7076D for explosion-proof areas)
• Line Voltage: 100–240V AC
• Operating Voltage: 110–120V AC, 60 Hz
• Frequency: 50/60 Hz
• Power Consumption: 7W
• Ambient Operating Temperature: -40°F to +160°F (-40°C to +71°C)
• Max Aspirator Temperature: 225°F (107°C)
