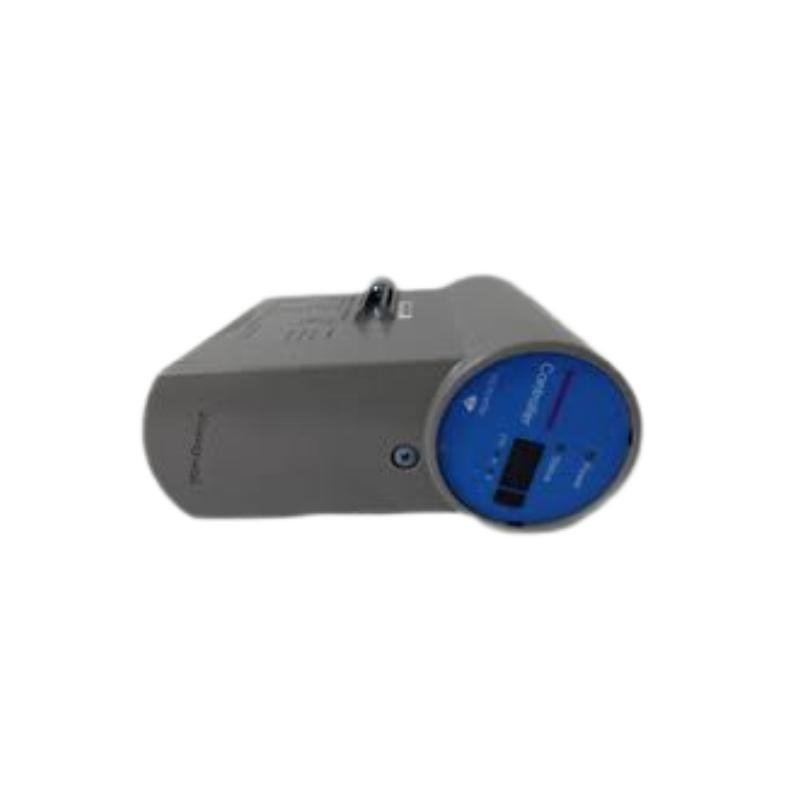

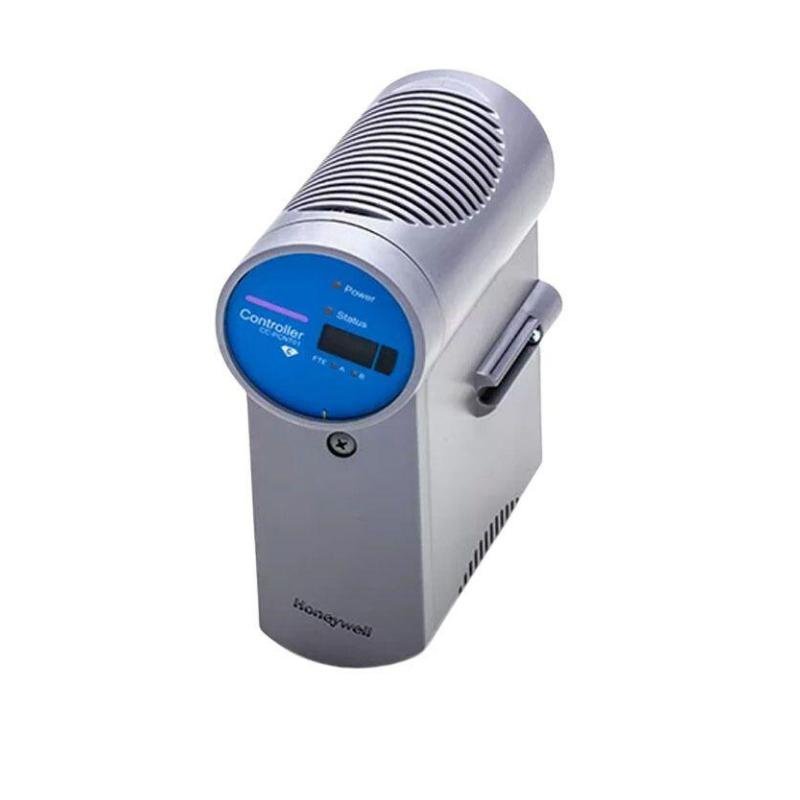

Honeywell CC-PCNT02 51454551-275 C300 Controller Module

The Honeywell C300 Controller Module CC-PCNT02 is a robust and high-performance process automation controller designed for critical control applications. As the latest model replacing the CC-PCNT01, this controller offers enhanced functionality, making it ideal for both new installations and field replacements. The C300 controller is specifically engineered for complex industrial environments and is widely used in sectors like petrochemical, oil & gas, chemical processing, and power generation.

The C300 controller module integrates seamlessly into Honeywell’s Control Firewall (CF9) network architecture, allowing for the connection of up to four C300 controllers over Ethernet. With extended functionality, it supports advanced features such as the Profit Controller Integration and External Input Modules (EIM). The CC-PCNT02 is a key component in optimizing system performance, reliability, and operational efficiency.

Key Features

1. Extended Functionality Firmware: The CC-PCNT02 comes with firmware designed for extended functionality, including support for external input modules (EIM) and Profit Controller integration.
2. Network Aggregation: The C300 controllers are connected over the Control Firewall (CF9), which acts as a network aggregator for enhanced network security and management.
3. Ethernet Connectivity: The C300 can be interconnected using Ethernet, facilitating communication between multiple controllers within the network.
4. Field Replacement: The CC-PCNT02 is designed for easy field replacement of its predecessor, CC-PCNT01, ensuring minimal downtime during upgrades.
5. Comprehensive System Integration: Enables integration with other Honeywell systems for efficient monitoring and control of complex industrial processes.

Technical Specifications

Table 1: Dimensions & Weight

Table 2: General Information

Table 3: Electrical Specifications

Table 4: Communication Protocols

Industry Applications

The Honeywell CC-PCNT02 C300 Controller Module is designed for critical applications where precision control and integration across multiple systems are required. It is commonly used in the following industries:

1. Oil & Gas: For monitoring and controlling drilling rigs, refineries, and other oil & gas processes.
2. Chemical Processing: Provides reliable and accurate control for chemical manufacturing plants, ensuring safe and efficient operations.
3. Power Generation: Ideal for controlling power plants, ensuring optimal performance and integration with other control systems.
4. Petrochemicals: Used in petrochemical refineries for managing complex processes and improving operational efficiency.

Mining and Metals: Controls the automation systems in mining operations, improving both safety and productivity.
